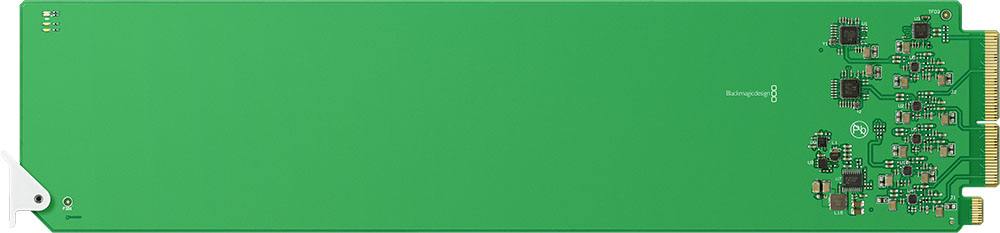

Blackmagic OpenGear Converter - SDI Distribution - CONVOPENGSDIDA

Blackmagic Design OpenGear Converter - SDI Distribution - BMD-CONVOPENGSDIDA

Price: $495.00

MSRP: $495.00

Discontinued

As low as .

Click for details on equipment financing.

Estimate Shipping

Make an Offer

Rack Mount Card SDI Converter
1 Input/9 Outputs / SD/HD/2K/3G Support
16 Channels of Embedded Audio
Sits on 2 Slots of 20-Slot 2RU Frames
Hot Swappable
Re-Clocking Distribution
Supports ASI and Ancillary Data

Item # BMD-CONVOPENGSDIDA

Mfr # CONVOPENGSDIDA

UPC # 9338716001426

BA # BLOGCSDID

AS # B0088WQHSQ

AD # BMOGCSDID

Blackmagic OpenGear Converter - SDI Distribution

When needing to send the same signal to several devices at once, OpenGear Converter SDI Distribution handles the task perfectly. Supports all SD and HD video formats up to 1080p60. OpenGear Converter SDI Distribution also handles ASI. Beyond that, it is compatible with ancillary data and embedded audio.

Blackmagic OpenGear Converter - SDI Distribution

Connections

SDI Video Input
Switchable between SD, HD and 3G-SDI.

SDI Video Output
9 outputs automatically match the SDI video input.

Multi Rate Support
Auto detection of SD, HD and Level B 3G-SDI inputs.

Reclocking
Yes

Standards

SD Format Support
525i59.97 NTSC, 625i25 PAL

HD Format Support
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Format Support
1080p29.98, 1080p24, 1080p25
1080PsF23.98, 1080PsF24, 1080PsF25

SDI Compliance
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M

SDI Video Rates
SDI video connections are switchable between standard definition and high definition.

SDI Video Sampling
4:2:2 and 4:4:4

SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.

SDI Color Precision
4:2:2 and 4:4:4

SDI Color Space
YUV and RGB

SDI Auto Switching
Automatically selects between SD, HD and 3G-SDI.

ASI Support
Yes

Operating Systems

Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Windows 8.1 or Windows 10.

Physical Specifications

Environmental Specifications

Operating Temperature
5˚ to 40˚ C (32˚ to 104˚ F)

Storage Temperature
-20˚ to 45˚ C (-4˚ to 113˚ F)

Relative Humidity
0% to 90% non-condensing

Blackmagic OpenGear Converter - SDI Distribution

What's Included	OpenGear Converter SDI Distribution . SD card with software and manual. Double width rear connector.
Warranty	3 Year Limited Manufacturer's Warranty.
