Atomos Shinobi 7 Monitor
The Atomos Shinobi 7 is a professional on‑camera monitoring powerhouse, combining a stunning 7" HDR touchscreen with lightweight portability. Its 1920 × 1200 10‑bit FRC IPS panel delivers broadcast‑quality color and clarity, while the calibrated 2200 cd/m² peak brightness ensures visibility even in direct sunlight. Designed for cinematographers, DPs, focus pullers, and switchers, the Shinobi 7 brings big‑screen monitoring to any production environment.

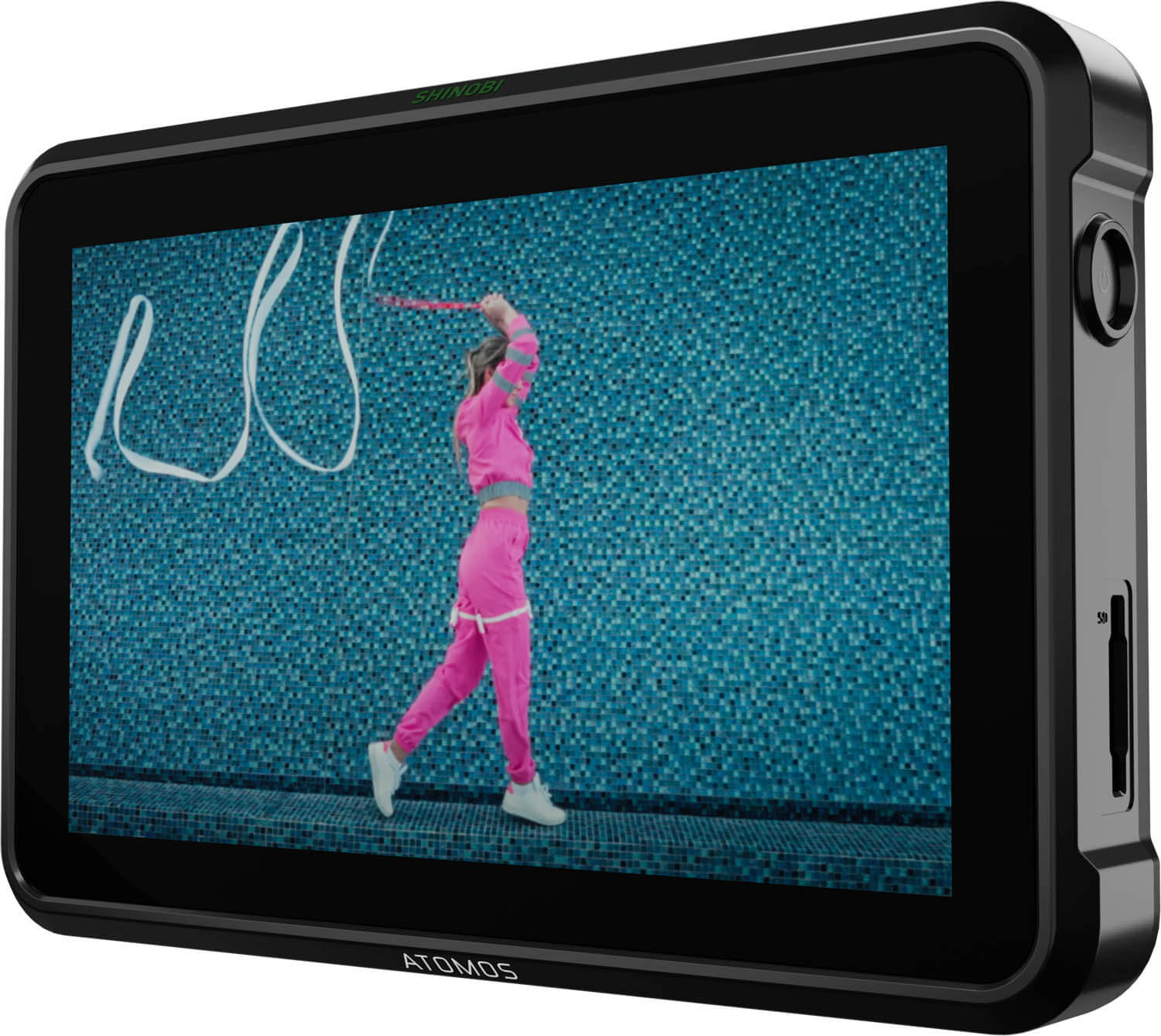

Featuring AtomHDR technology, the Shinobi 7 accurately renders over 10 stops of dynamic range straight from Log/PQ/HLG camera outputs. You can preview your scene in real time without LUTs, then load up to eight custom 3D LUTs via the SD card slot for downstream confidence monitoring. Factory‑calibrated and user‑field calibration ready, the display maintains precise Rec.709 and HDR color fidelity throughout the shoot.

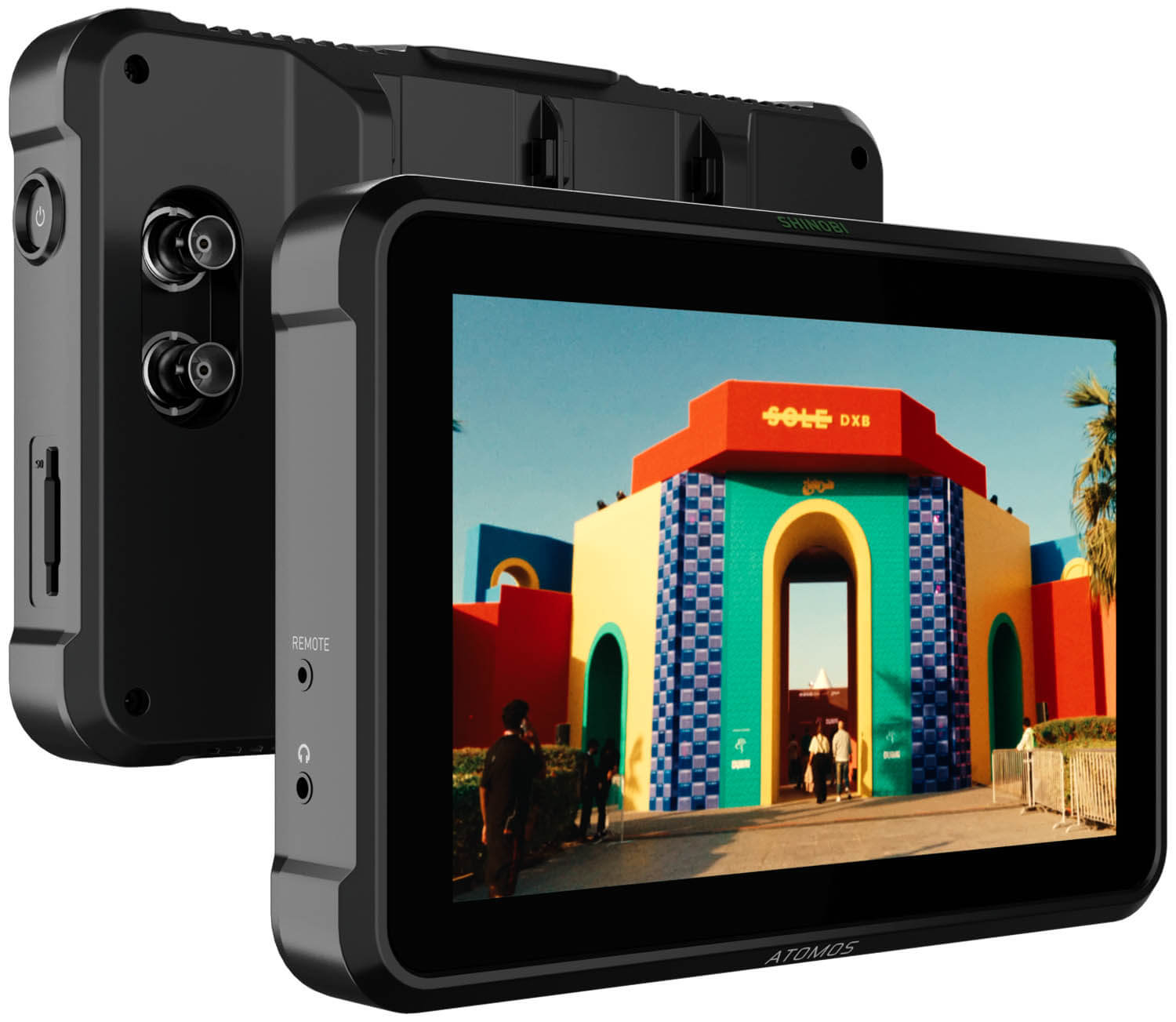

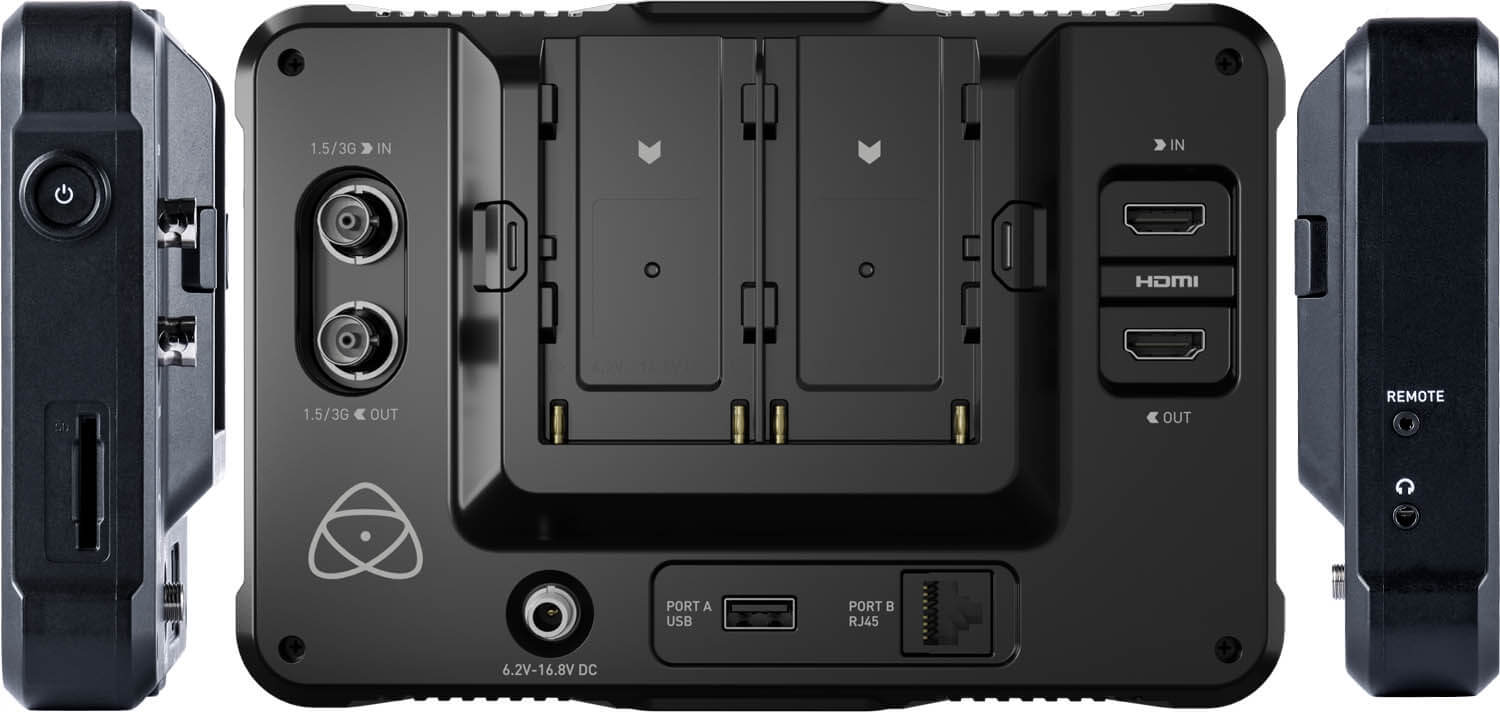

Connectivity is exhaustive and future‑proof. HDMI 2.0 input and loop output support 4Kp60 signals, while 3G‑SDI input and loop output handle 2Kp60 workflows with full cross‑conversion. A 2.5 mm camera control port currently supports Z Cam E2 series via optional cable, and built‑in USB‑C and RJ45 ports pave the way for firmware upgrades and new touchscreen control features down the line.

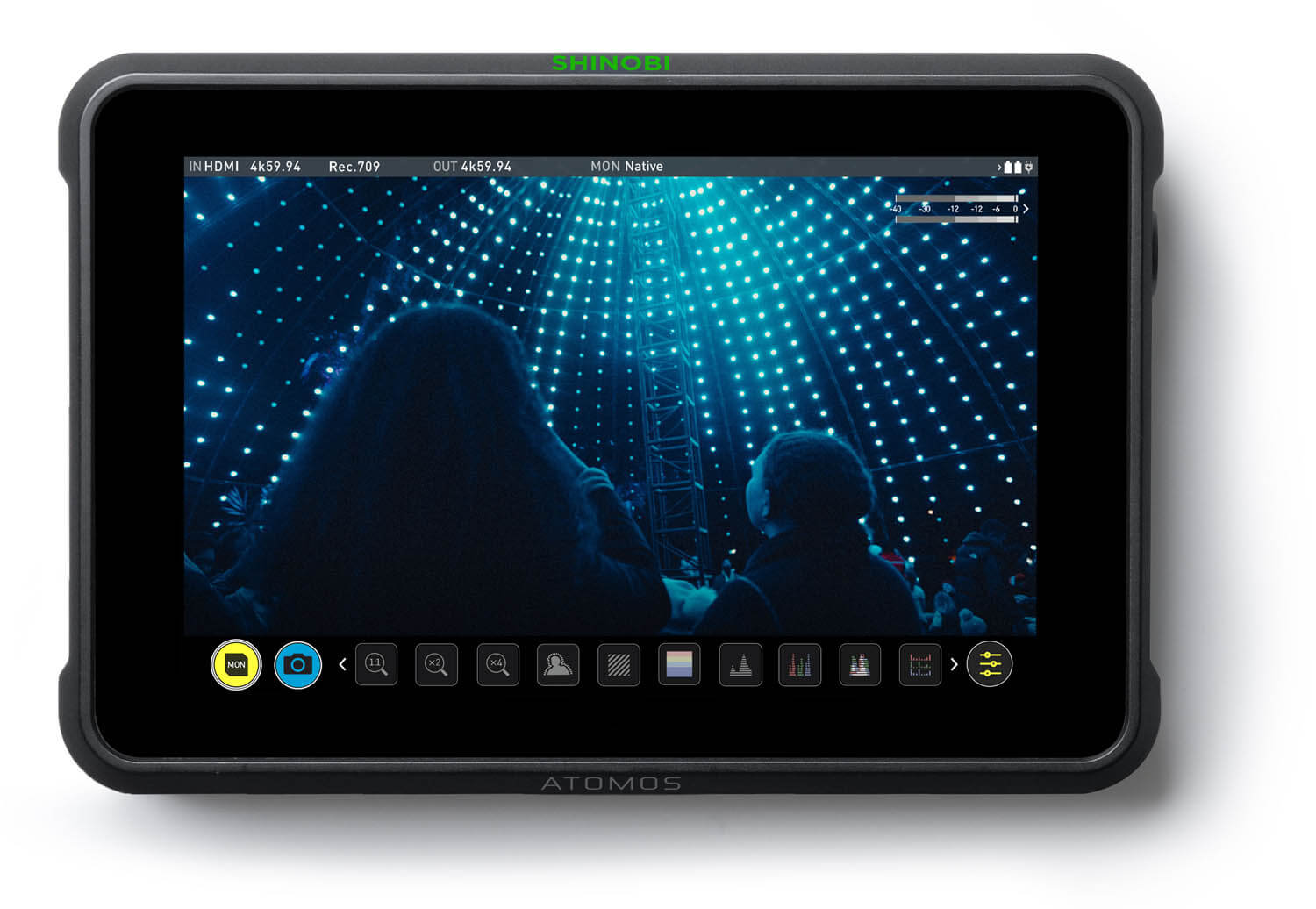

AtomOS powers an intuitive monitoring suite with multi‑scope views and one‑touch tools. Focus Peaking, False Color, Anamorphic De‑squeeze, Frame Guides, SMPTE Safe Areas, Waveform, RGB Parade, Vectorscope, Histogram, and Zebra overlays are all instantly accessible. A flexible “Analysis” mode lets you overlay scopes on the image for comprehensive exposure and color checks in a single glance.
Power options include dual L‑series battery slots for hot‑swap operation and a dedicated locking DC input for mains or V‑lock setups. The rigid, yet feather‑light chassis clamps securely to any camera rig without adding bulk, and a clip‑on sunshade reduces glare for critical focus and exposure adjustments under bright skies.
Built to withstand professional workflows, the Atomos Shinobi 7 runs on industry‑standard Atomos firmware and supports popular Log formats from ARRI, Canon, Panasonic, RED, Sony, and more. Whether you’re live‑streaming, multi‑camera switching, or capturing high‑end drama, the Shinobi 7 delivers rock‑solid, HDR‑capable monitoring that future‑proofs your productions.
