Dimensions (W × H × D)

198 × 133 × 40 mm / 7.8" × 5.2" × 1.57"

Weight

730g / 1.6lbs

Mounting Points

Top: 1x ¼"‑20 or ⅜" with anti‑rotational points
Bottom: 1x ¼"‑20 or ⅜" with anti‑rotational points
Right: 1x ¼"‑20 or ⅜" with anti‑rotational points

Ambient operating temperature

Up to 40°C

Body

Aluminium alloy chassis with ABS polycarbonate rear enclosure

Cooling

Heat sink + actively controlled fan

Tally light

LED on the rear of the device

Multi‑Function Button

Power / Lock Screen

Touch Screen

Capacitive touch

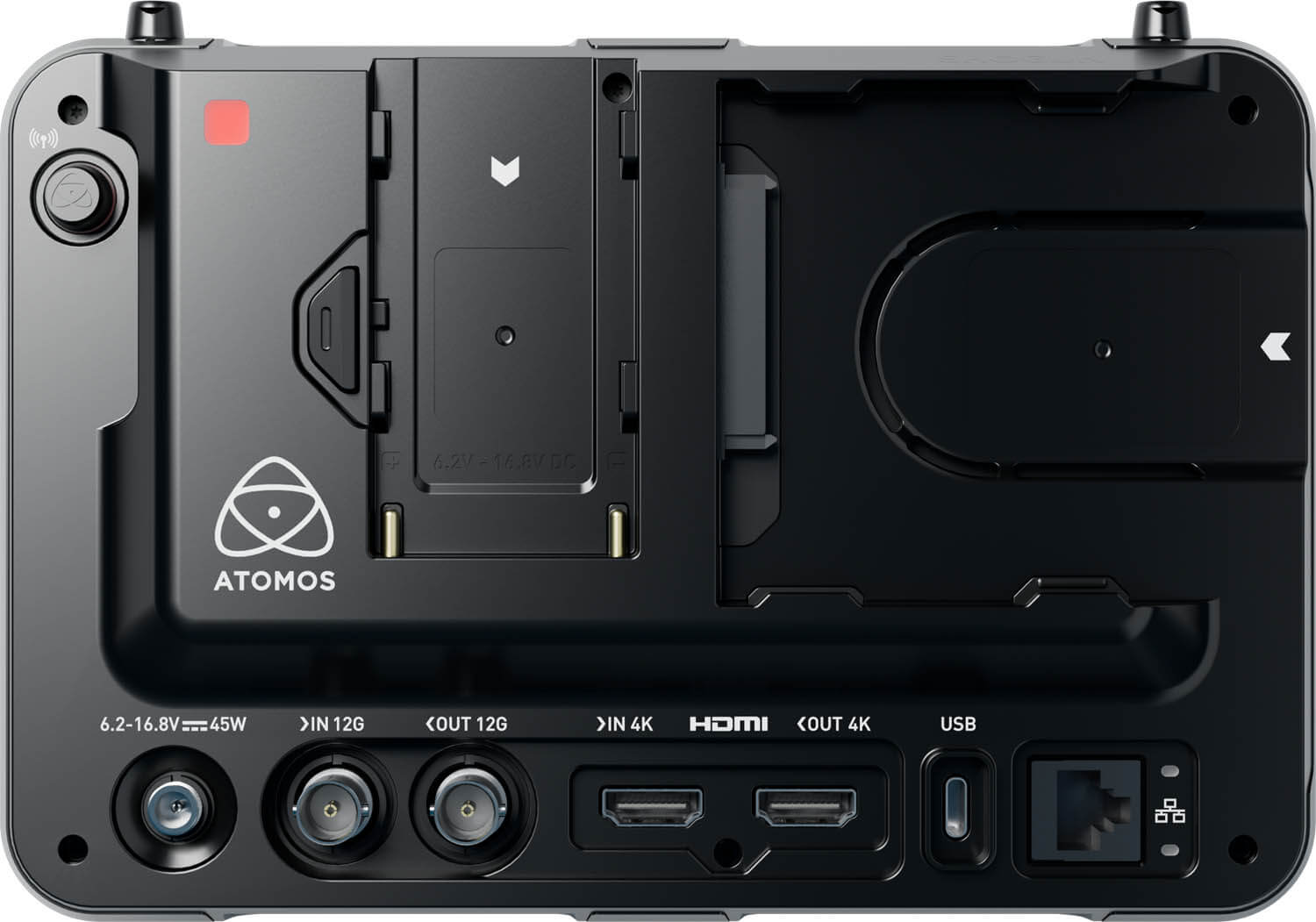

Input Voltage

6.2 V to 16.8 V

Compatible Batteries

1 × NP‑F / L‑Series

DC‑In Connector

Locking DC jack (5.5 mm OD & 2.1 mm ID)

D‑Tap

Via optional D‑Tap to DC‑Barrel cable

Fan Control

Low, Medium, Auto / Turbo Cool / Dim Display

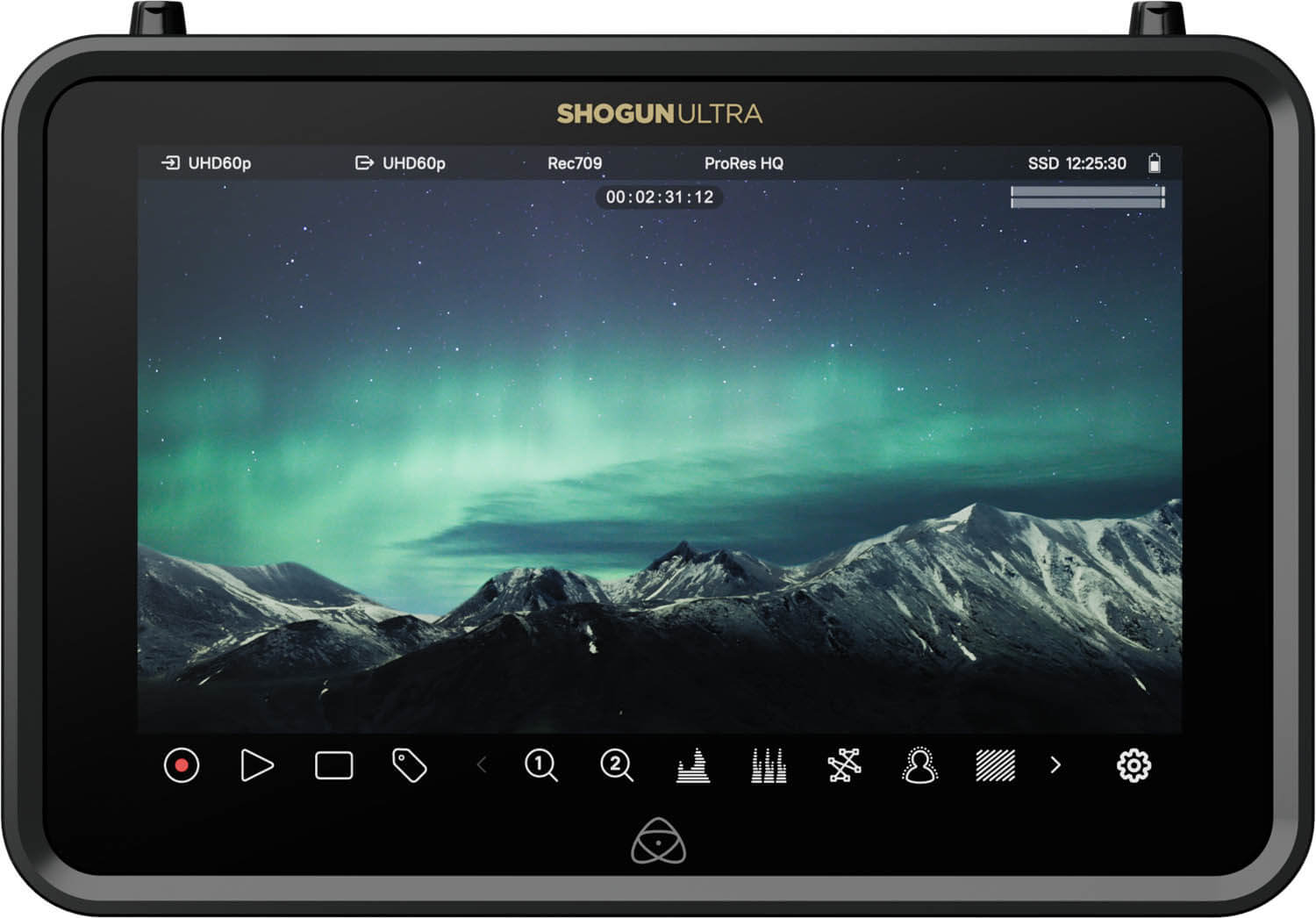

Display Panel

SuperAtom IPS panel (capacitive touch)

Size

7″

Resolution

1920 × 1200 (1920 × 1080 image display)

Viewing Angle

178° H & V

PPI

325

Bit-Depth

10‑bit (8 + 2 FRC)

Backlight Type

Edge‑lit

Brightness (cd/m² / nits)

2000 ± 10%

Aspect Ratio

16:10 (16:9 image display)

Color Gamut

Rec.709

Calibration Support

ATOMOS Calibrator with Calibrite ColorChecker Display Pro or Display Plus

Gamma

S‑Log / S‑Log2 / S‑Log3; C‑Log / C‑Log2 / C‑Log3; Arri Log CEI variants; Arri LogC4; Panasonic V‑Log; JVC J‑Log1; RED LogFilm / Log3G; FujiFilm F‑Log; PQ (HDR10); HLG; Nikon N‑Log; Z CAM Z‑Log2; Olympus OM‑Log400 / Flat; Leica L‑Log

Gamut

BT.2020; DCI P3; PDCI P3 65; Sony SGamut variants; Canon Cinema / DCI P3+; Panasonic V Gamut; Arri Alexa Wide; JVC LS300; RED DragonColor variants

3D LUT Display

.Cube format (17 & 33 points supported)

3D LUT Output

Loop out

3D LUT 50/50

Via Compare option in LUTs menu

Monitoring Modes

Native / 709 / HLG / PQ / 3D LUT

HDR Output Conversion

HLG / PQ

Calibration

ATOMOS Calibrator with Calibrite ColorChecker Display Pro or Display Plus

Display Controls

Backlight, Lift, Gamma, Gain

AtomHDR

Built‑in Technical Log to HDR EOTF

3D LUTs

Load .Cube files from SSD into 8 slots on‑device – for monitoring, optional bake into recordings, or apply to HDMI/SDI output

Legalize

Full-to-legal range conversion via input menu

HDMI

1 × HDMI 2.0

SDI

1 × 12G SDI

Bit Depth

8 / 10‑bit for video; up to 12‑bit for RAW

Chroma Subsampling

YCbCr 4:2:0 & 4:2:2

HDR

HDMI auto detection

Metadata

White balance, exposure index, shutter speed/angle, iris/F-stop, ISO, gamma, gamut

File Naming Standard

Scene/Shot/Take & rolling Scene/Shot/Take

File Naming via SDI

Auto-matched filenames from supported Arri, Canon, RED & Sony cameras

HDMI

1 × HDMI 2.0

SDI Loop/Play Out

1 × 12G SDI

Chroma Subsampling

4:2:2

Bit Depth

10‑bit

HDR

Yes (auto detection)

Ethernet

1 GbE via RJ45

Wi‑Fi

Wi‑Fi 6E

Wireless RF

AirGlu™ SYNC timecode network

Atomos Cloud

Capture to Cloud (AtomosEdit, Frame.io, Sony CI Media), Live stream (RTMP)

Cellular

Connect to hotspot via Wi‑Fi

Web Streaming

RTMP/RTMPS via AtomOS

HDMI → SDI

Supported

SDI → HDMI

Supported

Audio Quality

24‑bit/48 kHz

Audio Codec

PCM

HDMI

8 ch 24‑bit, input dependent

SDI

12 ch 24‑bit, input dependent

Analog In

3.5 mm jack

Analog Out

3.5 mm headphone jack

Audio Input Delay

Frame delay on analog input + automatic offset calibration

HDMI Embedded

Supported

SDI Embedded

Supported

Time of Day

Supported

Wireless SYNC

AirGlu™ SYNC network

RF Network Range

300 m

RF Frequency

Region dependent

RF Channels

12 per region

RF Clients

Region dependent

Bluetooth Range

10‑15 m (line of sight)

Bluetooth Clients

2 clients

8K RAW

Up to 8Kp30 via HDMI

6K RAW

Up to 6Kp60 via HDMI & 6Kp30 via SDI

4K RAW

Up to 4Kp120 via HDMI/SDI

3.5K Anamorphic RAW

Up to 3.5Kp60 via HDMI

2K RAW

Up to 2Kp240 via SDI

4K DCI

Up to 4Kp60

4K UHD

Up to UHDp60

2K DCI 2048 × 1080

Up to 2Kp60 via SDI

FHD 1080p

Up to 1080p120

FHD 1080 PsF

Only via pulldown to progressive

FHD 1080i

1080i50 / 60

720p

Up to 720p60

Apple ProRes RAW

ProRes RAW & RAW HQ

Apple ProRes

HQ, 422, LT

Avid DNxHD

220x, 220, 145, 36 (MOV; MXF support soon)

Avid DNxHR

HQX, HQ, SQ, LB (MOV; MXF support soon)

H.265

XQ, HQ, MQ, LQ (MOV)

Camera to Cloud (H.265 upload to cloud services)

Simultaneous proxy recording (ProRes/DNx + H.265)

Pre-roll recording (8 s HD / 2 s 4K – ProRes & DNx only)

Timelapse supported

Gang control via AirGlu™ SYNC network

Scheduled recording at specified time or after elapsed time

Playback playlists, loop with custom in/out markers

Scheduled playback at specified time or after elapsed time

Master Caddy I

Not supported

Master Caddy II

Supported

Master Caddy III

Supported

SSDmini

Supported

CFast 2.0

Supported via optional AtomX CFast 2.0 adapter

File System

exFAT

Interface

SATA 3.0

Capture to Cloud

Via Atomos Cloud Studio

Waveform

3 sizes – adjustable opacity & brightness

RGB Parade

3 sizes – adjustable opacity & brightness

Vector Scope

2 sizes – adjustable opacity & brightness

1× Zoom

Tap to zoom

2× Zoom

Tap to zoom

Focus Peaking

3 modes (color, B&W, outline) with adjustable outline color & intensity

Zebra

Adjustable threshold (50%–105%)

Isolate Color Channel

Blue only

Cine Frame Guides

6 presets & custom calculator

Social Frame Guides

4 presets & custom calculator

Safe Areas

SMPTE safe title area – 93% & 90%

Grid Markers

9 grid

Anamorphic Desqueeze

2×, 1.8×, 1.79×, 1.65×, 1.6×, 1.5×, 1.33×, 1.25×

Display Flip

Vertical

Colorized Exposure

Atomos False Color, EL Zone System, Arri False Color

Frame Grab + Onion Skin Overlay

Capture lossless frame grab & overlay options

4K UHD downscale for HD (loop out)

DCI crop (loop out)

8K RAW to 4K video loop out

Interlaced to progressive (pulldown conversion)

NDI HX3

Optional activation via my.atomos.com

HDMI

Trigger via camera record button (Canon, Sony, Atomos standard, timecode)

SDI

Trigger via camera record button (ARRI, Canon, Ikegami, JVC, Panasonic, RED, Sony, timecode; optional accessory)

Serial 2.5mm Jack

Start/stop via LANC remotes; calibration via optional USB‑to‑serial cable

Bluetooth LE

Via AtomRemote app

Wireless RF

AirGlu™ gang control

Serial 2.5mm Jack

Z CAM camera control via remote-to-USB‑C cable

Cut & Tag

FCP XML up to 10 tags per clip

Supported Applications

Final Cut Pro, Premiere, Media Composer, Edius, SCRATCH, Baselight
