Blackmagic Design SmartView 4K - HDL-SMTV4K12G
  • Blackmagic Design SmartView 4K - HDL-SMTV4K12G
  • Blackmagic SmartView 4K - HDL-SMTV4K12G - Rear
  • Blackmagic Design SmartView 4K - HDL-SMTV4K12G
Price: $979.99
MSRP: $995.00
Discontinued
    As low as .
    Click for details on equipment financing.

    Make an Offer
    • This product has been updated by the manufacturer.
    • Click here to review the latest generation of the Blackmagic SmartView 4K 2.
    • 15.6" 3840x2160 Active-Matrix TFT LCD
    • Supports Up to Ultra HD 2160p60
    • Two Multi-Rate 12G-SDI Inputs
    • SDI Loop Output
    • Dual 3D LUT Support
    • H/V Delay, Blue Only, & Frame Markers
    • Front Panel & Ethernet Control
    • 6RU Machined Metal Frame
    • VESA Mounting Holes
    • 12VDC & 110/220 VAC Power Inputs
    Item # BMD-HDL-SMTV4K12G
    Mfr # HDL-SMTV4K12G
    UPC # 9338716002843
    BA # BLSV4K
    AS # B00O4DRQV0
    AD # BMSMARTV4K

    Blackmagic SmartView 4K

    The world's first full resolution Ultra HD broadcast monitor with multi rate 12G-SDI, an extremely bright display with wide viewing angle, plus advanced broadcast features like 3D LUT support, H/V delay, blue only, adjustable frame guides and more! SmartView 4K is compatible with all SD, HD and Ultra HD formats up to 2160p60. With both AC and DC power connections, SmartView 4K can be used in broadcast studios or on set.

    Blackmagic SmartView 4K

    Connections

    SDI Video Input
    2 SDI inputs automatically switch between SD, HD, 3G, 6G and 12G-SDI. Reclocked video output.

    Optical Video Output
    SFP Optical Fiber connector cage.

    SDI Video Output
    Automatically switches to input selection.

    Multi Rate Support
    Auto detection of 4K, 2K, HD or standard definition inputs.

    Updates and Configuration
    USB

    Ethernet
    Gigabit ethernet with loop through.

    Tally
    9-pin D connector

    SmartView 4K

    Standards

    SDI Format Support
    525i59.95 NTSC, 625i25 PAL

    HD Format Support
    720p50, 720p59.94, 720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24
    1080i50, 1080i59.94, 1080i60

    2K Format Support
    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
    2K 23.98PsF, 2K 24PsF, 2K 25PsF

    Ultra HD Format Support
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60

    4K Format Support
    4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p, 4K DCI 50p, 4K DCI 59.94p, 4K DCI 60p

    SDI Compliance
    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M Level B and SMPTE 425M.

    SDI Color Space
    REC 601, REC 709

    SDI Auto Switching
    Automatically selects between SD, HD, 3G, 6G and 12G-SDI.

    Video Sampling
    4:2:2 and 4:4:4

    Display

    Display Element
    15.6" TFT Active Matrix LCD

    Display Resolution
    3840 x 2160 pixels

    Response
    25 ms

    Contrast Ratio
    1000:1

    Color Depth
    16.7 million colors

    Software

    Software Control
    HDLink Utility included free for Windows and Mac OS X.
    Internal Software Upgrade
    Automatically when new HDLink Utility is installed.

    Operating Systems

    Mac Icon

    Mac OS X 10.10 Yosemite,
    Mac OS X 10.11 El Capitan or later.

    Windows Icon

    Windows 8.1 or Windows 10.

    Power Requirements

    Power Supply
    Built in IEC 90 - 240V AC power supply, plus DC input jack for external power.
    Power Consumption
    24 Watts

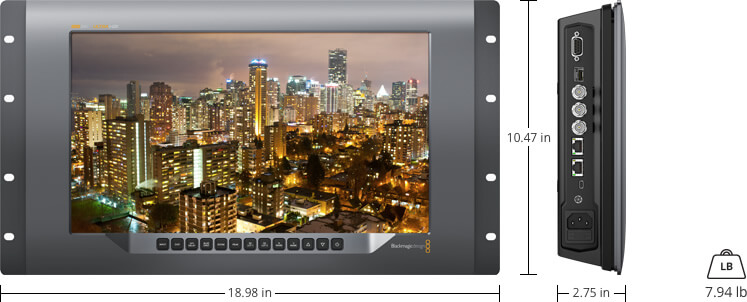

    Physical Specifications

    SmartView 4K

    Environmental Specifications

    Operating Temperature
    0° to 40° C (32° to 104° F)
    Storage Temperature
    -20° to 60° C (-4° to 140° F)
    Relative Humidity
    0% to 90% non-condensing

    Blackmagic SmartView 4K

    What's Included

    • SmartView 4K
    • SD card with software and manual

    Warranty

    12 Months Limited Manufacturer's Warranty.
