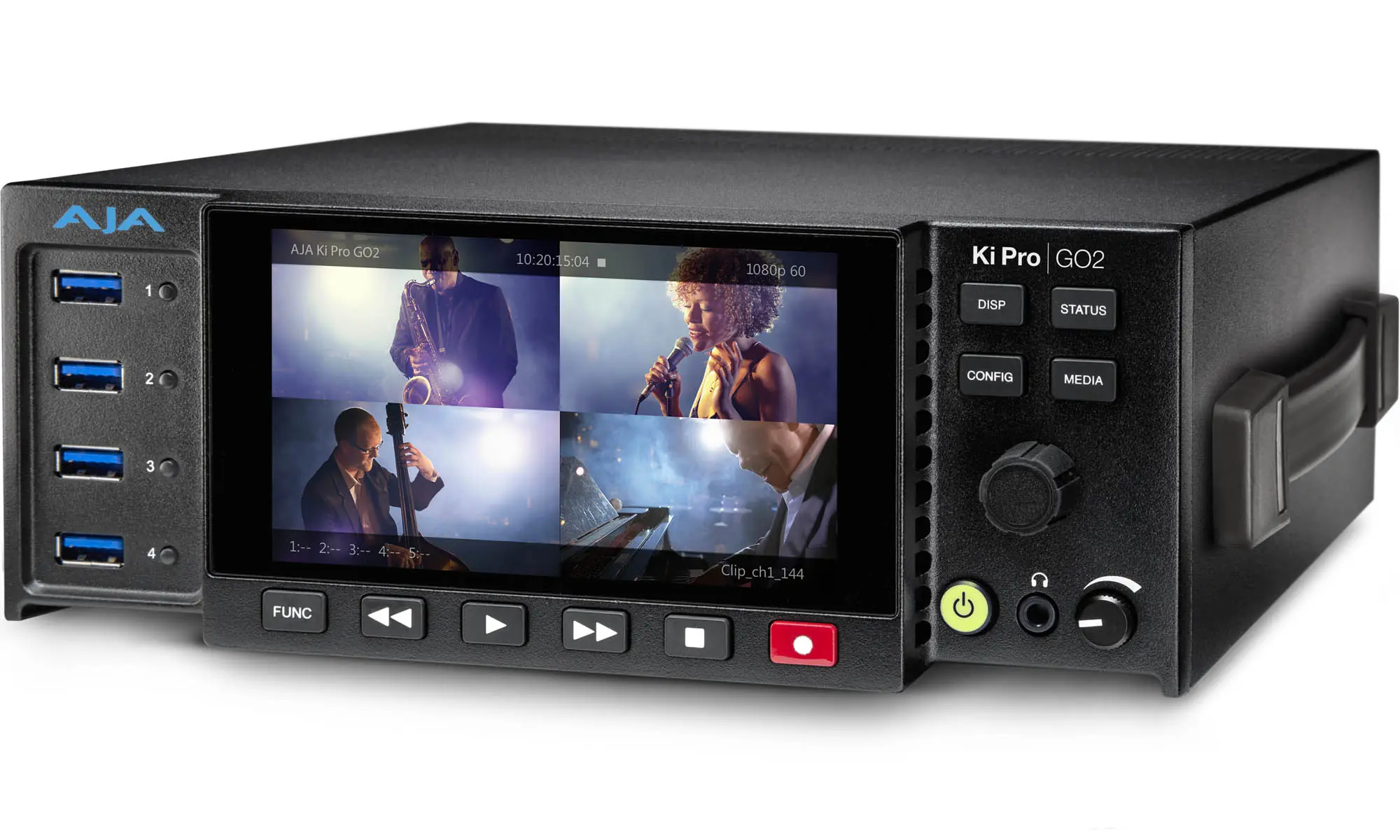

AJA Ki Pro GO2

The AJA Ki Pro GO2 is a professional multi-channel H.265 (HEVC) and H.264 recorder designed for live production, event recording, education, houses of worship, corporate AV, and broadcast applications. Capable of simultaneously recording up to four independent HD or SD video sources, the Ki Pro GO2 combines flexible HDMI and 3G-SDI connectivity with reliable USB and network-based recording. Built-in frame synchronizers eliminate the need for genlocked sources, allowing cameras, switchers, and other video devices to be connected with minimal setup. The recorder creates industry-standard MP4 files that are immediately ready for editing, archiving, streaming, or distribution.

Supporting four 3G-SDI inputs, four HDMI inputs, balanced XLR analog audio, and embedded audio, the Ki Pro GO2 provides exceptional flexibility for multi-camera productions. Recordings can be saved to up to five USB drives, network-attached storage (NAS), or both simultaneously for redundant backup and increased workflow security. Independent quality settings, user-selectable H.265 or H.264 compression, and variable bitrate recording allow users to optimize file size and image quality for virtually any production or delivery requirement.

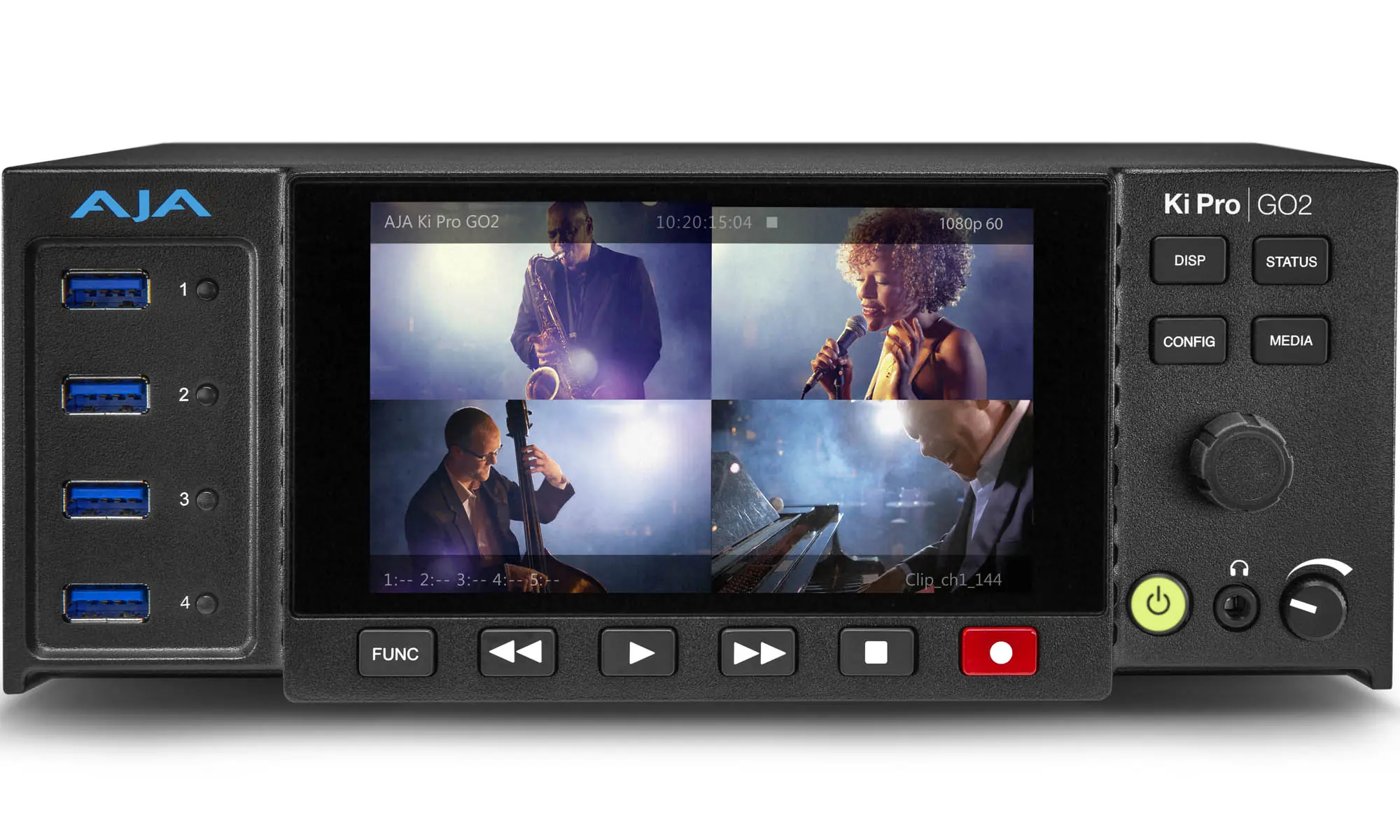

Designed for dependable operation in demanding production environments, the Ki Pro GO2 features an intuitive front-panel interface with a high-resolution LCD display, dedicated transport controls, and a browser-based web interface for remote configuration, monitoring, and file management. HDMI and SDI multiview monitoring provide convenient display of up to four video channels on a single monitor, while on-screen overlays show timecode, audio levels, recording status, and remaining media capacity.

Whether used for live events, conference recording, sports, concerts, government meetings, or multi-camera productions, the AJA Ki Pro GO2 delivers a reliable, easy-to-deploy recording solution that simplifies media management while providing the redundancy, flexibility, and professional performance required for mission-critical video workflows.

Livestream Studio HD550 - Portable Live Production Switcher

Video Formats

• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080i 50, 59.94, 60*
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30*,**
• (HD) 720p 50, 59.94, 60
• (SD) 525i 59.94*
• (SD) 625i 50*

* Recording will be converted to progressive
** PsF input support only
Note: Multi-channel recording requires the same frame rate and resolution for all input sources.

Video Codec Support

• Supports H.265/HEVC, up to 15 Mbps recorded output
• Supports H.264/MPEG-4, up to 25 Mbps recorded output

Audio Codec Support

• 4x audio compression codecs
• 2-channel audio support for each
• Up to 320 kbps
• MPEG-4 AAC-LC

Codec Container

• .MP4

Removable Storage

• 5x USB 3.2 Gen 1 (5 Gbps) ports
• All ports are also compatible with the following standards:
  • USB 2.0 (480 Mbps)
  • USB 3.0 (5 Gbps)*
  • USB 3.2 Gen 1 (5 Gbps)*
• 5V 1A max current per port

*Also referred to as SuperSpeed USB

Removable Storage File System Support

• FAT file systems
  • FAT16
  • FAT32
  • exFAT
• In-system formatting support for exFAT only

Network Storage

• SMB support via Gigabit Ethernet port*
  • Only 1x network storage device can be used at any one time
  • Connection via IP address or DNS entry
  • Requires (externally defined) domain name, domain user name, user password
  • Customer must ensure sufficient bandwidth is available for recording*

*Gigabit Ethernet network connectivity to storage is required, with 150 Mbps of bandwidth permanently available for media storage

SMB Protocols Supported

• SMB 3.1.1
• SMB 3.0.2
• SMB 3.02
• SMB 2.1
• SMB 2.0

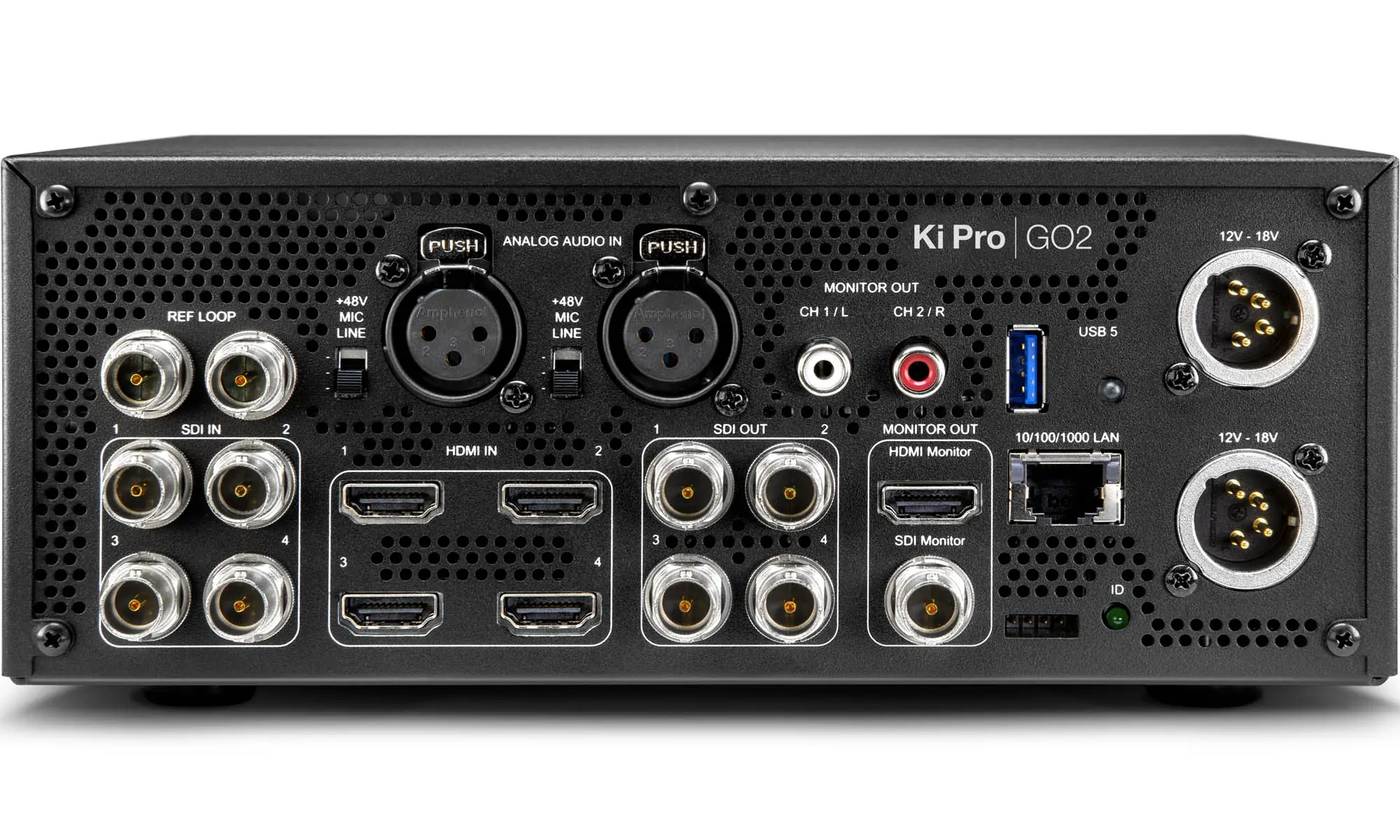

Video Input

• 4x 3G-SDI BNC, SMPTE-259/292/424, 4:2:2 10-bit
• 4x HDMI standard Type A connector
• HDMI v1.4a
  • 4:4:4 RGB 8, 10-bit (deep color)
  • 4:2:2 YCbCr 8, 10, 12-bit
  • 4:2:0 YCbCr 8-bit

Video Output

• 5x 3G-SDI BNC, SMPTE-259/292/424, 4:2:2 10-bit
• 1x HDMI standard Type A connector
• HDMI v1.4a
  • 4:4:4 RGB 8, 10-bit (deep color)
  • 4:2:2 YCbCr 8, 10, or 12-bit
  • 4:2:0 YCbCr 8-bit

Audio Input

• 4x SDI audio
  • 2-channel, 24-bit embedded audio
  • 48 kHz sample rate, synchronous
  • Sample rate converted to 48 kHz internally
• 4x HDMI audio
  • 2-channel, 24-bit HDMI embedded audio
  • 32 kHz, 44.1 kHz, 48 kHz sample rates, synchronous
  • Sample rate converted to 48 kHz internally
• 2x XLR input
  • Line/Mic/+48V Phantom Power Mic Levels supported (selectable by rear switch)
  • +24 dB full scale digital
  • +/- 0.3 dBFS 20 Hz to 20 kHz response
  • THD+N <= -90 dB

Audio Output

• 5x SDI embedded
  • 2-channel, 24-bit embedded audio
  • 48 kHz sample rate, synchronous
• 1x HDMI embedded
  • 2-channel, 24-bit embedded audio
  • 48 kHz sample rate, synchronous
• Stereo unbalanced headphone jack (1x 3.5mm jack) with volume control
• 2-channel unbalanced 2x RCA connectors

Video Conversion

• Deinterlacing for recording
• Interlacing for playback (optional)
• PsF to progressive

Timecode

• SDI RP 188/SMPTE 12M via SDI BNC
• LTC input (via Analog Audio XLR in R)
• TC Super Out

Reference Input

• External, 2x BNC
• Looping, nonterminating
• Input reference formats:
  • (HD) Tri-level sync
    • 720p 59.94
    • 720p 50
    • 1080i 59.94
    • 1080i 50
    • 1080p 23.98
    • 1080PsF 23.98
    • 1080p 24
    • 1080PsF 24
    • 1080p 25
    • 1080PsF 25
  • (SD) Analog composite
    • 525i 59.94
    • 625i 50

Network Interface

• 1x LAN connector (RJ-45 connector, 10/100/1000)
• Embedded web server for remote control
• Configuration and Transport Control via WEB Interface
• Clip download via Web Interface
• Remote control via REST

User Interface

• Rotary Selector knob
• Dedicated backlit transport controls and menu buttons
• Large 1280x720 TFT LCD display with Video Monitor and Menu/Status Overlays

Size (w x d x h)

• 8.64" x 10.59" x 3.31" (219.46 x 268.90 x 84.08 mm)

Weight

• 5.1 lbs (2.3 kg)

Power

• External power supply required
  • Enclosure: Dual, redundant, 12-18VDC regulated, 4-pin XLR, 55W typical, 90W max
  • AC adapter, included: 100-240VAC, 50/60 Hz, universal input, 12V, 7A output
  • Optional redundant AC adapter sold separately, KPU-PWR-SUPPLY

Environment

• Safe Operating Temperature: 0 to 40 C (32 to 104 F)
• Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
• Operating Relative Humidity: 10-90% non-condensing
• Operating Altitude: <3,000 meters (<10,000 feet)

• AJA Ki Pro GO2
• AC Power Cord
