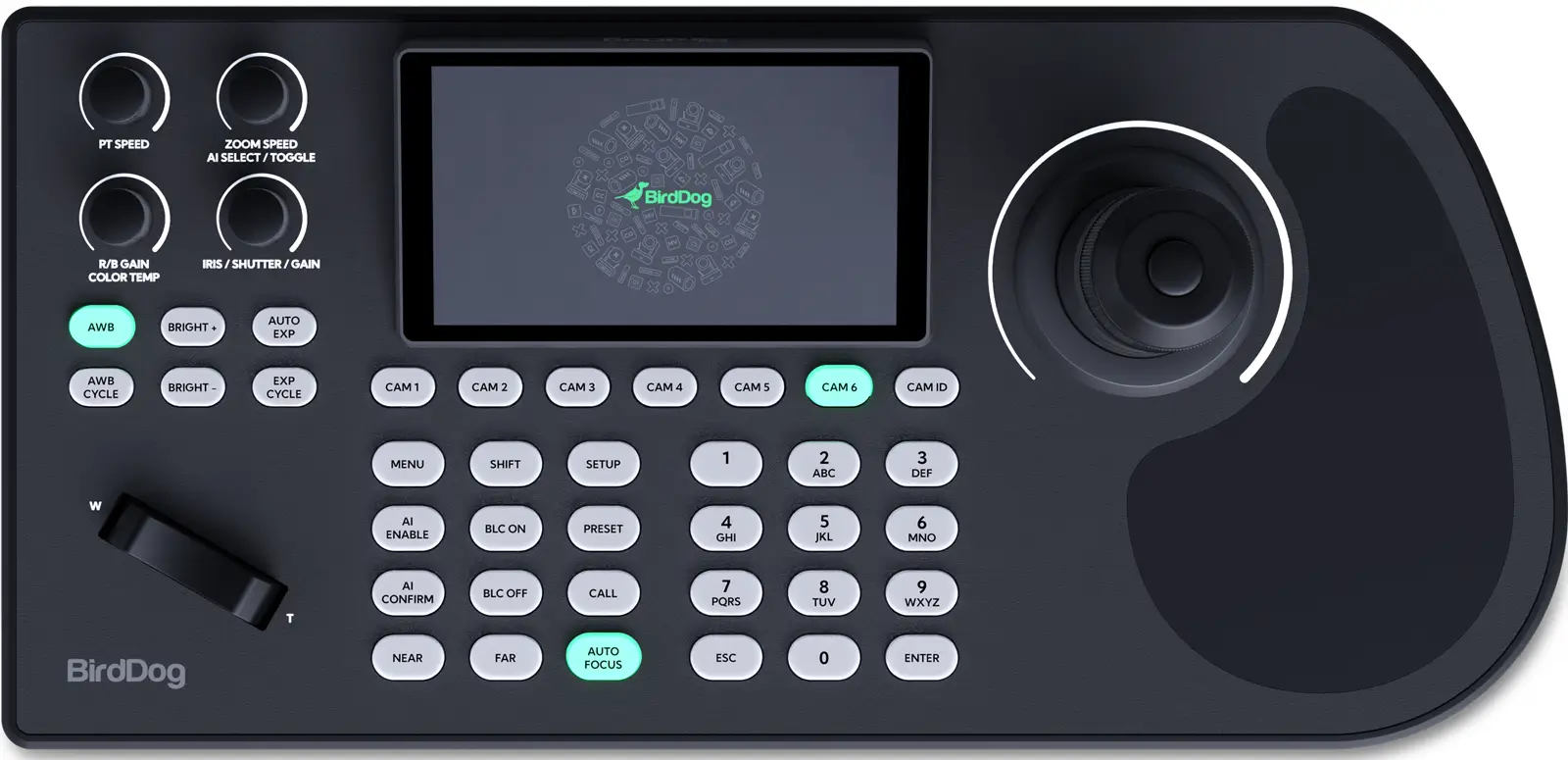

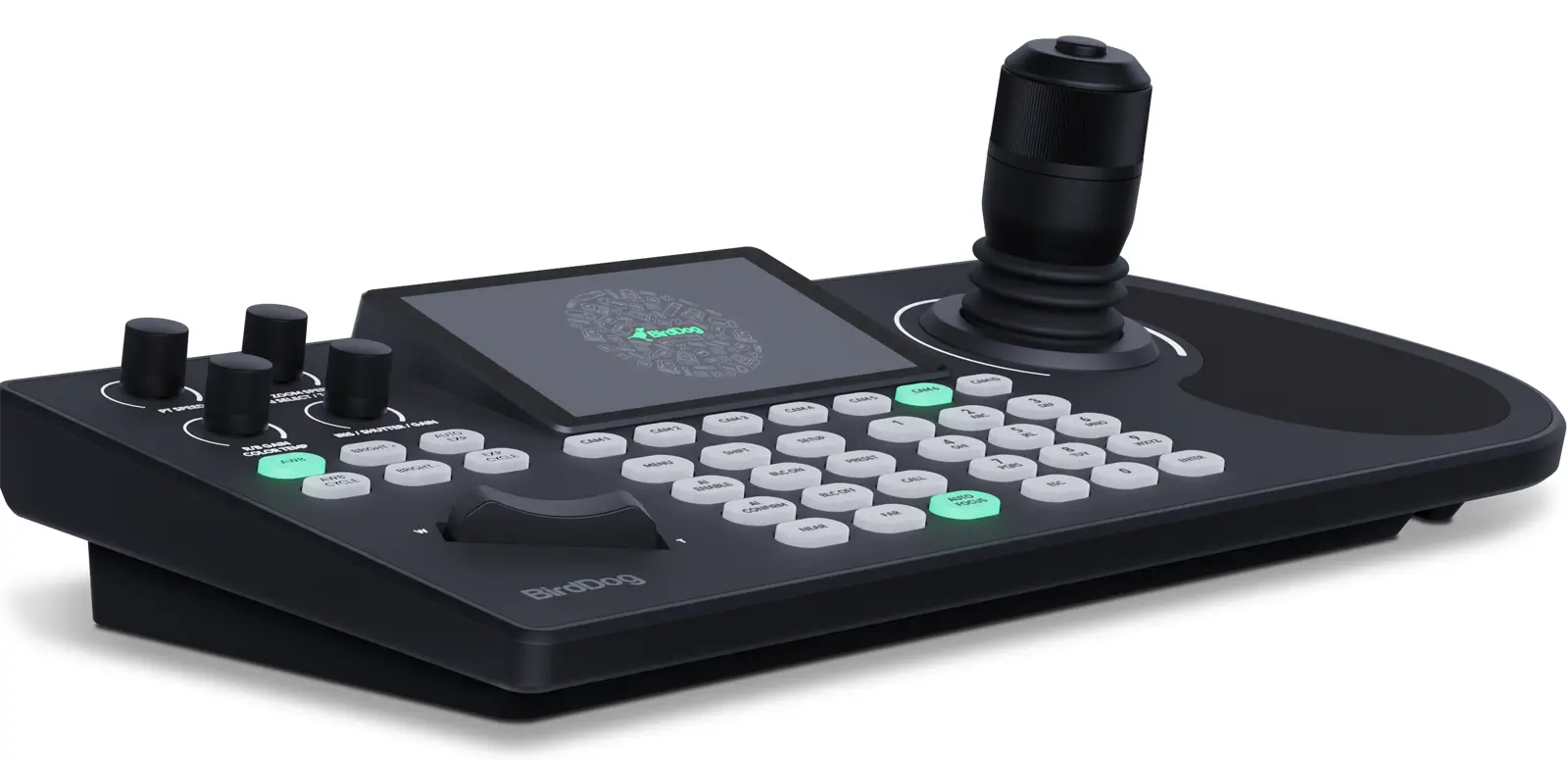

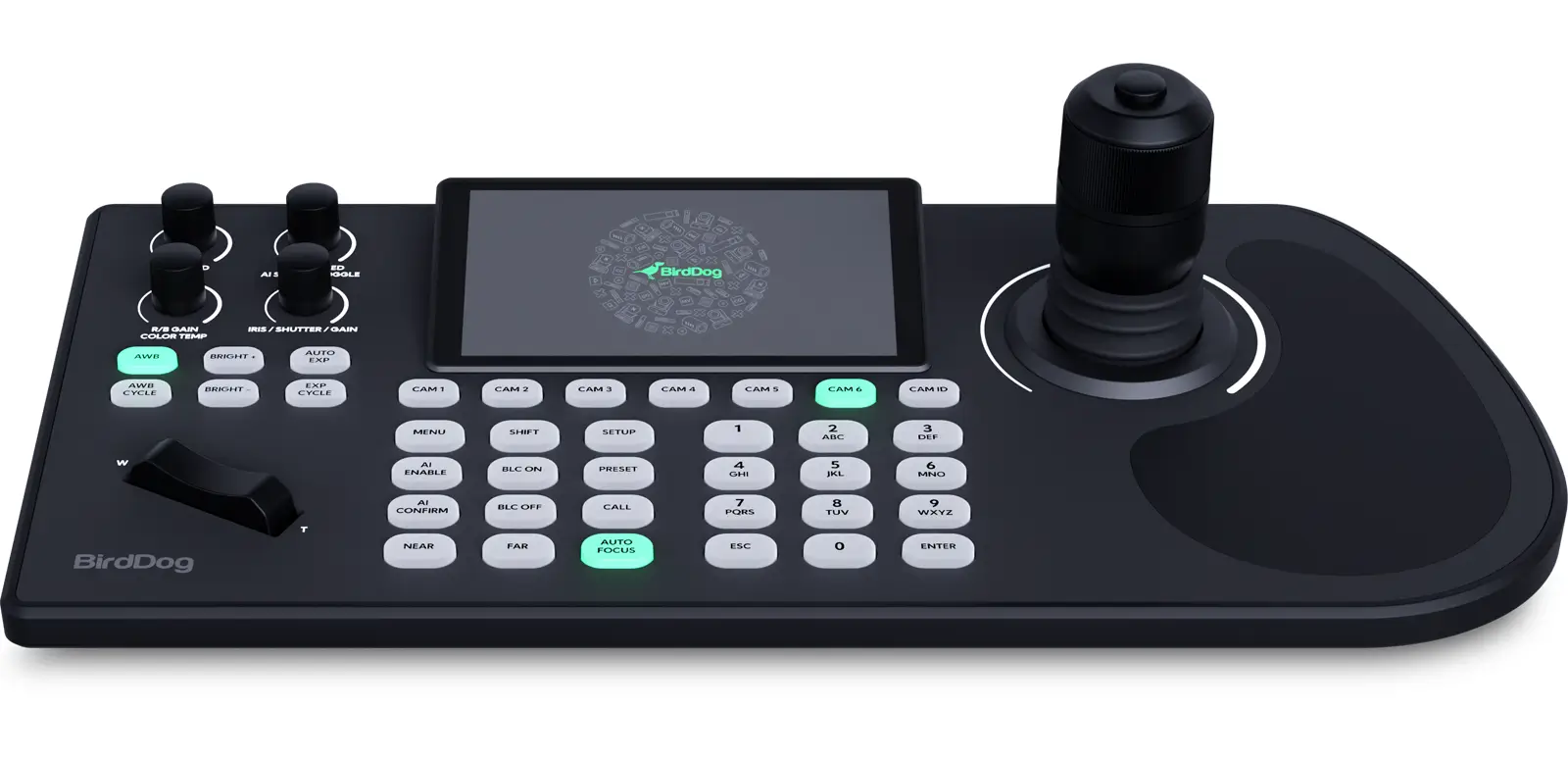

BirdDog KBD PTZ Controller with Integrated Screen
The BirdDog KBD PTZ Controller with Integrated 5" Screen is a professional-grade joystick controller designed for precision control of PTZ cameras in live production, broadcast, and streaming environments. Featuring a bright 7" capacitive touchscreen, the KBD lets you view multiple camera feeds, access on-screen menus, and monitor tally status without needing external monitors. Its ergonomic design and intuitive interface put PTZ operation, settings adjustments, and preset recall at your fingertips, streamlining multi-camera workflows.
Under the hood, the KBD supports up to 255 NDI-enabled PTZ cameras, plus legacy VISCA and Sony VISCA over IP control. The hall-effect joystick delivers smooth, silent pan, tilt, and zoom with adjustable speed curves and programmable sensitivity profiles — perfect for everything from studio broadcasts to distant wildlife shoots. Four assignable function buttons and an encoder knob let you dial in iris, focus, or fade presets on the fly, ensuring your shots remain cinematic and perfectly framed.
Networking is equally flexible, with dual-port Gigabit Ethernet for daisy-chaining multiple KBD units or connecting directly to your IP network. PoE+ power simplifies cabling, while an onboard web UI grants remote access to camera settings, network configuration, and firmware updates. Integrated tally LEDs around each video preview ensure on-air status is always clear, reducing errors in fast-paced live events.
Designed for durability and portability, the BirdDog KBD features a rugged aluminum chassis, rubberized grip panels, and a removable V-mount battery plate for run-and-gun scenarios. Whether you’re controlling PTZ cameras in an OB van, corporate boardroom, or esports arena, the KBD PTZ Controller with Integrated Screen delivers unmatched precision, visibility, and reliability in a single, turnkey package.
BirdDog KBD PTZ Controller with Integrated Screen - BDKBD Specifications
KBD Technical Specifications
The BirdDog KBD Controller’s screen offers live previews for NDI|HX2 / NDI|HX3 cameras and key text-based details for others, ensuring seamless compatibility and clarity across your workflow.
Feature
Camera Control
PTZ Control (VISCA-IP, NDI, ONVIF, PELCO-P, PELCO-D)
Fine PTZ Control
VISCA-IP, NDI
Focus Control
Auto Focus; Manual Focus buttons
Auto Exposure
Direct Button
Manual Exposure
Toggle Dial adjustment: Brightness/Shutter/Gain/Iris
Auto White Balance
Direct Button
Manual White Balance
Toggle Dial adjustment: R-Gain, B-Gain, Color Temperature
Auto Focus
Direct Button
Manual Focus
Direct Button (Near/Far)
BLC (Backlight Compensation)
Direct Button
Zoom Ring on Joystick
Yes (enable/disable)
Programmable Trigger on Joystick
Adjustable: One-Push Focus, AI Tracking, One-Push AWB
AI Camera Mode Control
Camera-dependent, supported
Copy/Paste Camera Settings
Supported on selected BirdDog cameras (VISCA-IP, NDI)
Camera Access
Max. Cameras Supported
255
Direct Camera Access Keys
6
Direct Preset Access Keys
10
Max Presets per Camera
255
OSD Camera Menu
Menu Button / Interaction with Joystick
Display Diagonal Dimension
5″
Display Resolution
1280 × 720
Multiview IP Video
Supported: NDI HX (Proxy), RTSP (max. 30 fps)
Full Screen IP Video
Supported: NDI HX (Proxy), RTSP (max. 30 fps)
IP Video CODEC Support
H.264, H.265
Tally Borders
Selectable; Multiview & Full Screen mode
On Screen Menu
Fully configurable
Light/Dark Mode
Yes
NDI Support
NDI Control
NDI HX2, NDI HX3, High Bandwidth NDI
NDI Multiview
NDI HX2, NDI HX3
NDI Router
Yes; follows current active camera
NDI Discovery
Supported
NDI Access Manager
Supported
NDI PTZ Sensitivity
Standard (NDI); Superfine (BirdDog specific)
Setup & Configuration
WebUI
BirdUI for setup & firmware updates
Light/Dark Mode
Yes
API-based Camera Selection
Yes

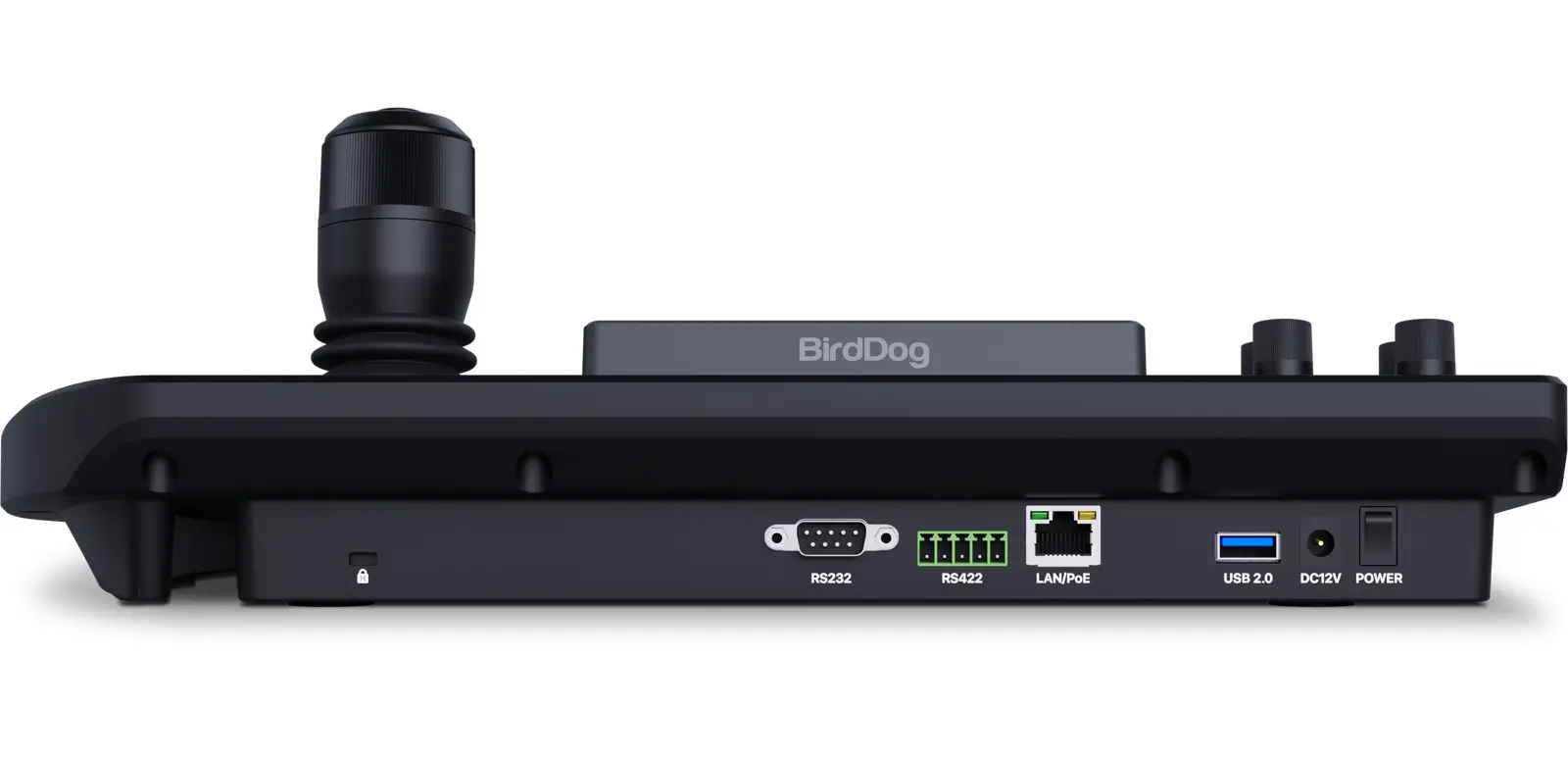

Serial Connections
RS-232
D-Sub connector (9-pin)
RS-422
Phoenix connector
Mechanical

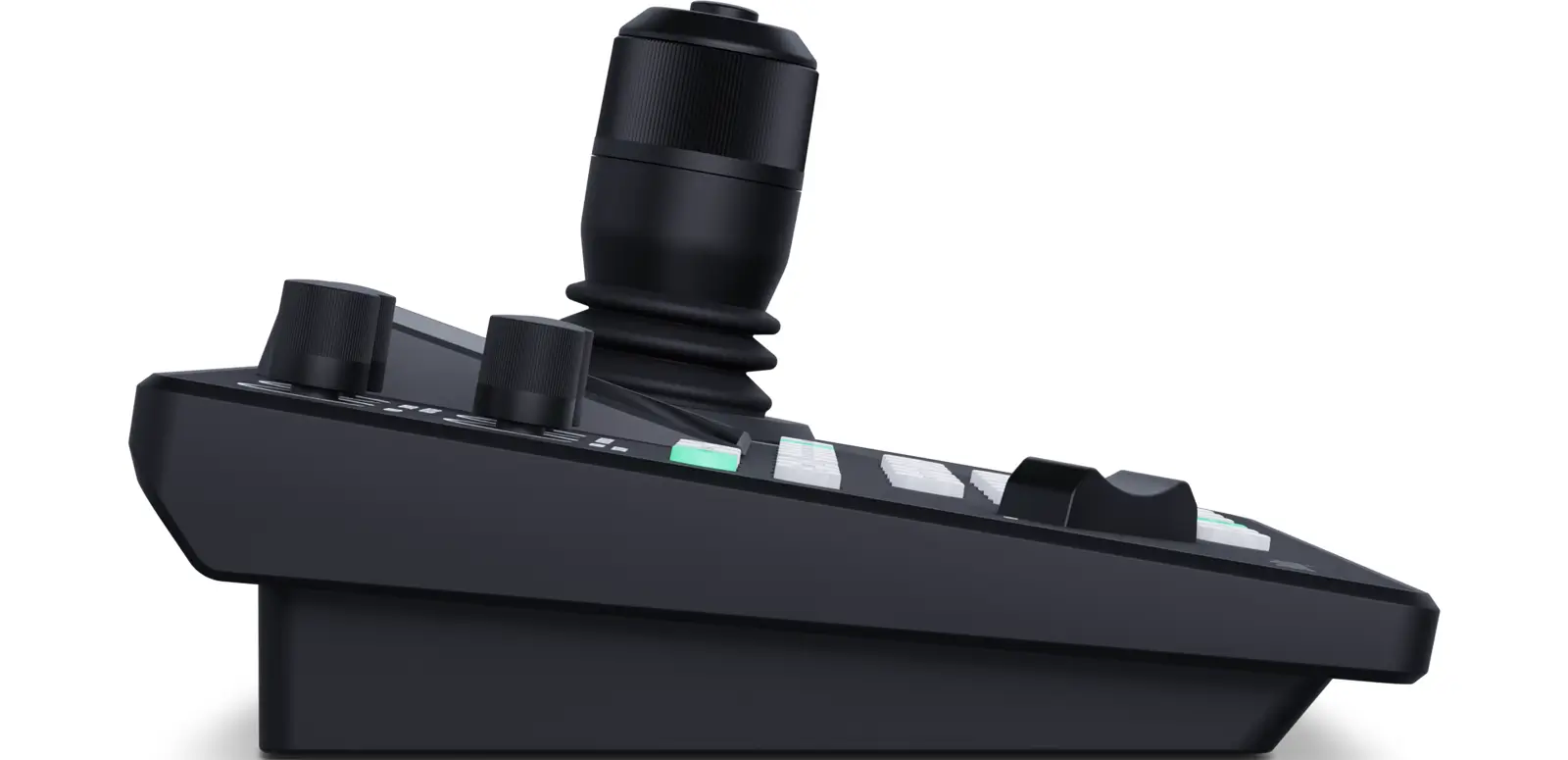

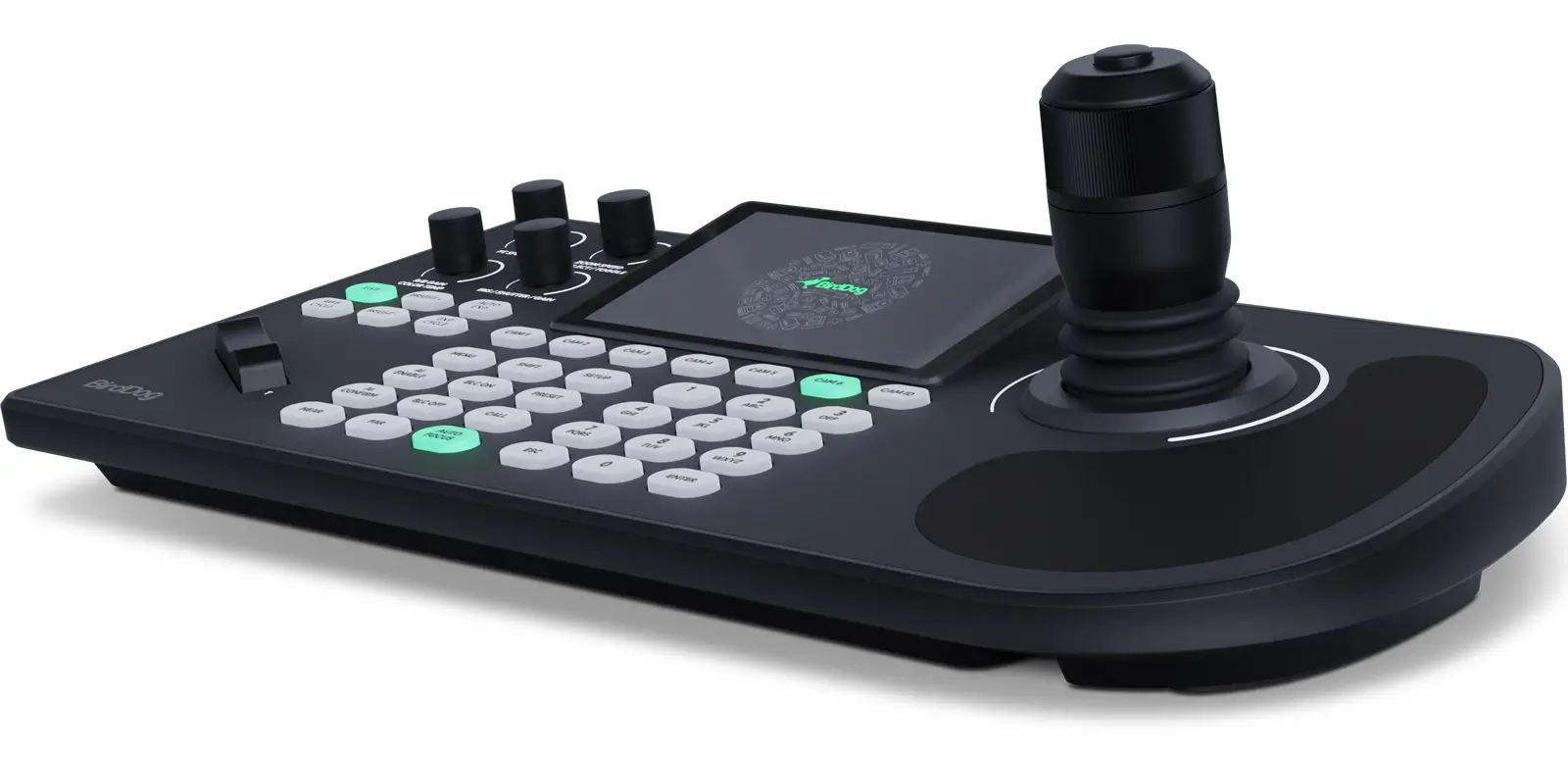

Joystick Type
4D (Integrated Trigger button)
Keys
37 keys; backlit, individual contact, silicon pad
Toggle Dials
4 knobs; press button, graduated, 360° adjustment
Zoom Rocket
Spring-loaded, adjustable
Dimensions (L×W×H)
377mm x 177mm x 118mm (14.84" x 6.96" x 4.64") including joystick
Construction Material
Aluminium; OBP ocean-bound plastic
Integrated Carry Handle
Yes
Operating Temperature
–10°C to +55°C (14°F to 130°F)
Storage Temperature
–10°C to +55°C (14°F to 130°F)
Operating Humidity
20% – 80% (non-condensing)
Storage Humidity
0% – 90% (non-condensing)
Power Supply
PoE (802.3af), DC 12V
Power Consumption
≤ 5 W
BirdDog KBD PTZ Controller with Integrated Screen - BDKBD - What's Included
- BirdDog KBD PTZ Controller
- Limited 5-Year Warranty
