Blackmagic 2110 IP SDI to HDMI 12G

Blackmagic 2110 IP SDI to HDMI 12G

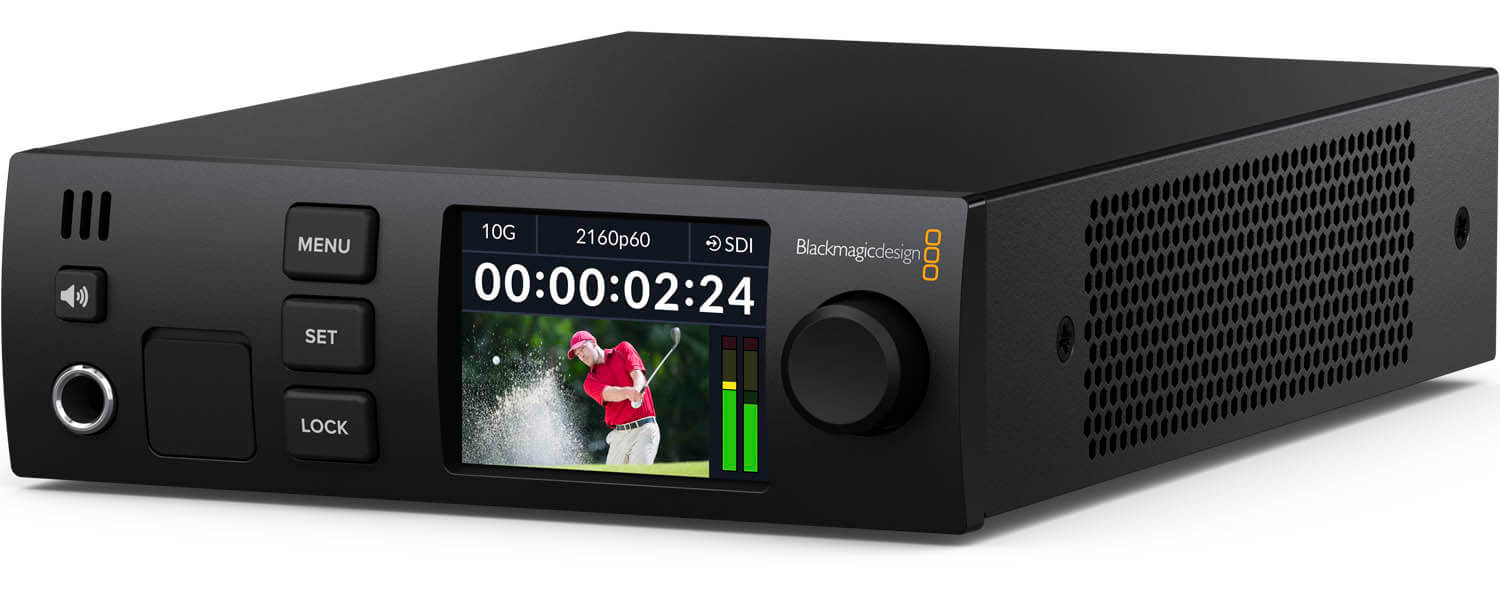

The Blackmagic Design 2110 IP SDI to HDMI 12G Converter is a professional broadcast‑grade standards converter engineered for live production, post‑production, and streaming applications. It seamlessly converts 12G‑SDI or SMPTE 2110 IP video into native HDMI 2.0 output for Ultra HD and 4Kp60 displays, enabling color‑accurate monitoring on the latest OLED panels. Housed in a 1RU rackmount chassis with front‑panel controls, it integrates into broadcast racks, OB trucks, and studio installations with ease.

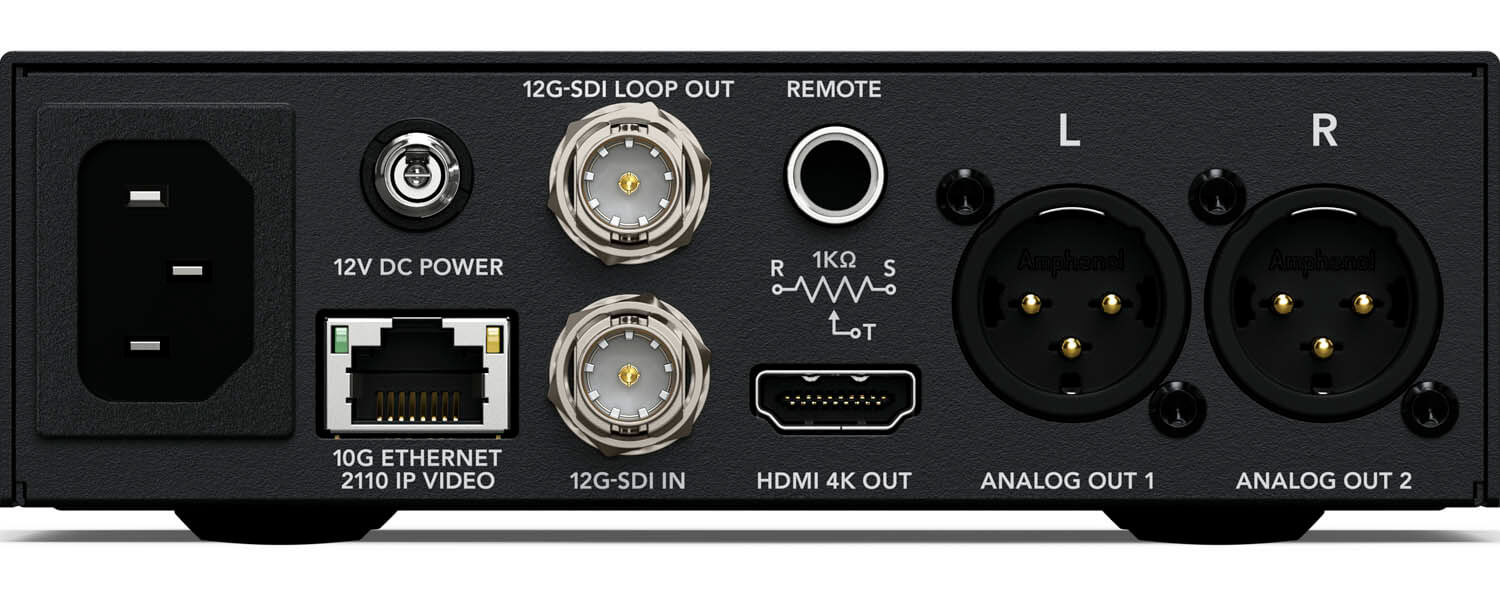

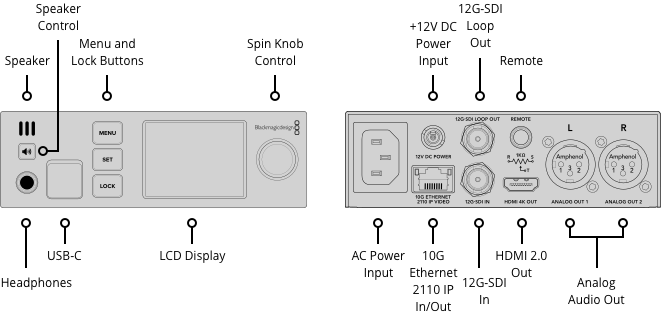

On the rear panel, a multirate 12G‑SDI input with loop‑through keeps your SDI chain intact, while a dedicated HDMI 2.0 output delivers pristine 4K video. A 10 Gb/s Ethernet port ingests SMPTE 2110‑20 video, 2110‑30 PCM audio, and 2110‑40 ancillary data streams. Dual XLR analog outputs provide two channels of balanced audio monitoring, and a ¼″ headphone jack offers critical cue monitoring. Reference BNC I/O ensures genlock synchronization across your entire system.

Fully SMPTE compliant, this converter supports 2110‑20 uncompressed video, 2110‑21 traffic shaping (narrow/wide), 2110‑30 PCM audio, and 2110‑40 ancillary data—including HDR static metadata and closed captioning. Precision Time Protocol (IEEE 1588‑2008/PTP v2) and NMOS IS‑04/IS‑05 enable plug‑and‑play device discovery and network‑wide synchronization. The low‑latency Blackmagic IP10 codec engages when converting high‑frame‑rate 2160p59.94/60 sources to IP, preserving uncompressed image fidelity.

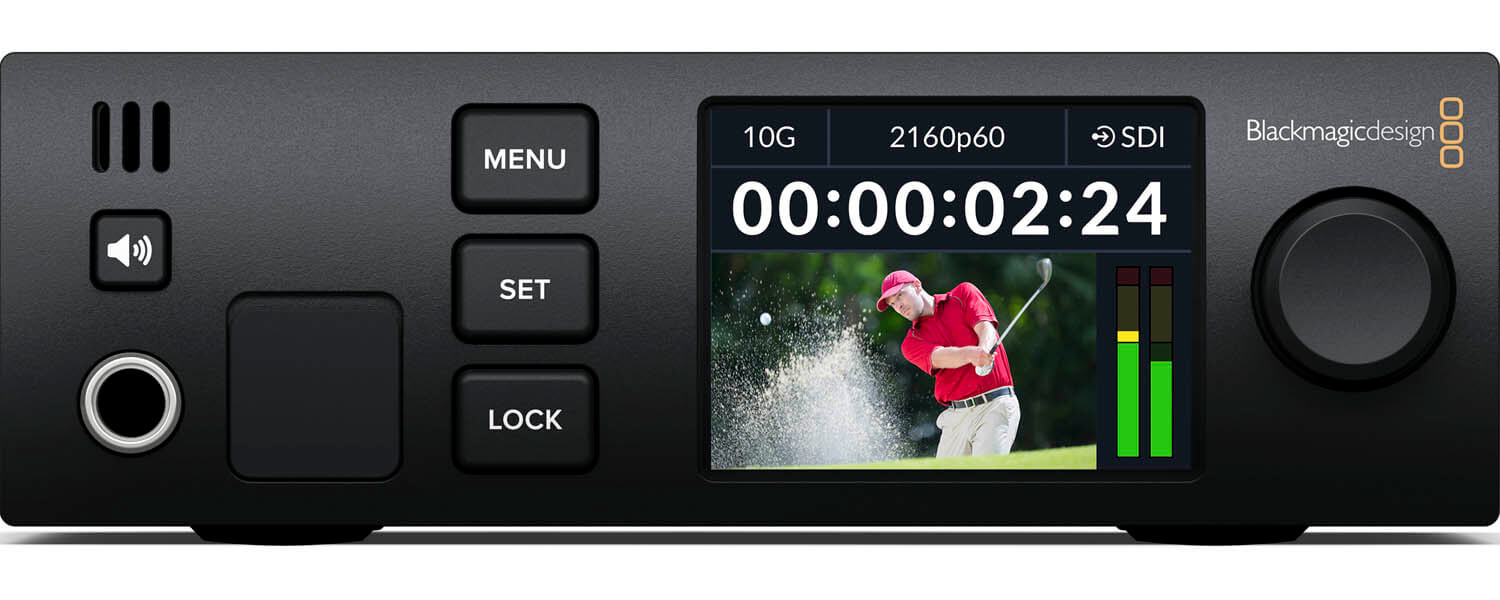

Control and monitoring are handled via a built‑in 2.2" color LCD, four tactile menu buttons, and a precision spin knob for on‑screen menu navigation. Variable gain and audio delay keep picture and sound perfectly in sync, while 3D LUT support allows on‑board color calibration. Real‑time video scopes and audio meters display status overlays, so operators can verify signal integrity at a glance.

Designed for 24/7 broadcast use, the converter draws minimal power from its internal 100–240 VAC supply or optional 12 V DC input, with redundant power options for mission‑critical reliability. Its rugged metal chassis operates from 0°C to 40°C (32°F–104°F) at up to 90% non‑condensing humidity. A one‑year limited manufacturer's warranty completes the turnkey solution for any SDI/IP‑to‑HDMI workflow.

Blackmagic 2110 IP SDI to HDMI 12G Technical Specifications

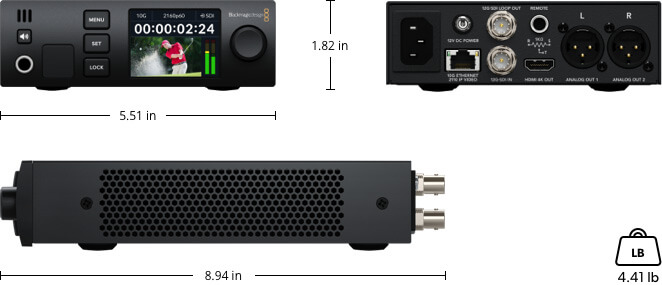

Blackmagic 2110 IP SDI to HDMI 12G - Weight and Dimensions

Blackmagic 2110 IP SDI to HDMI 12G - BMD-CONVNVIPM/12G/HDMI02 What's Included
