Blackmagic 2110 IP UpDownCross 12G

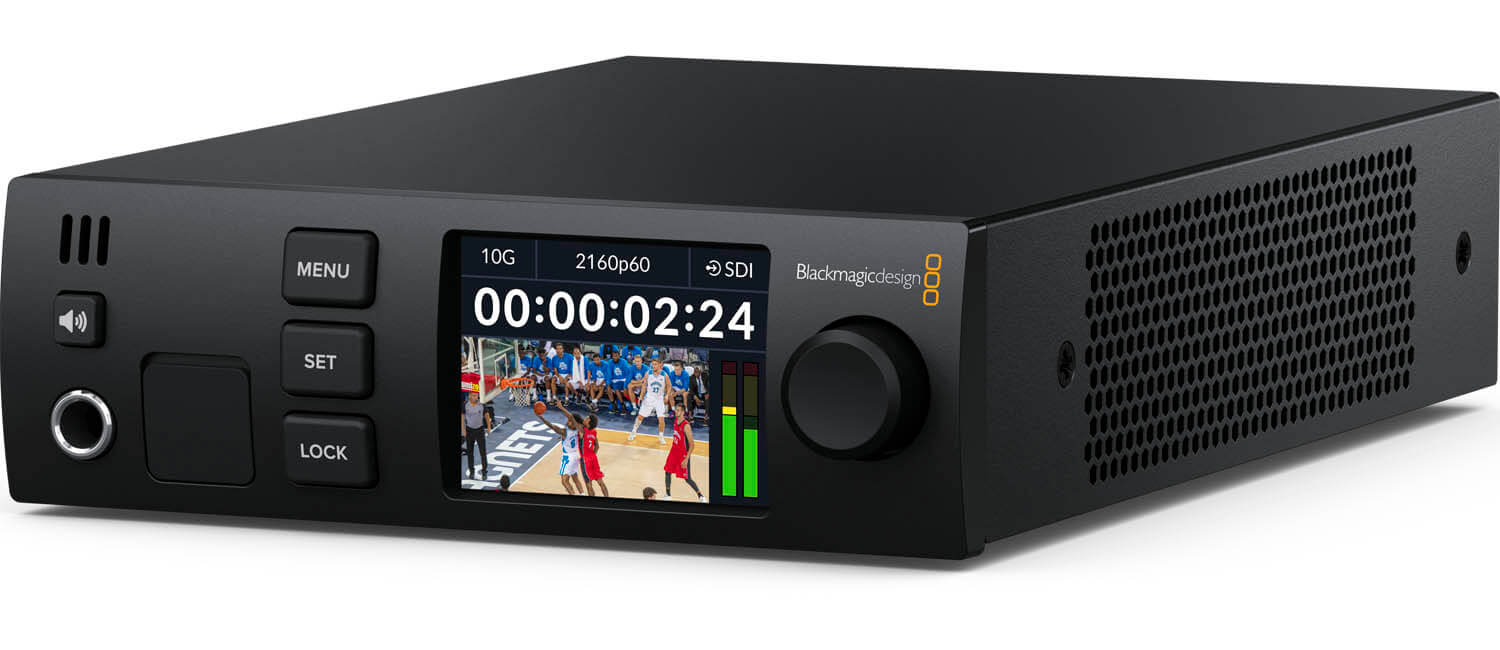

The Blackmagic Design 2110 IP UpDownCross 12G is a professional‑grade standards converter engineered for seamless integration between SDI, HDMI, and SMPTE 2110 IP infrastructures. Designed for broadcast, live production, and virtual studio environments, it effortlessly converts any incoming video source—up, down, or cross—across SD, HD, Ultra HD, and DCI 4K formats. Its robust 12G‑SDI architecture and low‑latency Blackmagic IP2110 codec ensure pristine image fidelity and rock‑solid performance under mission‑critical conditions.

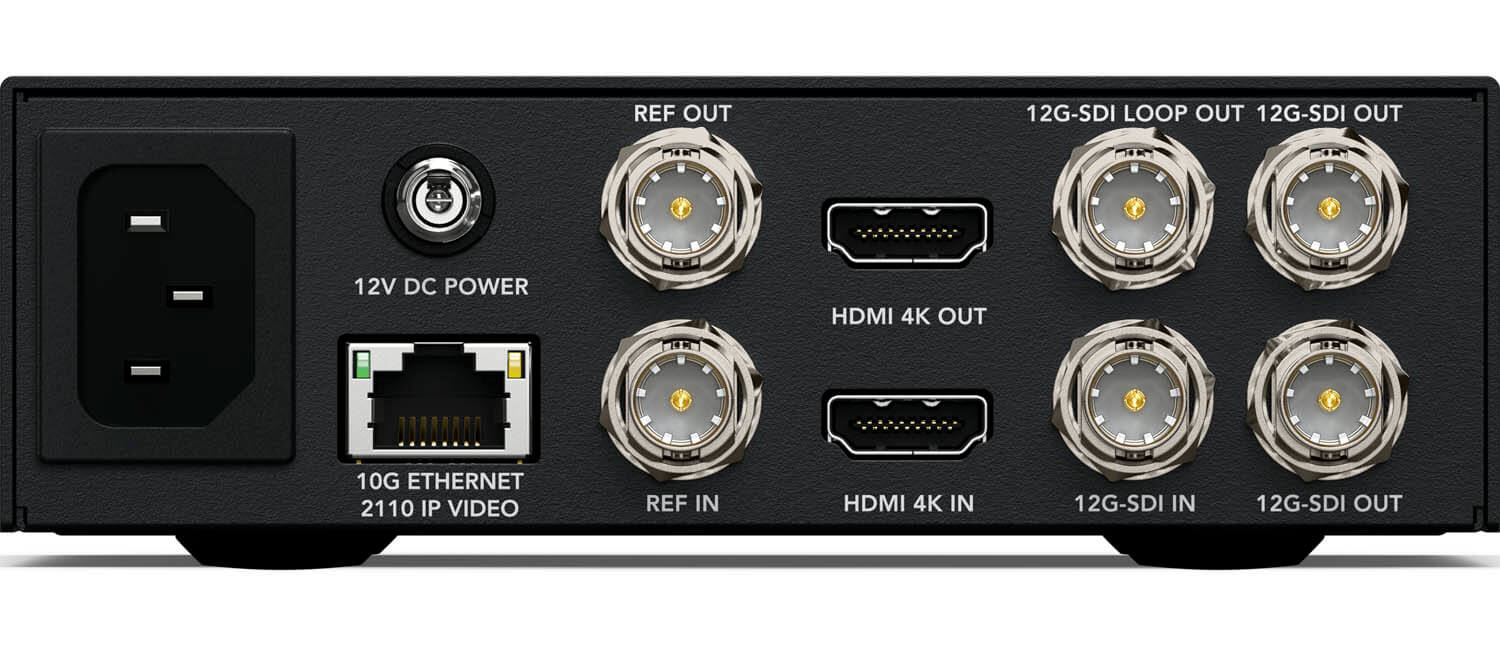

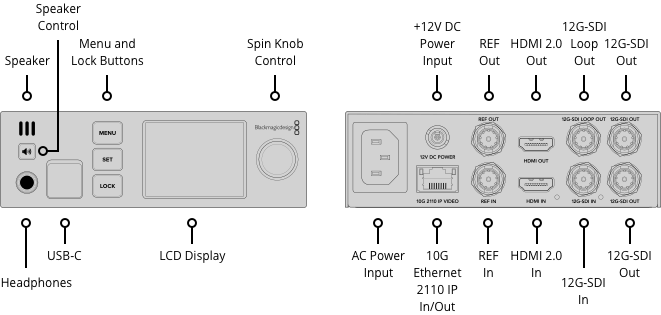

On the I/O front, the UpDownCross 12G features a single multirate 12G‑SDI input with loop‑through BNC, HDMI 2.0 input/output supporting up to 3840x2160 60 fps, and a 10 Gb/s Ethernet port for SMPTE 2110 IP video. Every SDI feed is re‑synced to a common PTP clock, with dedicated BNC reference input and output for genlock. This combination of IP and SDI connectivity makes it an ideal bridge between traditional and IP‑based facilities.
Compliance with SMPTE 2110‑20, ‑21, ‑30, and ‑40 standards ensures full support for uncompressed video, PCM audio, and ancillary data, while PTP (IEEE 1588v2/ST 2059) and NMOS (IS‑04/IS‑05) integration provide network‑wide synchronization and plug‑and‑play device discovery. Advanced multi‑tap video filtering and low‑jitter reclocking regenerate SDI signals for extended cable runs, and automatic audio delay keeps sound perfectly in sync with video.

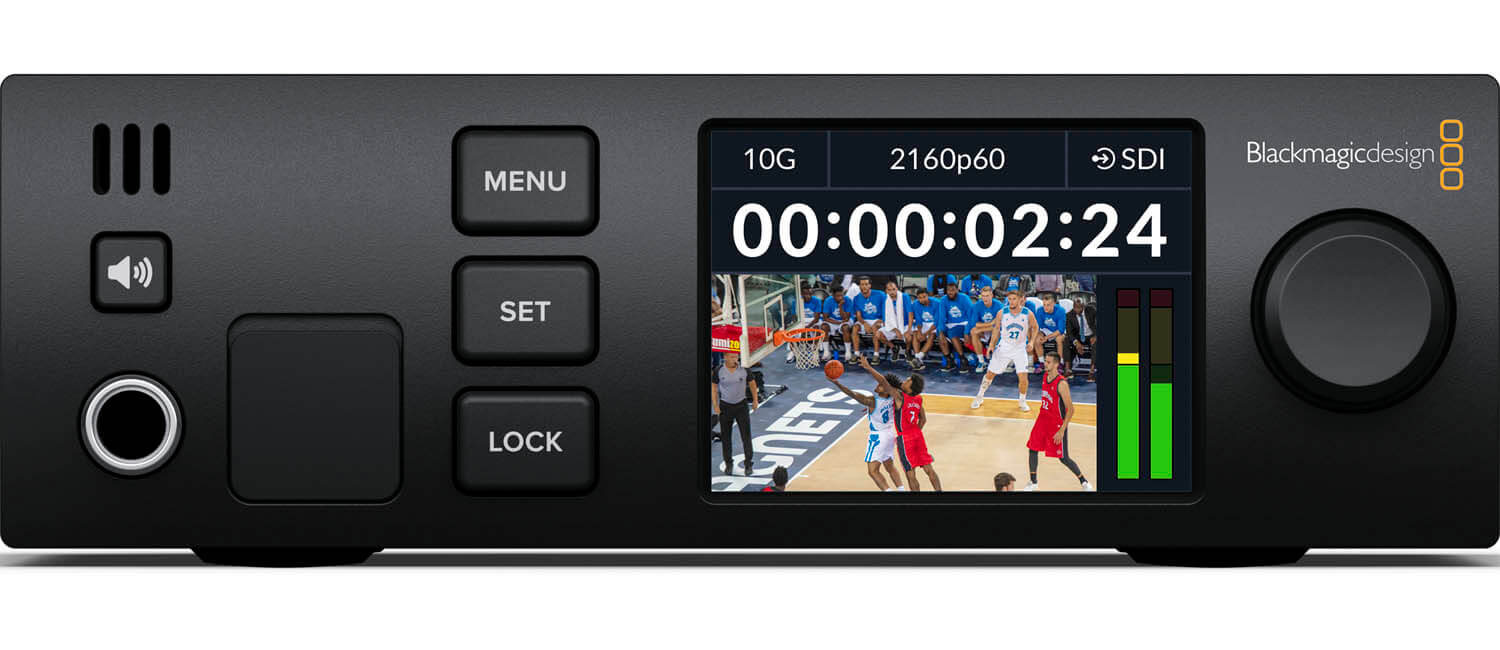

User control and monitoring are streamlined via a built‑in 2.2" color LCD, four push‑button controls, and a precision spin knob—allowing status readouts, menu navigation, and on‑device routing without external interfaces. Front‑panel USB‑C doubles as an HD webcam output for direct streaming and conferencing, while an integrated speaker and headphone jack provide convenient audio monitoring on set or in the control room. External control via REST‑based Ethernet and USB‑C enables deep integration with automation and remote workflows.

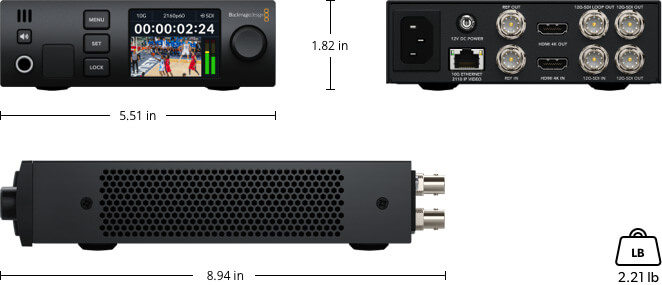

Compact yet rugged, the 2110 IP UpDownCross 12G packs into just one‑third of a 1 RU chassis, drawing power from its internal 100–240V AC supply or optional +12V DC input. Rated for continuous operation between 0°C and 40°C (32°F–104°F) with up to 90% non‑condensing humidity, it carries a 1‑year limited manufacturer’s warranty—delivering turnkey standards conversion for next‑generation broadcast and IP studios.
