ATEM Micro Camera Panel
The Blackmagic Design ATEM Micro Camera Panel is a portable CCU controller that brings broadcast‑grade camera adjustments into any live production or studio environment. With eight assignable NKK camera select buttons and red/green tally LEDs, it lets you switch control between up to eight URSA Mini Pro, URSA Broadcast, or Studio cameras instantly. Housed in a rugged, compact chassis, the panel connects wirelessly via Bluetooth 5.1 LE or through USB‑C for seamless integration with ATEM Software Control.

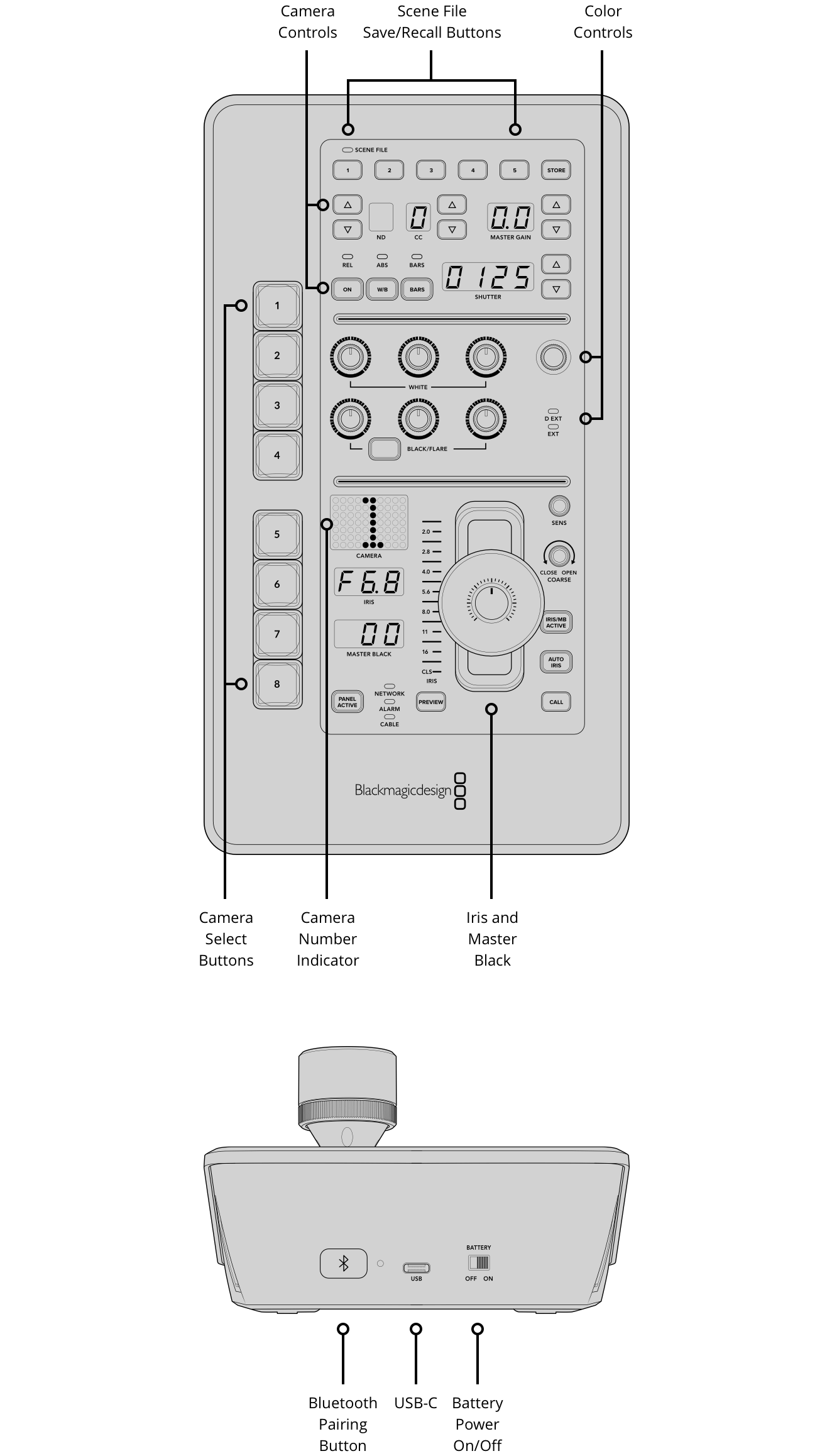

Ergonomic controls include a professional 3‑axis joystick for fine iris and pedestal adjustments, plus dedicated knobs and buttons for shutter speed, white balance, master gain, RGB balance, and ND filter selection. Auto Iris On and coarse iris control deliver smooth aperture transitions, while a wide iris range (f32–f1.2), gain range (‑12 dB to +32 dB), and four stop ND filters cover any shooting scenario. A single preview button and on‑panel scene recall let you save and load up to five presets per camera for lightning‑fast camera matching.
Connectivity is flexible and future‑proof: a USB‑C port handles both data and external power, enabling firmware updates and battery charging, while Bluetooth 5.1 LE provides true wireless operation. The panel’s lightweight design (2.21 lb) and compact footprint (10.1″ × 5.72″ × 3.75″) make it perfect for field shoots, OB vans, and tight studio racks. A built‑in, rechargeable battery with power switch ensures uninterrupted operation wherever you need reliable camera control.
Operating on the streamlined Blackmagic OS and fully compatible with Mac (Sonoma/Sequoia) and Windows (10/11, ARM) via ATEM Software Control, the Micro Camera Panel CCU sits at the heart of any ATEM‑based workflow. Real‑time status overlays on the panel’s green/red camera number display and a “Panel Active” lock function protect your settings from accidental changes. Whether dialing in color balance on location or fine‑tuning exposure in the studio, ultimate precision is always at your fingertips.
Built to withstand demanding environments, it operates from 5°C to 40°C (41°F–104°F) and up to 90% non‑condensing humidity. The package includes the ATEM Micro Camera Panel, a USB‑C cable, and a welcome wallet with a QR code for software downloads. Backed by a one‑year limited manufacturer warranty, this panel delivers turnkey, professional camera control for broadcast, streaming, and live event productions.
