Blackmagic Cloud Backup 8
The Blackmagic Cloud Backup 8 is a versatile 8-bay hard disk dock designed to streamline backup and sharing of large media files using affordable 3.5" SATA hard drives. Ideal for professional post-production workflows, this unit integrates seamlessly with Blackmagic Cloud, enabling efficient collaboration on DaVinci Resolve projects.
Key Features:
-
Eight Independent Drive Bays: Supports up to eight independently operating 3.5" SATA hard drives. Drives can easily be swapped when full, ensuring continuous, expandable storage.
-
High-Speed 10Gb Ethernet Connectivity: Equipped with four 10Gb Ethernet ports, the Cloud Backup 8 ensures rapid data transfers and smooth simultaneous access for multiple users.
-
USB-C 3.2 Gen 1 Port: Includes a 5 Gb/s USB-C port supporting Ethernet over USB, providing flexible connectivity options.
-
Blackmagic Cloud Integration: Syncs effortlessly with Blackmagic Cloud, enabling straightforward backup and collaborative file sharing.
-
Real-Time Monitoring via HDMI Output: Features an HDMI monitor output for real-time monitoring, displaying storage maps, speed graphs, synchronization status, active users, and power conditions.
-
Rackmount Design with Security Features: Offers a sleek rackmount form factor suitable for studio or on-set DIT environments, with an integrated security bar to prevent unauthorized drive removal.
Blackmagic Cloud Backup 8
The Blackmagic Cloud Backup 8 is a large 8-bay hard disk dock that lets you back up large media files to low-cost computer hard disks over a 10G Ethernet network. You can also sync files globally using Blackmagic Cloud, plus view all storage, connection, and sync activity in real-time on a display connected to the HDMI monitor port. Blackmagic Cloud Backup 8 includes 4 x 10G Ethernet for network sharing, an Ethernet over USB-C port, and an internal power supply in an elegant rack mount design, making it ideal for installing in a studio alongside other network equipment.
Specifications
Connections
- Storage Interface: 8 x removable and hot-swappable 3.5 inch SATA Hard Disk Drives
- 10G Ethernet Ports: 4 x 10G BASE‑T
- USB-C Port: 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB
- HDMI Monitor Outputs: 1
- Computer Interface: USB-C or Ethernet for shared file access, configuration, and software updates
File Sharing Protocol
- Protocol: SMB 3 Multichannel
- Computer Connections: Up to 200
Storage
- Storage Type: Bring your own drive
- External Storage Format: ExFAT (Windows/Mac) or HFS+ (Mac)
Displays
- HDMI Monitor Out Standards: 1080p50, 1080p59.94, 1080p60
- Monitor Out Displays: Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph
- Status Indicator: LED bezel indicator light around individual HDD bays. Red for write activity, green for read activity
Device Control
- External Control: USB-C or Ethernet for configuration and software updates
Software
- Included: Blackmagic Cloud Setup Utility, Blackmagic Proxy Generator Lite
Operating Systems
Mac 14.0 Sonoma,
Mac 15.0 Sequoia or later.
Windows 10 (64-bit), Windows 11
Power Requirements
- Power Supply: 2x Internal 100–240V AC 50/60Hz (IEC C14 mains input)
- Power Usage: 180W
Environmental Specifications
- Operating Temperature: 0° to 40° C (32° to 104° F)
- Storage Temperature: -20° to 60° C (-4° to 140° F)
- Relative Humidity: 0% to 90% non-condensing

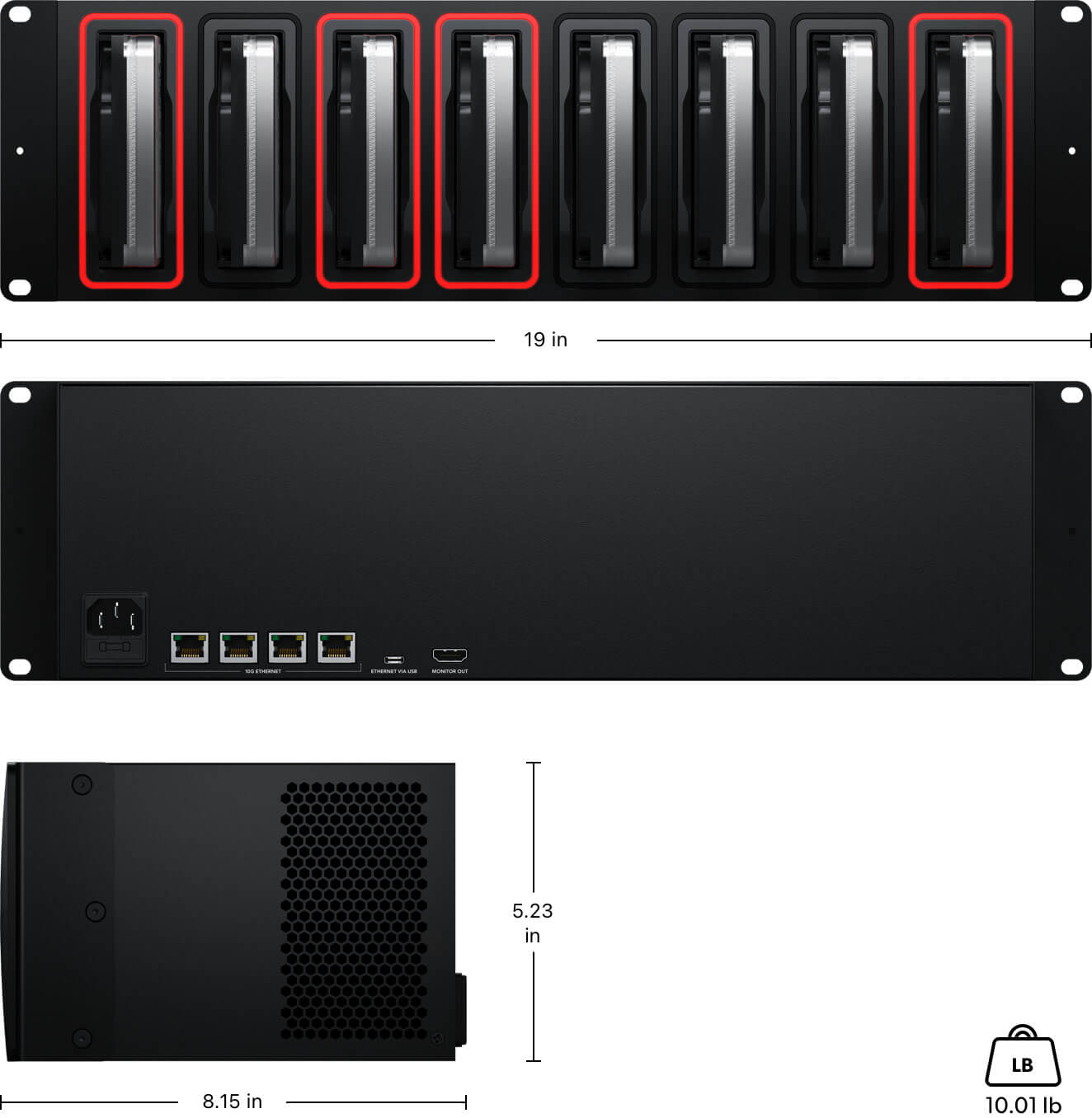

Physical Specifications
What's Included
- Blackmagic Cloud Backup 8
- Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty
