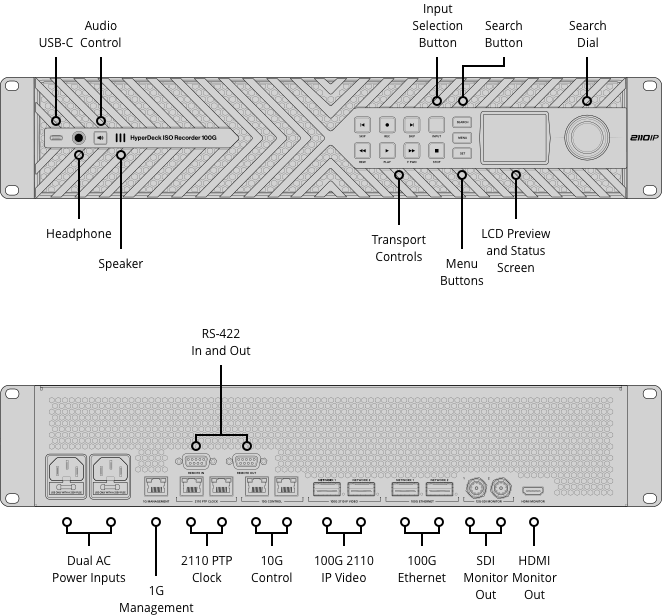

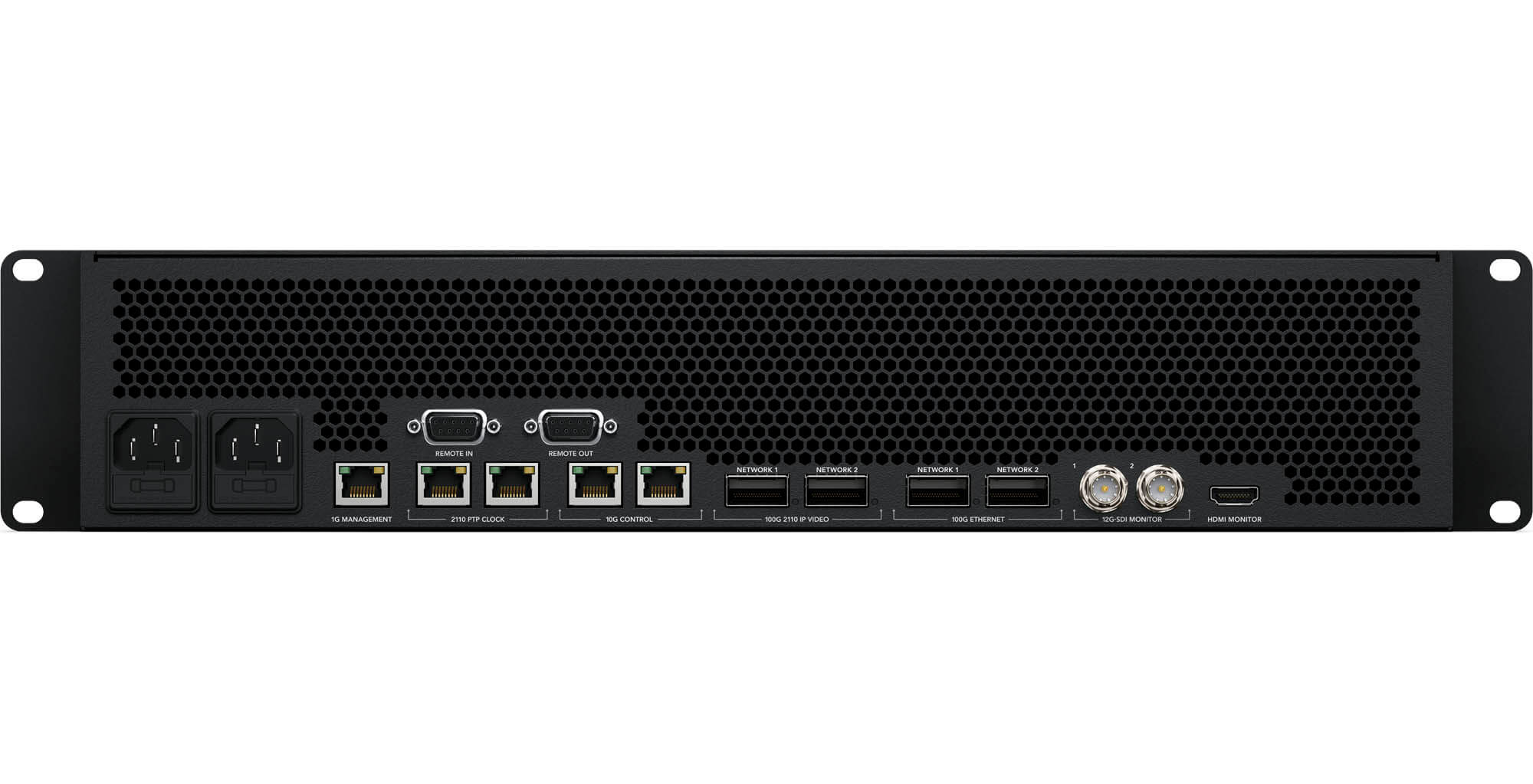

Connections
100G 2110 IP Networks
2x 100G QSFP28 connections.
Supports ST 2022-7 redundant delivery of IP streams over two 2110 networks.
Senders and Receivers per 100G Pair
8x Ultra HD or 8 HD
100G Ethernet
2x 100G QSFP28 connections.
10G Control Network
2x 10G RJ45 Ethernet for NMOS control.
Reference Network
2x RJ45 Ethernet for 2110 PTP clock.
1G Management
1x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For HyperDeck Setup utility and software updates.
SDI Monitor Outputs
2
HDMI Monitor Outputs
1
SDI Rates
1.5G, 3G, 6G, 12G.
Analog Audio Outputs
1x 6.35mm headphone jack.
SMPTE ST 2110 IP Audio Inputs
Up to 64 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
SMPTE ST 2110 IP Audio Outputs
Up to 64 Ch embedded audio on each 2110 IP video stream over 100G Ethernet.
SDI Audio Outputs
16 channels embedded audio.
HDMI Audio Outputs
8 channels embedded audio.
Computer Interface
1x USB-C for HyperDeck Setup utility and software updates.
Power
2x IEC C14 power inputs.
Standards
HD Video Standards
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
4K DCI Video Standards
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI
SMPTE Compliance
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE 2084, SMPTE 2108‑1.
Supported HDMI Formats
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
Audio Sampling
Television standard 24‑bit, 48 kHz sample rate.
Video Sampling
4:2:2 YUV
Color Precision
10-bit
Color Space
Rec. 709, Rec. 2020.
HDR Support
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084.
IP Video Compliance
SMPTE 2110-20 (Uncompressed Video)
IGMP v3
SMPTE 2110-21 (Traffic Shaping)
Sender: Narrow
Receiver: Narrow, Wide Synchronous, Asynchronous
SMPTE 2110-30 (PCM)
Audio Conformance level: Level C
SMPTE 2110-40 (Ancillary Data)
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning and HDR static metadata.
Codec
Blackmagic IP10 codec optional for 2160p59.94 and 2160p60 as 2110 IP video.
Precision Time Protocol
IEEE 1588-2008 (PTP v2)
ST 2059-1
ST 2059-2
NMOS IS-04 Discovery and Registration
v1.3.2
Peer-to-peer via mDNS/DNS-SD
NMOS IS-05 Connection Management
v1.1.2
NMOS BCP-002-01
Natural Grouping
NMOS BCP-004-01
Receiver capabilities
Audio
Headphones
Front panel headphone outputs active monitor.
Built in Speaker
Front panel mono speaker outputs active monitor.
Audio Controls
Front panel button functions as single press for momentary speaker ON, double press for speaker ON / OFF plus press and hold for volume control using search dial.
Processing
ProRes Encoder
Built-in hardware encoder supports up to 8 x Ultra HD simultaneous real-time ProRes encoding.
Media
Media
Records over 100G Ethernet to network storage.
Supported Codecs
Video Codecs
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60.
Audio Codecs
PCM 2, 4, 8 or 16 Channels.
Control

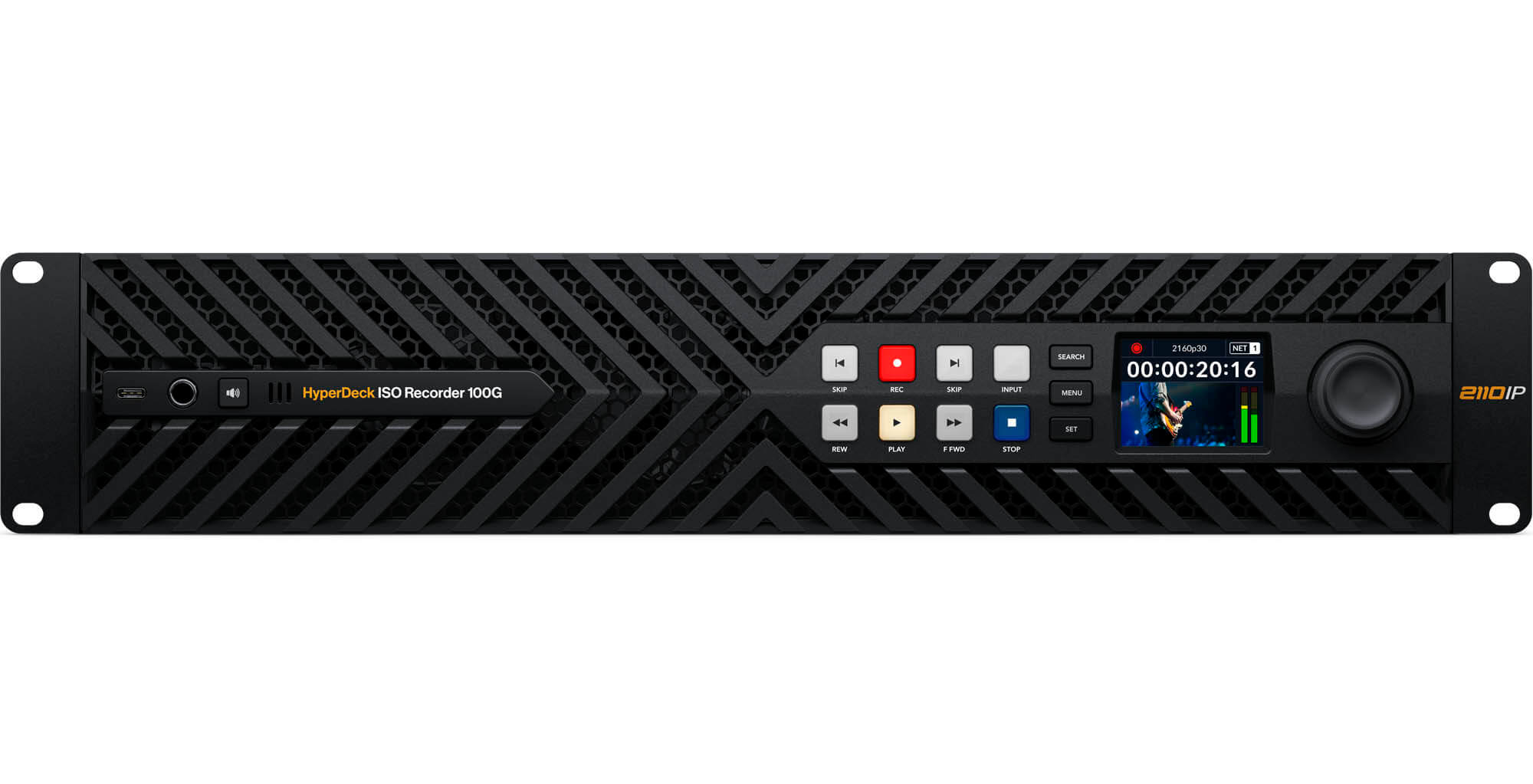

Built in Control Panel
16 buttons for transport and device control with search dial featuring electronic clutch and 2.2 inch color display.
External Control
RS-422 deck control, 2110 IP video start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol and REST API for HyperDeck. Supports remote FTP and HTTP Web Media Manager.
Displays
Built in 2.2 inch LCD for monitoring video, audio, video standard and timecode plus menu settings. Use search dial to scrub between all available inputs and monitor on front panel.
Software
Software Included
Blackmagic OS
Blackmagic HyperDeck Setup
Internal Software Upgrade
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Operating Systems
<img src="https://discount.videotoybox.com/BMD-soft/Mac-Sequoia.jpg" width="96" height="96" alt="macOS icon"
Mac 15.0 Sequoia,
Mac 26.0 Tahoe or later.
Windows 11
Power Requirements
Power Supply
2 x 100 ‑ 240V AC 50/60Hz internal power supplies.
Power Input
2 x IEC C14 sockets.
Power Usage
TBC
Accessories
Optional Accessories
HyperDeck Extreme Control
Blackmagic Cloud Store Ultra

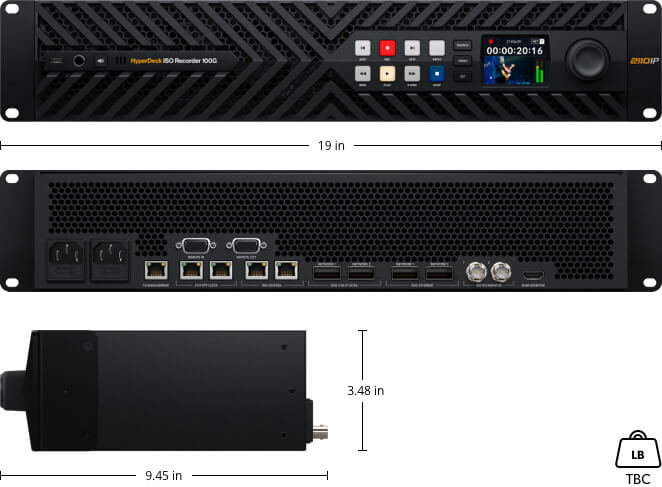

Physical Installation
2 rack units height.
Physical Specifications
Environmental Specifications
Operating Temperature
0° to 40° C (32° to 104° F)
Storage Temperature
-20° to 45° C (-4° to 113° F)
Relative Humidity
0% to 90% non‑condensing
What's Included
HyperDeck ISO Recorder 100G
Welcome wallet with QR code for software download
Warranty
1 Year Limited Manufacturer’s Warranty.
