Blackmagic HyperDeck Shuttle 4K Pro 2TB
The Blackmagic Design HyperDeck Shuttle 4K Pro 2TB is a broadcast‑grade desktop recorder and player built for professional live production, mastering, and clip playback. Its large 7″ capacitive touchscreen LCD with heads‑up overlay, mechanical transport buttons, and precision search dial deliver intuitive clip navigation and on‑screen status overlays. Running the streamlined Blackmagic OS, the Shuttle 4K Pro 2TB integrates seamlessly with ATEM switchers, DaVinci Resolve, Adobe Premiere Pro, and Avid Media Composer for unified media management.
Equipped with a pre‑installed 2TB M.2 PCIe NVMe cache, the Shuttle sustains uninterrupted recording at up to 16 Gb/s, while an SD/UHS‑II card slot and USB‑C expansion port offer flexible external media options. Multi‑codec support includes ProRes HQ/422/LT/Proxy, DNxHD, DNxHR, H.265, and H.264 up to 2160p60, plus playback of ProRes 4444. This comprehensive format compatibility ensures true broadcast masters and efficient proxy workflows for Ultra HD and DCI 4K projects.

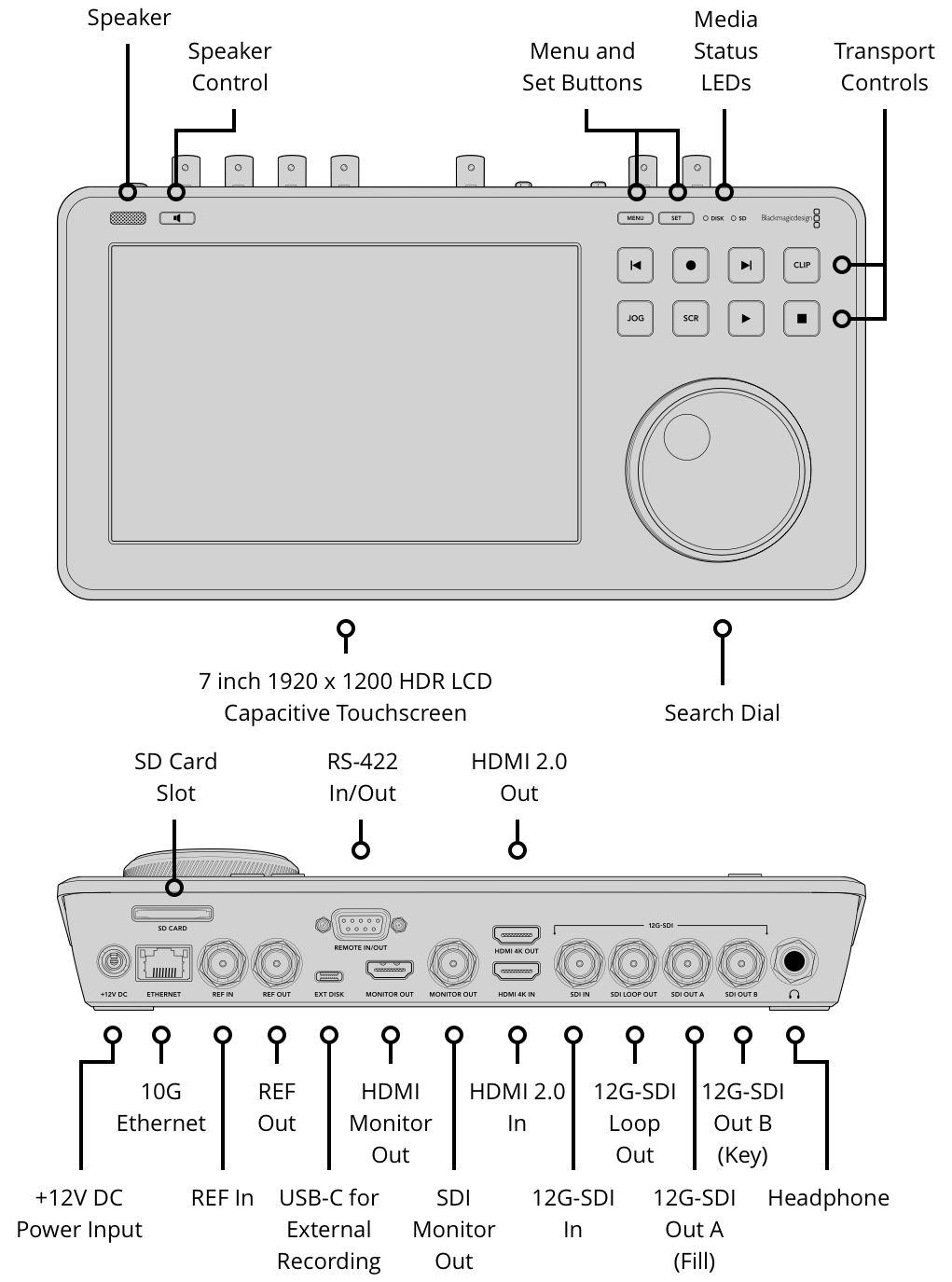

Connectivity is exhaustive and future‑proof, featuring multi‑rate 12G‑SDI and 4K HDMI inputs/outputs, SDI loop‑through, balanced analog audio I/O, RS‑422 deck control, and dual BNC reference ports for tri‑sync/blackburst. A 10Gb Ethernet port enables network recording, remote file transfer, and HyperDeck M.2 storage sharing, while USB‑C webcam output delivers broadcast‑quality 1080 HD to conferencing and streaming applications. A built‑in headphone jack and speaker provide on‑site audio monitoring.
Advanced monitoring tools include broadcast‑quality waveform, RGB parade, vector, and histogram scopes with HDR graticules, picture‑in‑picture and overlay viewing modes for real‑time focus and exposure precision. Teleprompter mode reads RTF and TXT scripts directly on the display, transforming the Shuttle into a dual‑function playback and cueing device. Metadata entry via the digital slate streamlines post‑production tagging, and firmware updates are handled through Blackmagic HyperDeck Setup over USB‑C.
Designed for reliability in any environment, the Shuttle 4K Pro 2TB operates from 0°C to 40°C (32°F–104°F) at up to 90% non‑condensing humidity, drawing just 60W from its locking 12V DC input. Included in the package are the pre‑installed 2TB NVMe card, universal 12V power supply with international adapters, and a one‑year limited manufacturer’s warranty—making it an all‑in‑one solution for high‑end 4K broadcast, streaming, and post‑production workflows.
