Blackmagic HyperDeck Shuttle 4K Pro

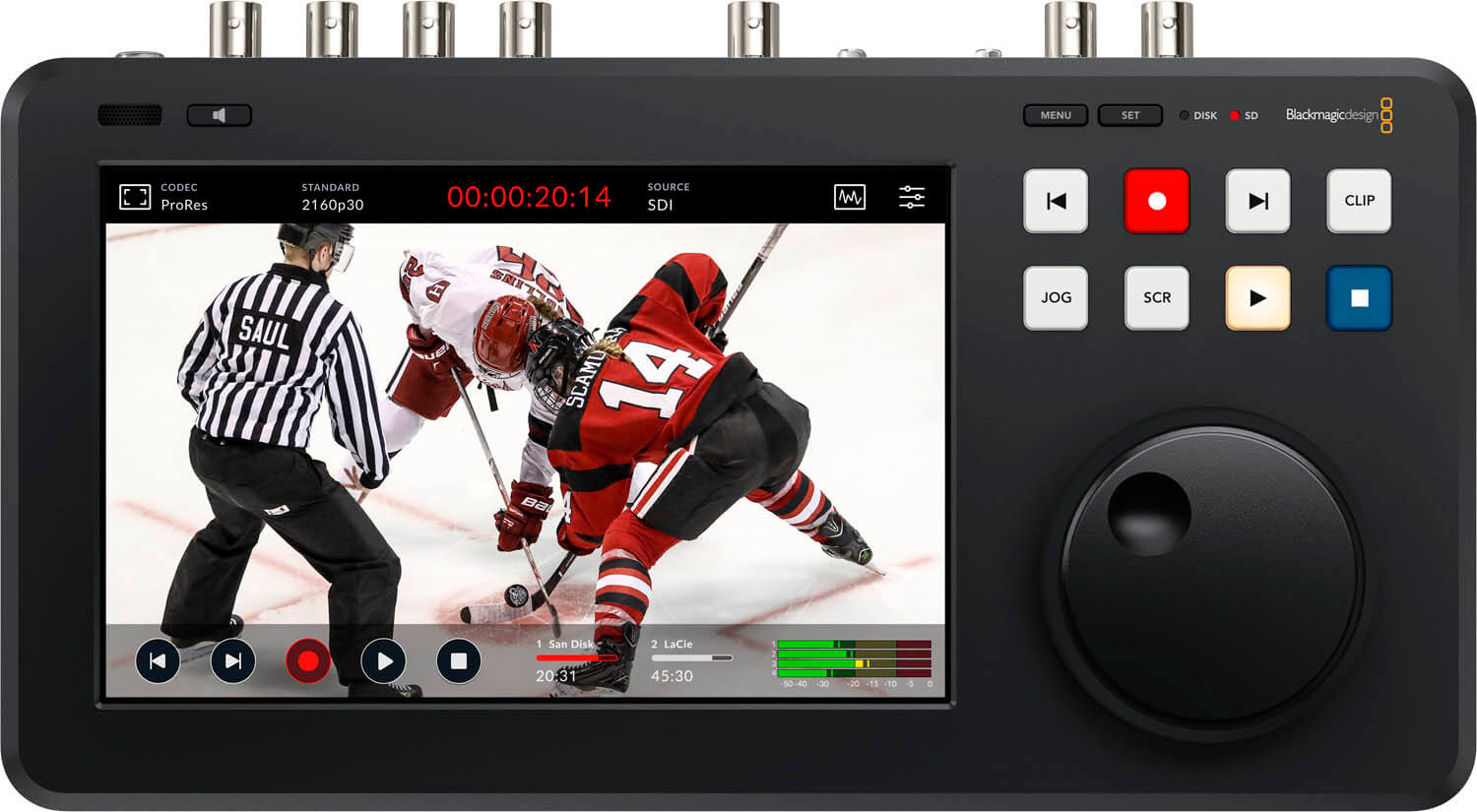

The Blackmagic Design HyperDeck Shuttle 4K Pro is an advanced broadcast‑grade desktop shuttle engineered for professional live production and mastering. Its large 7″ capacitive touchscreen LCD, mechanical transport controls, and precision search dial deliver intuitive clip navigation, on‑screen monitoring, and a heads‑up display overlay—perfect for DCI 4K and Ultra HD workflows. Rugged yet compact, the Shuttle 4K Pro sits neatly beside your ATEM switcher or editing suite for seamless media playback and recording.
Built‑in multi‑codec support lets you record true broadcast masters in ProRes (HQ, 422, LT, Proxy), DNxHD, DNxHR, H.265, and H.264 up to 2160p60. The integrated media engine writes to SD/UHS‑II cards, USB‑C drives, or ultra‑fast M.2 PCIe NVMe cache storage, ensuring uninterrupted recording even under heavy load. Broadcast‑quality waveform, RGB parade, vector, and histogram scopes—with picture‑in‑picture and HDR graticules—provide real‑time 10‑bit monitoring and precision focus assist.

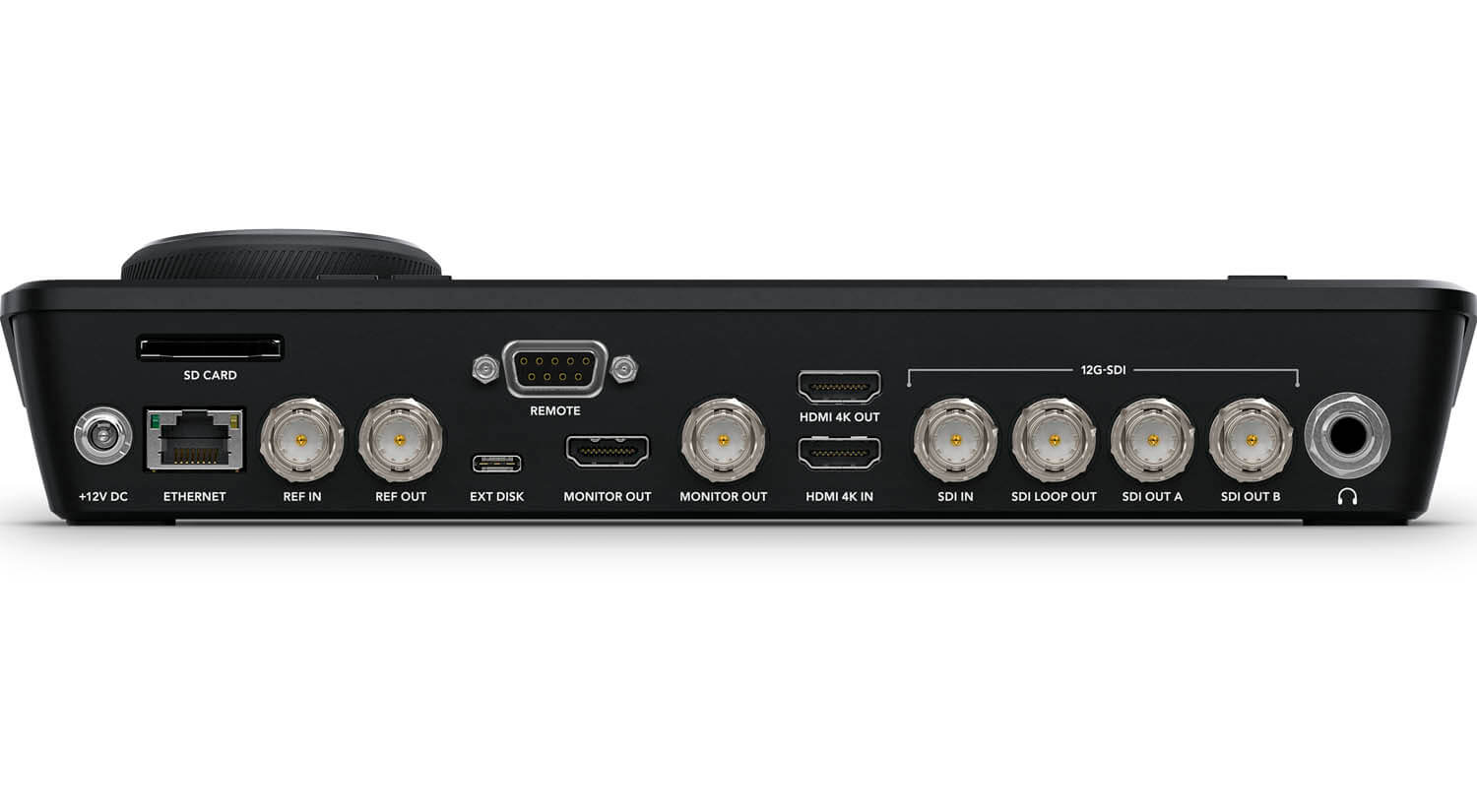

Connectivity is exhaustive: multi‑rate 12G‑SDI and 4K HDMI inputs/outputs, SDI loop‑through, balanced analog audio I/O, reference tri‑sync/blackburst ports, RS‑422 deck control, and 10 Gb Ethernet for network recording, remote file transfers, and Blackmagic Cloud integration. A USB‑C webcam output brings broadcast‑quality 1080 HD into any streaming or conferencing app. Teleprompter mode reads RTF scripts directly on the display, transforming the Shuttle into an all‑in‑one clip player and cueing device.
Powered by Blackmagic OS, the Shuttle 4K Pro integrates natively with ATEM switcher, DaVinci Resolve, Adobe Premiere Pro, and Avid Media Composer. Advanced features include on‑screen 3D LUT loading, direct metadata entry, HDR color management with full DCI‑P3 gamut support, and automatic format detection. Drawing just 60 W from a 12 V DC supply and backed by a 1‑year limited warranty, the HyperDeck Shuttle 4K Pro brings rock‑solid reliability to any high‑end broadcast or streaming workflow.
Blackmagic HyperDeck Shuttle 4K Pro Technical Specifications
Connections
SDI Rates
270 Mb, 1.5G, 3G, 6G, 12G
Audio Output
1 × 6.35 mm headphone jack
Reference Input
1 × BNC In, Tri-Sync or Black Burst
Reference Output
1 × BNC Out
SDI Audio Inputs
64 channels embedded audio
SDI Audio Outputs
64 channels embedded audio
HDMI Audio Inputs
8 channels embedded audio
HDMI Audio Outputs
8 channels embedded audio
Remote Control
1 × RS-422 In
Recorder Configuration
Via user interface on HDMI Out or Blackmagic HyperDeck Ethernet Protocol
Ethernet
1 × 10 Gb/s RJ-45 supporting 1000/10G BASE-T
External Recording
1 × USB-C 3.1 Gen 1 (up to 5 Gb/s) for external disk recording
Computer Interface
1 × USB-C for software updates
Standards
SD Video Standards
525i59.94 NTSC, 625i50 PAL
HD Video Standards
720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30; 1080PsF 23.98/24/25/29.97/30
2K DCI Video Standards
2Kp23.98/24/25/29.97/30 DCI
Ultra HD Video Standards
2160p23.98/24/25/29.97/30/50/59.94/60
4K DCI Video Standards
4Kp23.98/24/25/29.97/30 DCI
SDI Compliance
SMPTE 259M, 292M, 424M
SDI Metadata Support
Television standard 24-bit, 48 kHz sample rate
Supported HDMI Formats
525i59.94 NTSC
625i50 PAL
720p50/59.94/60; 1080i50/59.94/60; 1080p23.98/24/25/29.97/30/50/59.94/60
2Kp23.98/24/25/29.97/30 DCI; 2160p23.98/24/25/29.97/30/50/59.94/60; 4Kp23.98/24/25/29.97/30 DCI
Audio Sampling
Television standard 24-bit, 48 kHz sample rate
Color Precision
REC 601, 709, 2020; 33-point 3D LUTs on SDI monitor out
HDR Support
Hybrid Log-Gamma; ST2084 300/500/800/1000/2000/4000
Multi Rate Support
Auto detect SD, HD, 6G-SDI, 12G-SDI
Copy Protection
HDMI input cannot capture copy-protected sources
Media
Cache Recording
Slot for optional M.2 PCIe NVMe card up to 16 Gb/s; 60/80/110 mm supported
Media
1 × SD card slot; 1 × USB-C 3.1 Gen 1 expansion port (SD, HD, 2K DCI, Ultra HD, 4K DCI)
Media Type
UHS-I & UHS-II SD cards
Media Format
ExFAT (Win/Mac) or HFS+ (Mac)
Supported Codecs
ProRes HQ/422/LT/Proxy QuickTime up to 2160p60;
Playback only ProRes 4444 QuickTime up to 2160p60 with fill/key auto-routing over SDI A/B;
DNxHD 220x/145/45 (MXF/QuickTime) up to 1080p60;
DNxHR HQX/SQ/LB (MXF) up to 2160p60;
H.265 High/Medium/Low 4:2:0 10-bit up to 2160p60;
H.264 SDI 4:2:2 10-bit & 4:2:0 8-bit up to 1080p60.
Control
Built-in Control Panel
Integrated capacitive touchscreen LCD with onscreen menus; 11 buttons + search dial
External Control
11 buttons + search dial
Teleprompter
Multi Rate Support
Outputs 23.98p, 24p, 25p, 29.97p, 30p, 50p, 59.94p, 60p (highest default)
Supported File Formats
Rich text (.rtf), plain text (.txt)
Software
Software Included
Blackmagic OS; Blackmagic HyperDeck Setup
Internal Software Upgrade
Loaded at system start or via HyperDeck Setup (USB)
Operating Systems
macOS 14.0 Sonoma, 15.0 Sequoia or later
Windows 10, 11 (including ARM)
Displays
Built-in LCD for video, audio & timecode monitoring and menu settings
Power Requirements
Power Supply
1 × Locking 5.5 mm barrel 12 V DC In (external/battery use)

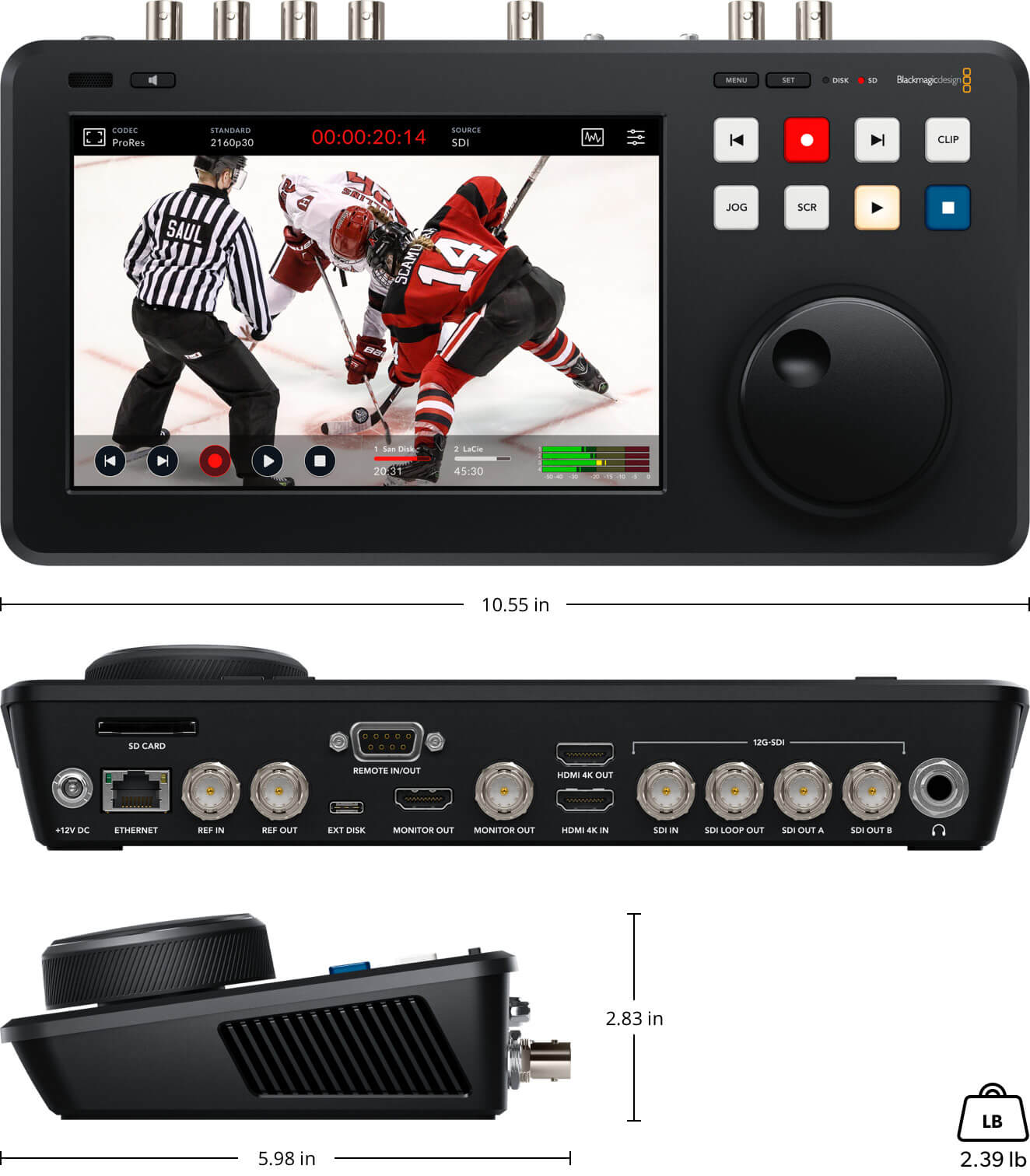

Physical Specifications
Environmental Specifications
Operating Temperature
0° – 40°C (32° – 104°F)
Storage Temperature
–20° – 60°C (–4° – 140°F)
Relative Humidity
0 – 90% non-condensing
Blackmagic Design HyperDeck Shuttle 4K Pro12V universal power supply with international adapters1-Year Limited Manufacturer Warranty
