Blackmagic UltraStudio Express Recorder 3G

Price: $175.00

MSRP: $175.00

Pre-Order Now. Ships ASAP!

As low as .

Click for details on equipment financing.

Quantity:

Estimate Shipping

Make an Offer

Capture HDMI and 3G-SDI video
Transfers Video from Camera to Computer via Thunderbolt 4 or USB4
3G-SDI, HDMI, Thunderbolt / Embedded Audio
Captures Live Feeds and Playback Feeds
Supports Resolutions up to 1080p60
12-Bit Color Precision / 4:2:2 and 4:4:4 Sampling
Real Time Colorspace Conversion
Software Based Down Conversion
Please note that this item requires a true Thunderbolt 4 or USB4 connection on your computer. For more details, please see the description tab below.

Item # BMD-BDLKULSDMAEXREC3G

Mfr # BDLKULSDMAEXREC3G

UPC # 9338716010855

BA # BLULSDAEXR3G

AS #

AD #

Blackmagic UltraStudio Express Recorder 3G

The Blackmagic Design UltraStudio Express Recorder 3G is a compact, pocket-sized video capture device that makes it easy to record or stream high-quality video directly to your computer via a Thunderbolt 4 connection. Designed for professional workflows, it accepts both 3G-SDI and HDMI video sources, supporting YUV and RGB formats at resolutions up to 1080p60.

Powered through its USB-C connection, the UltraStudio Recorder 3G draws power directly from your connected computer, eliminating the need for an external power supply. Its high-speed interface supports a wide range of industry-standard video formats, including Apple ProRes, Avid DNxHD, and 10-bit uncompressed video for exceptional image quality.

Key Features:

Compact, portable design for on-the-go production
Thunderbolt 4 or USB4 connectivity for high-speed video capture
HDMI and 3G-SDI inputs with support for SD and HD video up to 1080p60
Captures uncompressed or compressed 10-bit 4:2:2 YUV and RGB video
Compatible with leading video production

Please note that this item requires a true Thunderbolt 4 connection (typically with the Thunderbolt icon near the connector) on your computer or a USB4 connector.

The UltraStudio Express Recorder 3G is NOT compatible with USB 3. Keep the following in mind:

USB-C port is a type of connector.
USB 3 is an incompatible signal format.
Thunderbolt 3 is a signal format.
Both Thunderbolt 3 and USB 3 are incompatible
Thunderbolt 4 or USB4 are required.

If you do not have a Thunderbolt 4 connection or USB4 connection on your computer (and a Thunderbolt cable or USB4-specific cable), this product will not work for you.

Blackmagic UltraStudio Express Recorder 3G

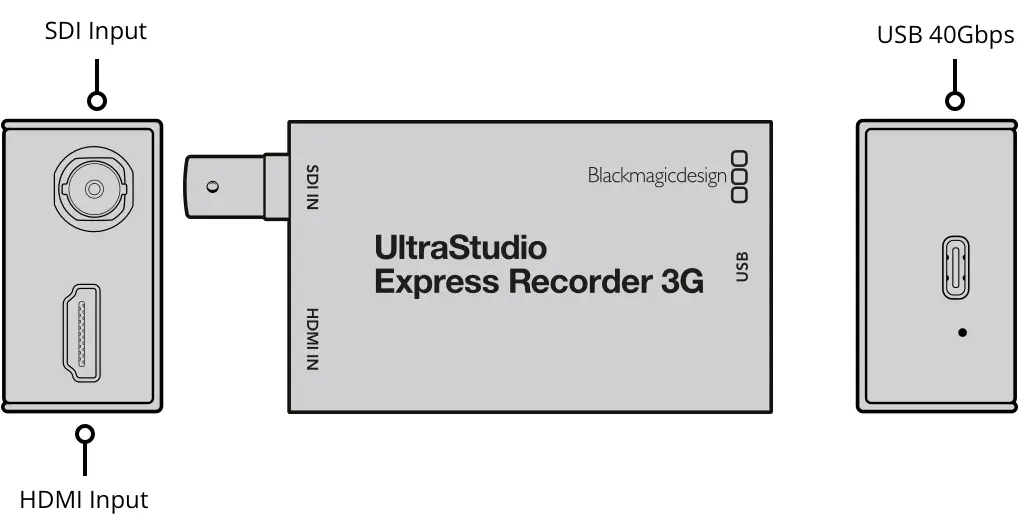

Connections

SDI Video Input
1x 10-bit SD/HD switchable.

HDMI Video Input
1x HDMI 2.0 type A connector.

SDI Audio Input
16 Channels embedded in SD and HD.

HDMI Audio Input
8 Channels embedded in SD and HD.

Computer Interface
Thunderbolt 4 or USB4.

SDI Rates
270Mb, 1.5G, 3G.

Codecs

Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes 422 LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2, Uncompressed 10-bit 4:4:4.

Software

Software Included
Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Internal Software Upgrade
Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Software Applications

Wirecast, vMix, OBS, Cinegy Capture Pro, DevTek EasyMediaSuite, Glookast Capturer, Metus Ingest, Softron MovieRecorder, ToolsOnAir just:in, Burst Video WebClip2Go & [REC]Marker, Zoom.
These are third party applications and support may vary, check with your software vendor.

SDI Video Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

2K Video Standards

2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI

SDI Compliance

SMPTE 259M, SMPTE 274M, SMPTE 296M, SMPTE 424M and SMPTE 425M level A and level B

SDI Meta Support

RP 188/SMPTE 12M-2 and closed captioning.

SDI Audio Sampling

Television standard sample rate of 48 kHz and 24-bit.

SDI Video Sampling

4:2:2 and 4:4:4

SDI Color Precision

8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.

SDI Color Space

Rec 601, Rec 709 and Rec 2020.

Multiple Rate Support

SDI video connection is switchable between SD and HD.

HDMI Video Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60

HDMI Audio Sampling

Television standard sample rate of 48 kHz and 24 bit.

HDMI Video Sampling

4:2:2 and 4:4:4

HDMI Color Precision

8-bit RGB 4:4:4, 8-bit YUV 4:4:4 and 12-bit YUV 4:2:2 in all standards.

HDMI Color Configuration

HDMI 2.0 supports Deep Color.

HDMI Color Space

Rec 601, Rec 709 and Rec 2020.

Multiple Rate Support

HDMI video connection is switchable between SD and HD.

Copy Protection

HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

Processing

Colorspace Conversion
Hardware based real time.

HD Down Conversion
Software based up conversion during video capture.

Hardware Frame Buffer

v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B, R12L (12 bit RGB).

Operating Systems	Mac 15.0 Sequoia, Mac 26.0 Tahoe or later.	Windows 10, 64-bit Windows 11.	Linux
Power Requirements	Powered by USB Type-C cable or Thunderbolt cable. Requires computer with USB4 40Gb/s port or Thunderbolt 4 port.

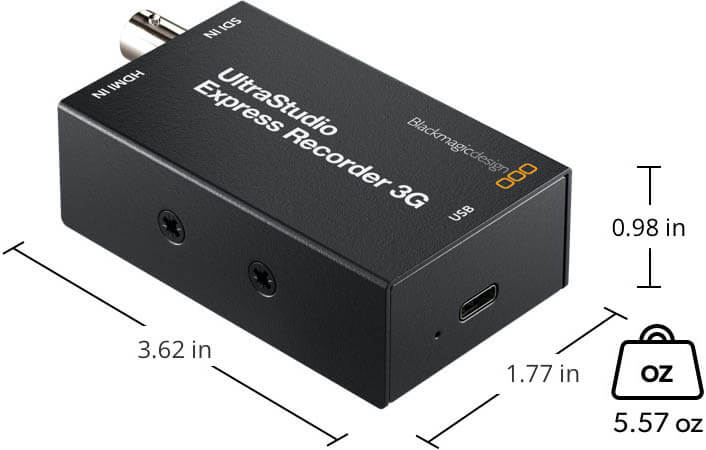

Physical Specifications
Environmental Specifications	Operating Temperature 5˚ to 40˚C (32˚ to 104˚F)	Storage Temperature -20˚ to 45˚C (-4˚ to 113˚F)	Relative Humidity 0% to 90% non-condensing

Blackmagic UltraStudio Express Recorder 3G

What's Included	Blackmagic UltraStudio Express Recorder 3G
Warranty	1 Year Limited Manufacturer's Warranty.
