Blackmagic UpDownCross 100G

Blackmagic UpDownCross 100G

The Blackmagic Design UpDownCross 100G is a professional 1 RU IP video standards converter built for modern 100G broadcast environments. It provides simultaneous conversion of up to eight channels of SMPTE ST 2110 IP video, supporting SD, HD, and Ultra HD formats. With dual 100GbE QSFP28 interfaces and full SMPTE 2022-7 redundancy, the UpDownCross 100G ensures reliable signal delivery by converting IP video streams between different standards while maintaining uninterrupted operation.

Each IP video stream supports up to 16 channels of embedded audio, along with 10-bit 4:2:2 video and support for both Rec. 709 and Rec. 2020 color spaces. Compatible with SMPTE ST 2110-20, ST 2110-21, ST 2110-30, and ST 2110-40 standards, it is designed for demanding live production, broadcast, and IP video workflows.

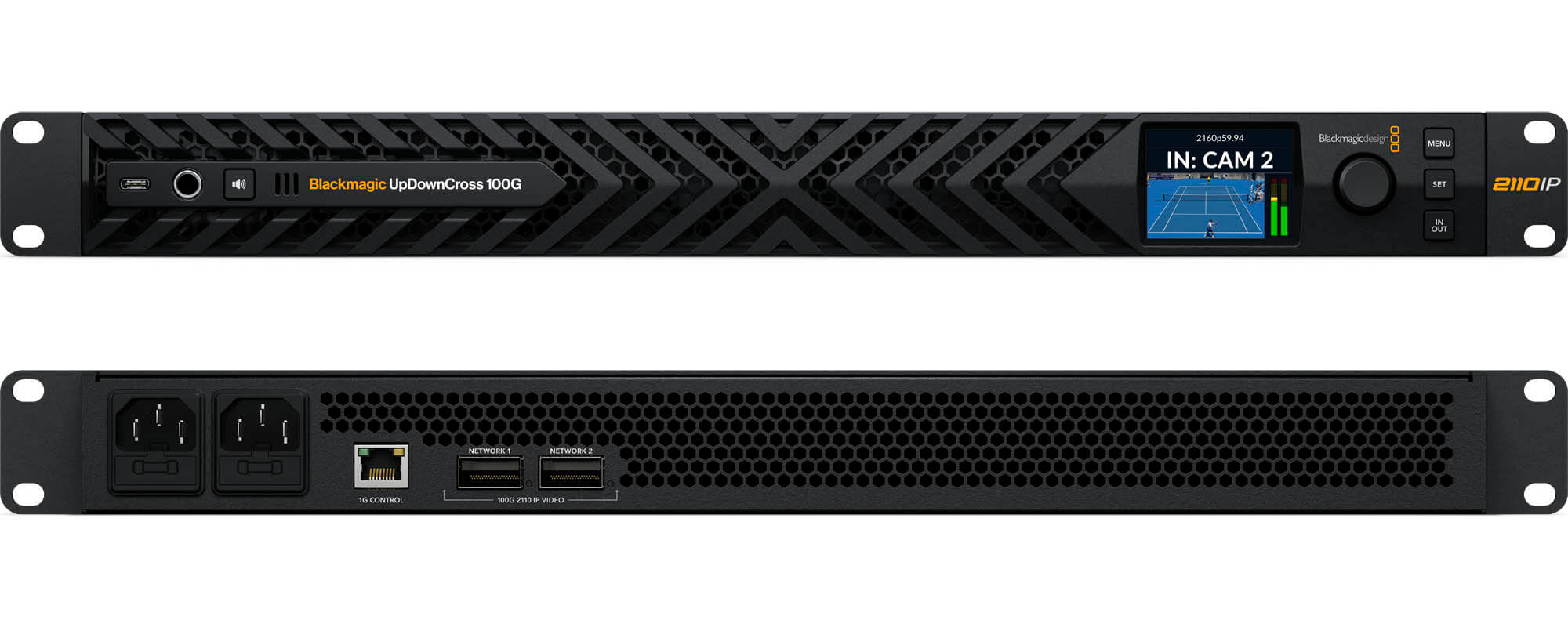

The compact 1 RU design features quiet front-to-back cooling and a user-friendly front panel with a 2.2-inch LCD display, control knob, and buttons for monitoring video, audio, timecode, and system status. Built-in speaker and headphone outputs provide convenient audio monitoring, while dedicated network control is available through an RJ45 NMOS control port. A USB-C connection supports local setup and firmware updates, and dual IEC C14 AC power inputs provide redundant power for mission-critical installations.

IP Video Conversion

• Converts up to 8 channels of SD, HD, or Ultra HD IP video simultaneously
• Dual 100GbE QSFP28 interfaces with SMPTE 2022-7 redundancy
• Supports SMPTE ST 2110-20, ST 2110-21, ST 2110-30, and ST 2110-40 standards
• 10-bit 4:2:2 video support with Rec. 709 and Rec. 2020 color spaces
• Supports up to 16 channels of embedded audio per IP stream

Professional Broadcast Design

• Compact 1 RU rackmount form factor with quiet front-to-back cooling
• Front-panel 2.2" LCD for video, audio, timecode, and system monitoring
• Integrated control knob and buttons for configuration and source selection
• Built-in speaker and headphone output for audio confidence monitoring
• Dedicated RJ45 port for NMOS control, configuration, and updates
• USB-C port for firmware updates and local setup
• Dual IEC C14 AC power inputs for redundant power operation

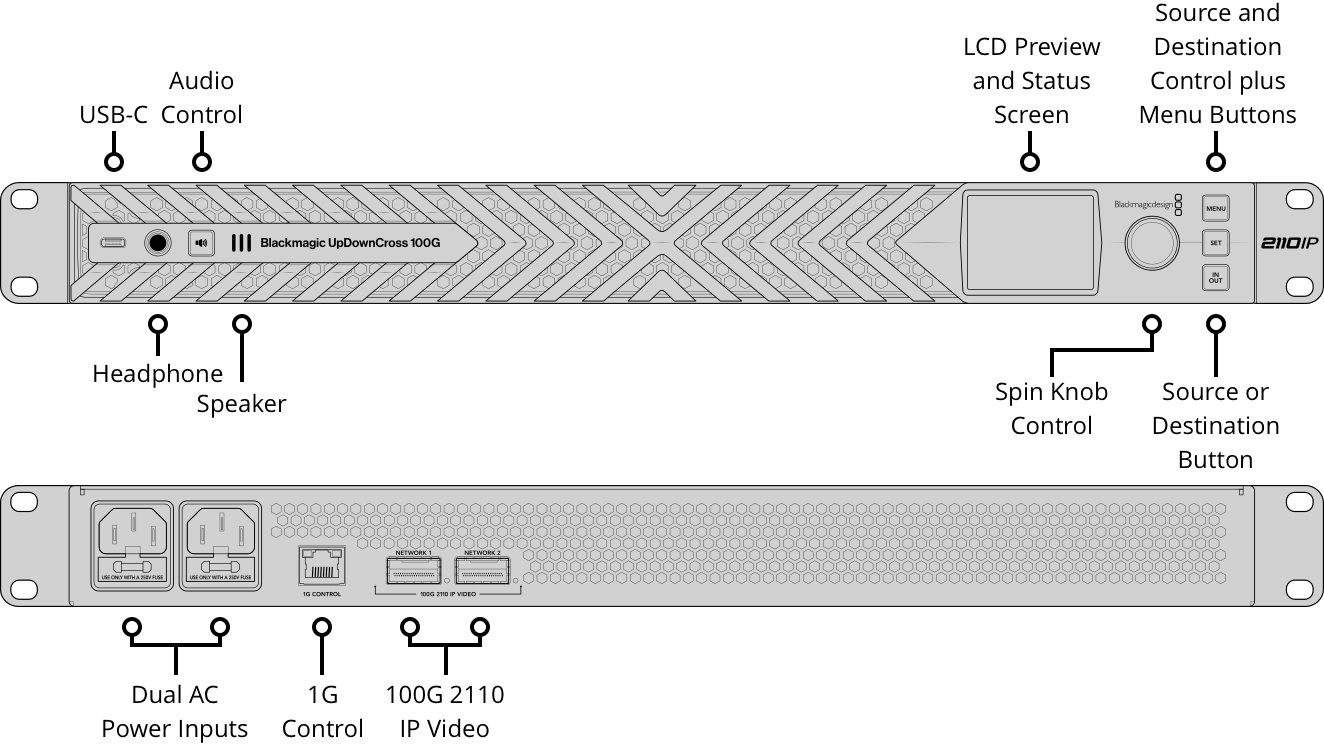

Blackmagic UpDownCross 100G Technical Specifications

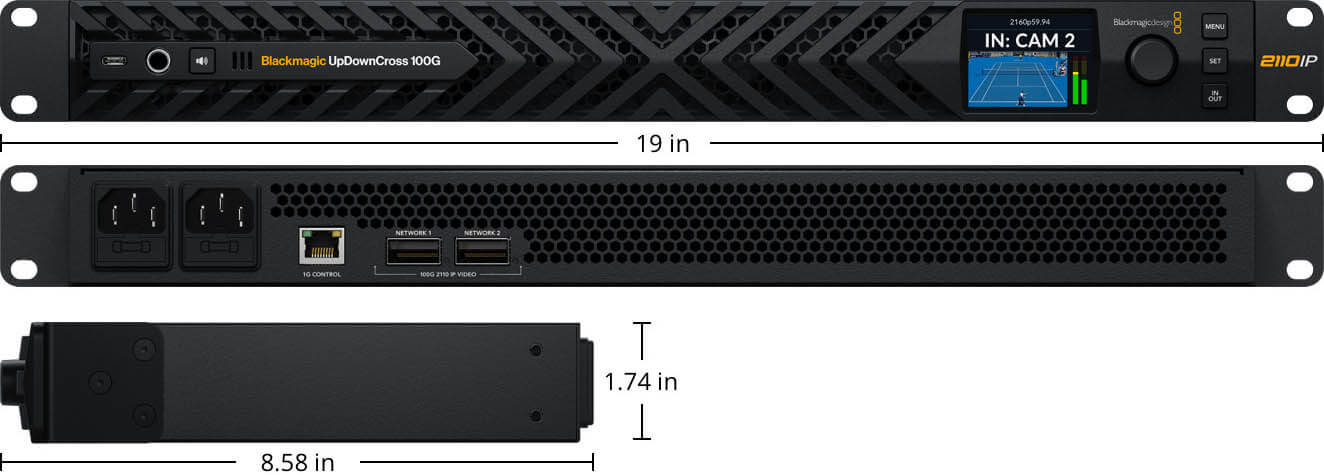

Blackmagic UpDownCross 100G - Weight and Dimensions

Blackmagic UpDownCross 100G - BMD-CONVNVIPJ/STG/100G What's Included
