LIVE STREAMING WITH SCORE OVERLAY

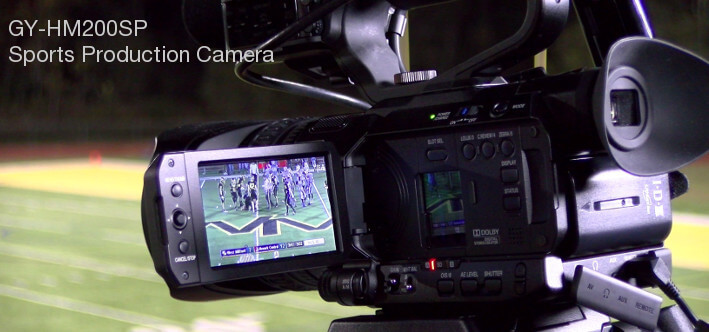

JVC's GY-HM200SP is an innovative, affordable sports production camera that produces professional quality coverage of sporting events, complete with score overlay and game clock without requiring an external switcher or CG. Despite being loaded with advanced professional features for extensive customization, the camera's Full Auto Mode, along with 1-button streaming makes it easy for an untrained operator to use. It's a complete sports production system contained in a compact, affordable camcorder package!

Instant score overlays for most sports Customize with your team's logo Web based score entry from Smartphone or tablet Streams to internet directly from camera Integrated 12x lens with 24x dynamic zoom Records HD/UHD/Proxy to SDHC/SDXC memory 120fps HD recording for slo-mo analysis Options for large viewfinder, rear lens control 2-channel XLR audio inputs Advanced IP remote control and viewing Ideal for single camera, single operator production

In-camera Score Overlays and Customization

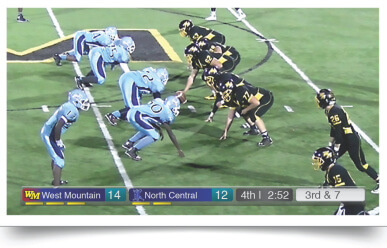

The GY-HM200SP produces a real-time score overlay on recorded and streamed HD video for a variety of popular sporting events including football, basketball, soccer, volleyball, hockey and more. The overlay is produced for both the streamed and recorded video simultaneously. The camera comes with 3 standard home/guest graphic templates.

Users have the ability for the user to manually type in the Home and Guest team names for each event.* JVC will release PC application software which will enable the user to store up to 90 team names and logo bitmaps within the camera. The user can then select "left" and "right" teams from this stored list within the camera. The cost of this PC software is included in the purchase price of the camera, and is available as a free download to owners of the GY-HM200SP.

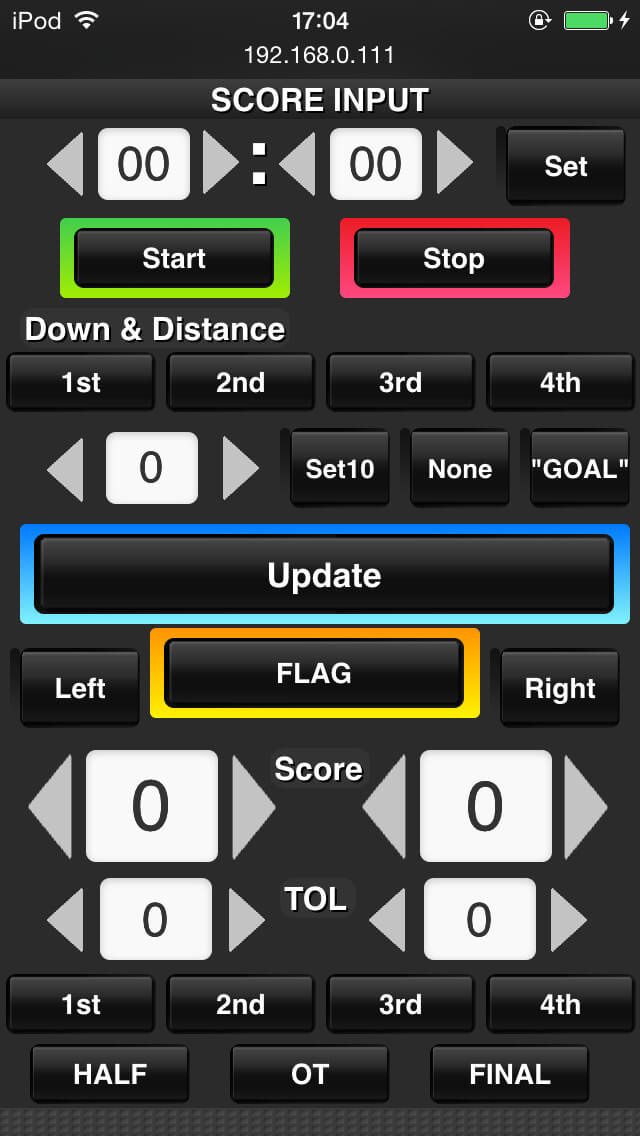

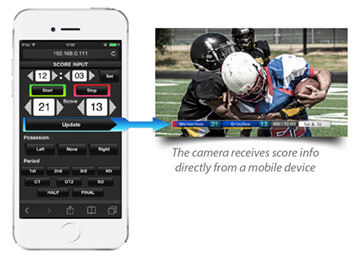

During the game, the camera operator keeps the score updated using an external Wi-fi* connected mobile device such as a smartphone or tablet. It will also be possible for the camera to interface directly to the venue's own scoreboard controller through a wired or wireless interface.

*Optional Wi-Fi adapter or other suitable network connection required. Tablet or other browser-equipped device required.

Integrated 12x Ultra HD Lens, 1/2.3-inch CMOS Sensor

Ultra high quality imagery begins with a precision 12x F1.2-3.5 optical zoom lens (35mm equivalent: 29.6-355mm). JVC's 4K CMOS sensor with 12.4M pixels delivers high sensitivity and excellent performance over a wide range of lighting conditions. Details are crisp and accurate throughout the entire image plane. When shooting in the HD mode, Dynamic Zoom combines optical zoom and pixel mapping to create seamless and lossless 24x zoom. This allows the camera to have a long zoom range while retaining its small form factor. Shooters will also appreciate the convenient ND filter wheel: 0, 1/4th and 1/16th positions.

Dual SDHC/SDXC Card Slots

Dual SDHC/SDXC card slots make the GY-HM200SP a truly versatile camcorder, offering such benefits as simultaneous recording and relay recording. In relay recording mode, you can shoot continuously and seamlessly over multiple cards. When one card is full, the camcorder switches seamlessly and automatically to the other card. And because cards are hot swappable, there is in effect no limit to the continuous shooting time in any mode, even with lower capacity cards.

Web Friendly (Proxy) file formats

Lower resolution H.264 files (480x270p and 960x540p) may be recorded simultaneously with full HD files, or when streaming. These files are significantly smaller than HD files, and thus are very suitable for immediate posting to the web. A file recorded in the 960 x 540 mode is approximately 1/10th the size of a full HD file recorded at 35 Mbps, and therefore takes a fraction of the time to upload post. The smaller files may be quickly imported to an iPad for easy editing using iMovie or Pinnacle Studio. Posting your game to the web has never been faster.

Advanced IP Network Communication and Streaming*

The GY-HM200SP features JVC's latest IP communications engine giving you remote control and monitoring of vital camera and lens functions from a tablet, smartphone, or computer anywhere in the world. Live streaming is possible in HD or lower resolutions, depending on available bandwidth. Sporting events may be streamed to a decoder at a cable head-end, or directly to the internet through a content delivery network such as YouTube, Ustream or Wowza server. Just press one button and you're streaming to the world! And while streaming, the camera continues to function as a high quality, full HD camcorder giving you a pristine copy of the game.

Main features:

• Single 1/2.3-inch CMOS image sensor with 12.4 million pixels
• High quality integrated 12x F1.2-3.5 zoom lens (35mm equivalent: 29.6-355mm)
• Graphic score overlay with custom logo option (HD mode only)
• Dynamic Zoom in HD mode combines optical zoom and pixel mapping to create seamless and lossless 24x zoom.
• 4K Ultra HD recording (150 Mbps, 24/30p) to SDXC(UHS-I Speed class3) card
• 4K Ultra HD recording (70 Mbps, 24/30p) to SDXC/SDHC(Class 10) card
• 4:2:2 Full HD (24-60p) recording at 50Mbps
• 120fps HD recording
• Live 4K UHD output via HDMI connector
• 2 position ND filter (1/4, 1/16)
• HD-SDI (3G) and HDMI outputs (4K output via HDMI only)
• HD-SDI and HDMI outputs can feed and trigger external recorder
• 2-channel XLR audio inputs with phantom power
• Built-in stereo microphone
• Dual SDHC/SDXC slots enable dual, backup and continuous recording
• Advanced JVC streaming engine compatible with USTREAM, Zixi and Wowza Streaming Engine
• IP Network Remote Control, Remote Viewing, Scorekeeping, Metadata editing, FTP clips*
• 3.5-inch color LCD display (920K pixel) with smart focus assist function
• 0.24-inch color viewfinder (1.56M pixel) with smart focus assist function
• Histogram Display
• Wired remote control supported
• 9 user button assignable functions
• Includes handle unit and SSL-JVC50 7.4V battery, AC Adapter
  External microphone not included

JVC GY-HM200SP - Sports Production Streaming Camcorder Specifications

GENERAL SPECIFICATIONS
Power	DC 12V (AC adapter), DC 7.4V (Battery)
Power Consumption	Approx. Approx. 7.9W （with VF in 4K REC mode, default setting）
Weight	Approx. 3.53 lb (1.6kg) (including battery)
Dimensions	149(W) x 191(H) x 307(D)mm
Operation temperature	0℃ to 40℃ (32°F to 104°F)
Storage temperature	-20℃ to 50℃ ( 14°F to 122°F)
Operating humidity	30% to 80%
Storage humidity	under 85%
CAMERA
Image Sensor	1/2.3-inch Back Side Illuminated CMOS Total 12.4M pixels
Synchronizing	Internal synchronization
Stabilizer	Optical image stabilizer
Shutter speed	1/6～ 1/10000
Lens	F1.2 (wide) to F3.5 (tele) f=4.67mm to 56.04mm 35mm equivalent: 29.6mm to 355mm
Filter diameter	62mm
Gain	0, 3, 6, 9, 12, 15, 18,21,24 dB, Lolux(30,36 dB), AGC
ND filter	none , 1/4, 1/16
LCD display	3.5-inch 920 k pixels, 16:9
Viewfinder	0.24-inch 1.56 M pixel, 16:9
VIDEO/AUDIO RECORDING
Recording media	2x SDHC/SDXC memory card (4K:UHS-1 U3, HD:50Mbps Class10, HD:35Mbps Class6, AVCHD/SD Class4)
Video recording	Video codec: MPEG-4 AVC/H.264 (4K/HD/SD/Proxy) ,AVCHD(HD/SD)
	File format : MOV(H.264), MTS(AVCHD)
4K(H.264)	NTSC setting: 3840 x 2160/29.97p, 23.98p (70,150 Mbps) PAL setting: 3840 x 2160/25p (70,150Mbps) PAL setting: 3840 x 2160/25p
HD(H.264)	NTSC setting: YUV422 mode:1920 x1080/59.94p.29.97p,23.98p(50Mbps), XHQ mode: 1920x1080/59.94p,29.97p,23.98p(50Mbps) UHQ mode: 1920x1080/59.94i,29.97p, 23.98p(35Mbps) 1280x720/59.94p(35Mbps) PAL setting: XHQ mode:1920 x 1080/50p(50Mbps) XHQ mode:1920x1080/50p,50i,25p(50Mbps),1920x1080/50i,25p(35Mbps), 1280x720/50p(35Mbps)
AVCHD	NTSC setting: Progressive mode(Max 28Mbps):1920 x 1080/59.94p, HQ mode(24Mbps):1920 x 1080/59.94i, SP mode(17Mbps):1920 x1080/59.94i LP mode(9Mbps):1440 x 1080/59.94i (Web mode), EP mode(5Mbps):1440 x1080/59.94i (Web mode) PAL setting: Progressive mode(Max 28Mbps):1920 x 1080/50p, HQ mode(24Mbps):1920 x 1080/50i, SP mode(17Mbps):1920 x1080/50i LP mode(9Mbps):1440 x 1080/50i (Web mode), EP mode(5Mbps):1440 x1080/50i (Web mode)
SD(MOV/AVCHD)	NTSC setting: 720 x 480/59.94i (8 Mpbs)
Proxy(H.264)	NTSC setting: HQ mode(3Mbps):960 x 540/29.97p, 23.98p, LP mode(1.2Mbps):480 x 270/29.97p, 23.98p PAL setting: HQ mode(3Mbps):960 x 540/25p, LP mode(1.2Mbps):480 x 270/25p
Audio recording	LPCM 2ch, 48kHz/16-bit(4k/HD/SD MOV)), AC3 2ch(AVCHD), μlow 2ch(Proxy)
LIVE VIDEO STREAMING
Protocol	RTMP, MPEG2-TS/UDP, MPEG2-TS/TCP, RTSP/RTP, ZIXI
Bitrate	0.2 - 12 Mbps
Resolution	1920x1080, 1280x720, 720x480, 480x270
INTERFACE
Video output	AV output (φ3.5mm mini jack x1) SDI output (BNC x1) HDMI output x1
Audio input	XLR x2 (MIC,+48V/LINE), φ3.5mm mini jack x1
Audio output	AV output (φ3.5mm mini jack x1)
Headphone	φ3.5mm mini jack x1
Remote	φ2.5mm mini jack x1
USB	HOST x1(Network Connection) , DEVICEx1(Mass storage) Supported devices: Verizon, AT&T 4G LTE modems, Wi-Fi and LAN adapters
Network Function	Live Video Streaming, FTP, Remote Control

• JVC GY-HM200SP Sports Production Streaming Camcorder
• Handle Unit
• SSL-JVC50 7.4V IDX Lithium-Ion Battery for JVC Camcorders
• AC Adapter
• Limited 1-Year Warranty (Upgrade to 3-year warranty with registration)
