Blackmagic Duplicator 4K

Price: $1,995.00

MSRP: $1,995.00

More on the way. Order Now! Call / estimated date.

As low as .

Click for details on equipment financing.

Quantity:

Estimate Shipping

Make an Offer

Record on up to 25 SD Cards
Real-Time H.265 Encoding
Scalable for Larger Projects
SDI and Optical Video I/O
Ethernet Control
Single File Recording
Simultaneous Card Formatting
Blackmagic Duplicator Software

Item # BMD-HYPERD/VDUP25/12G

Mfr # HYPERD/VDUP25/12G

UPC # 9338716003918

BA # BLD4K

AS # B01EKKSN86

AD # BMDU4K

Blackmagic Duplicator 4K

Now you can immediately sell content at live events the moment they finish! The Blackmagic Duplicator 4K allows you to deliver Ultra HD content to consumers using the latest technology H.265 files recorded onto inexpensive SD cards. You get realtime H.265 encoding and multi rate 12G-SDI connections for recording all SD, HD and Ultra HD formats up to 2160p60, along with 25 built in SD card recorders. That means you can shoot, record, merchandise and deliver content that customers can actually view on their 4K televisions and Windows 10 computers today!

Blackmagic Duplicator 4K

SD Card Support

Class 10 minimum, will support UHS-I and UHS-II cards.

Standards

SD Video Standards
525i59.94 NTSC, 625i50 PAL

HD Video Standards
720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
1080PsF23.98, 1080PsF24, 1080PsF29.97, 1080PsF25
1080i50, 1080i60

Ultra HD Format Support
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60.

SDI Compliance
SMPTE 259M, 292M, 296M, 425M

Audio Sampling
Television standard sample rate of 48 kHz and 24 bit uncompressed.

Video Sampling
4:2:2

Connections

SDI Video Input
1 x 10 bit SD/HD/UHD auto switching

SDI Video Output
Automatically matches the SD/HD/UHD 12G-SDI input.

HDMI Video Input
1 x HDMI type A connector

SDI Audio Input
16 channels embedded.

SDI Audio Output
16 channels embedded.

Optical Input
1 x 10 bit SD/HD/UHD auto switching.

Optical Output
1 x 10 bit SD/HD/UHD auto switching.

SD Card Interface
25x SD Card Slots

Device Control
Sony-compatible RS422 deck control port x 2. 1 x in plus 1 x out.

Computer Interface
1 x USB 2.0 Mini-port for software updates and Blackmagic Duplicator software control.

Ethernet
Ethernet supports 10/100/1000 BaseT.

Codec Support

Supports H.265@ 4:2:0 with AAC audio

Software

Software Included
Blackmagic Duplicator

Internal Software Upgrade
Firmware built into software driver. Loaded at system start, or via updater software.

Display

1x built in high res LCD 320 x 240 for menu settings, status, format, audio level and total number of SD cards.

Operating Systems

Mac OS X 10.9 Mavericks,
Mac OS X 10.10 Yosemite,
Mac OS X 10.11 El Capitan or later.

Windows 8.1 or Windows 10.

Power Requirements

Power Supply
IEC Connector with fuse.
110v-240v

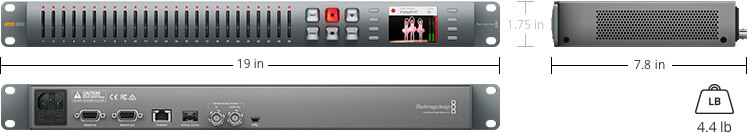

Physical Specifications

Environmental Specifications

Operating Temperature
5˚ to 50˚ C Environment

Storage Temperature
-20˚ to 50˚C (-4˚ to 113˚F)

Relative Humidity
0% to 90% non-condensing

Blackmagic Duplicator 4K

What's Included	Blackmagic Duplicator 4K Software SD Card
Warranty	12 Month Limited Manufacturer's Warranty.
