Blackmagic MultiView 4

Price: $545.00
MSRP: $545.00
More on the way. Order Now! Call / estimated date.
    As low as .
    Click for details on equipment financing.
    Optional Teranex Smart Panel:

    Adds color LCD, spin dial, control buttons, and menu control.



    Update price
    Quantity:
    Make an Offer
    • 4x 6G-SDI Inputs with Loop Outputs
    • 1x SDI & 1x HDMI MultiView Outputs
    • Supports SD, HD, UHD 4K, DCI 4K
    • Independent Inputs Allow Mixing Formats
    • Standard 2x2 Configuration
    • Ethernet for Remote Control
    • 1 RU Height Machined Aluminum Chassis
    • Built-In Multi-Voltage Power Supply
    • Accepts 48 VDC PoE+
    Item # BMD-HDL-MULTIP6G/04
    Mfr # HDL-MULTIP6G/04
    UPC # 9338716003888
    BA # BLMV4
    AS # B01EKIH3L6
    AD # BMMULTIV4

    Blackmagic MultiView 4

    Blackmagic MultiView 4 is a multi viewer that lets you monitor 4 completely independent SDI video sources on a single display! Featuring 4 6G-SDI inputs with full re-synchronization, MultiView 4 lets you monitor any combination of SD, HD and Ultra HD video formats and frame rates all at the same time. Blackmagic MultiView 4 can output to both 1080 HD and 2160p Ultra HD displays so you connect it to either regular HD or Ultra HD televisions. If you connect an Ultra HD television or monitor, you can take advantage of the extra resolution of Ultra HD and see full resolution 1920 x 1080 HD in each view for incredible sharpness! You can even turn on audio meter overlays, custom labels and more in each view!

    Blackmagic MultiView 4

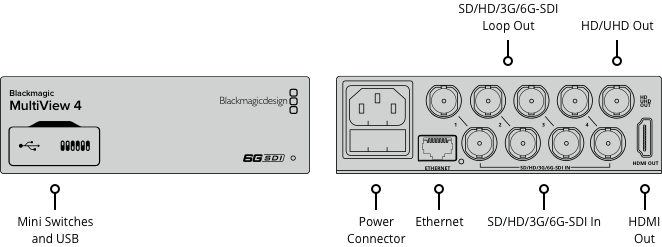

    Connections

    SDI Video Input
    4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

    SDI Video Loop Output
    4 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

    SDI Video Multi View Outputs
    1 x 10-bit HD-SDI and 10 bit 6G-SDI

    HDMI Video Multi View Outputs
    1 x HDMI type A connector. Output supports EDID of the monitor.

    Multi Rate Support
    Auto detection of SD, HD or 6G-SDI. Simultaneous viewing of 4K, HD and SD video.

    Updates
    USB or Ethernet.

    Control
    Optional front mounted Teranex Mini Smart Panel with LCD, rotary knob and six settings buttons.

    Configuration
    RJ45 Ethernet or USB 2.0 for firmware updates and IP address setting.

    Reclocking
    On all SDI outputs, auto switching between standard definition, high definition or 6G-SDI video.
    Blackmagic MultiView 4

    Standards

    SD Format Support
    525i29.97 NTSC, 625i25 PAL

    HD Format Support
    720p50, 720p59.94,720p60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50,1080p59.94, 1080p60
    1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
    1080i50, 1080i59.94, 1080i60

    2K Format Support
    2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p
    2K 23.98 PsF, 2K 24 PsF, 2K 25 PsF.

    Ultra HD Format Support
    2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30

    4K Format Support
    2160p24

    SDI Compliance
    SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656 and ITU-R BT.601.

    SDI Video Rates
    SDI video inputs are switchable between standard definition, high definition and 4K. SDI switches between 270 Mb/s standard definition SDI, 1.5 Gb/s HD-SDI, 3G-SDI and 6G-SDI.

    SDI Video Sampling
    4:2:2 and 4:4:4.

    SDI Audio Sampling
    Television standard sample rate of 48kHz and 24-bit.

    SDI Color Precision
    10-bit 4:2:2 and 4:4:4.

    SDI Color Space
    YUV or RGB for inputs, YUV for outputs.

    SDI Auto Switching
    Automatically selects between SD-SDI, HD-SDI, and 6G-SDI on each input so that each input can be running a different television standard.

    SDI Metadata Support
    Video payload identification ancillary data as per SMPTE 352M.

    Display

    		 Optional Teranex Mini Smart Panel with 1.5” LCD for menu settings.

    Operating Systems

    		Mac Icon

    Mac OS X 10.10 Yosemite,

    		Windows Icon

    Windows 8.1 or Windows 10..

    Software

    		 Software Control
    Multi view software included free for Windows and Mac OS X.    		 Internal Software Upgrade
    Via included updater application.

    Power Requirements

    		Power Fail Protection
    MultiView 4 settings preserved and restored instantly at power on.

    Power Supply
    IEC power cable required. 90 - 240V AC input.

    Power over Ethernet
    Can be powered via 48V DC using PoE+ (power over ethernet)

    		 Power Consumption
    16 Watts

    Physical Specifications

    		Blackmagic MultiView 4

    Environmental Specifications

    		 Operating temperature:
    0˚ to 40˚ C (32˚ to 104˚ F)    		 Storage temperature:
    -20˚ to 45˚ C (-4˚ to 113˚ F)    		 Relative Humidity:
    0% to 90% non-condensing

    Blackmagic MultiView 4

    What's Included
    • Blackmagic MultiView 4
    • SD card with software and manual

    Warranty

    		 3 year Limited Manufacturer's Warranty.
