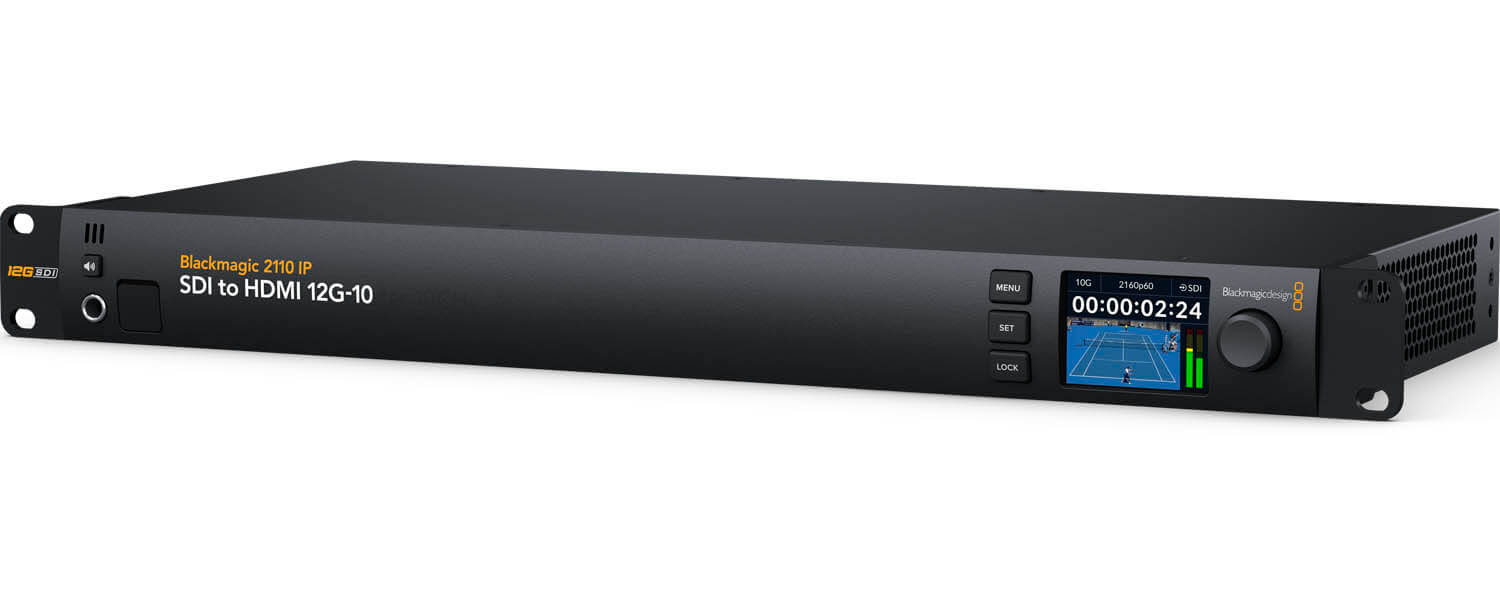

The Blackmagic Design 2110 IP UpDownCross 12G Converter is a professional broadcast‑grade standards converter designed to bridge 12G‑SDI and SMPTE 2110 IP video with HDMI 2.0 monitoring. Housed in a rugged 1 U rackmount chassis, it seamlessly converts incoming SDI or IP streams into native Ultra HD and 4Kp60 HDMI outputs, making it ideal for color‑critical monitoring on OLED panels, live production control rooms, and post‑production grading suites.

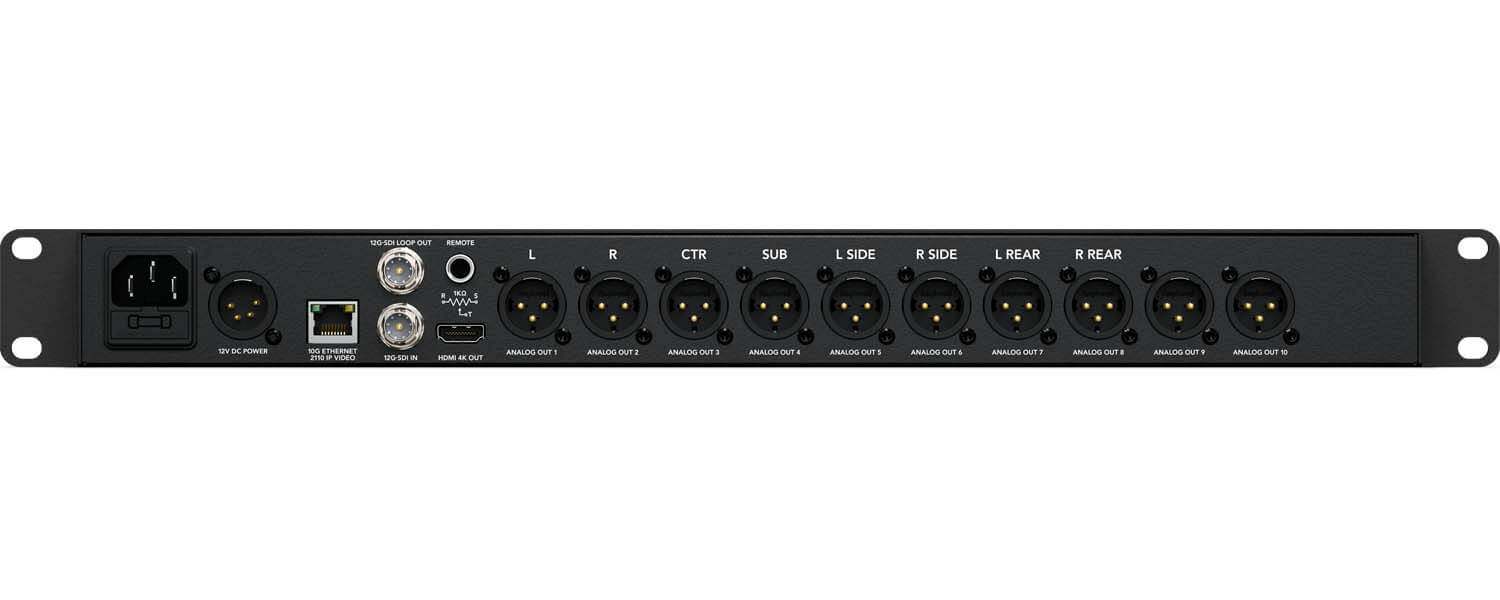

On the rear panel, a multirate 12G‑SDI input with loop‑through BNC maintains continuity in SDI chains, while a dedicated HDMI 2.0 output delivers pristine 3840×2160p60 video. A 10 Gb/s Ethernet RJ‑45 port ingests SMPTE 2110‑20 uncompressed video, 2110‑30 PCM audio, and 2110‑40 ancillary data streams. Ten 3‑pin XLR analog outputs supply up to ten channels of audio monitoring, and a front‑panel ¼″ headphone jack provides critical cueing. Reference BNC I/O ensures PTP genlock synchronization across all connected devices.

Fully compliant with SMPTE 2110‑21 traffic shaping (narrow/wide), Precision Time Protocol (IEEE 1588‑2008/ST 2059), and NMOS IS‑04/IS‑05, the converter integrates smoothly into IP‑managed broadcast infrastructures. The low‑latency Blackmagic IP10 codec engages automatically when converting high‑frame‑rate 2160p59.94/60 sources to 10G IP video, ensuring glitch‑free delivery over managed networks. Automatic format detection and multi‑tap video filtering preserve image fidelity across SD, HD, UHD, and DCI 4K standards.

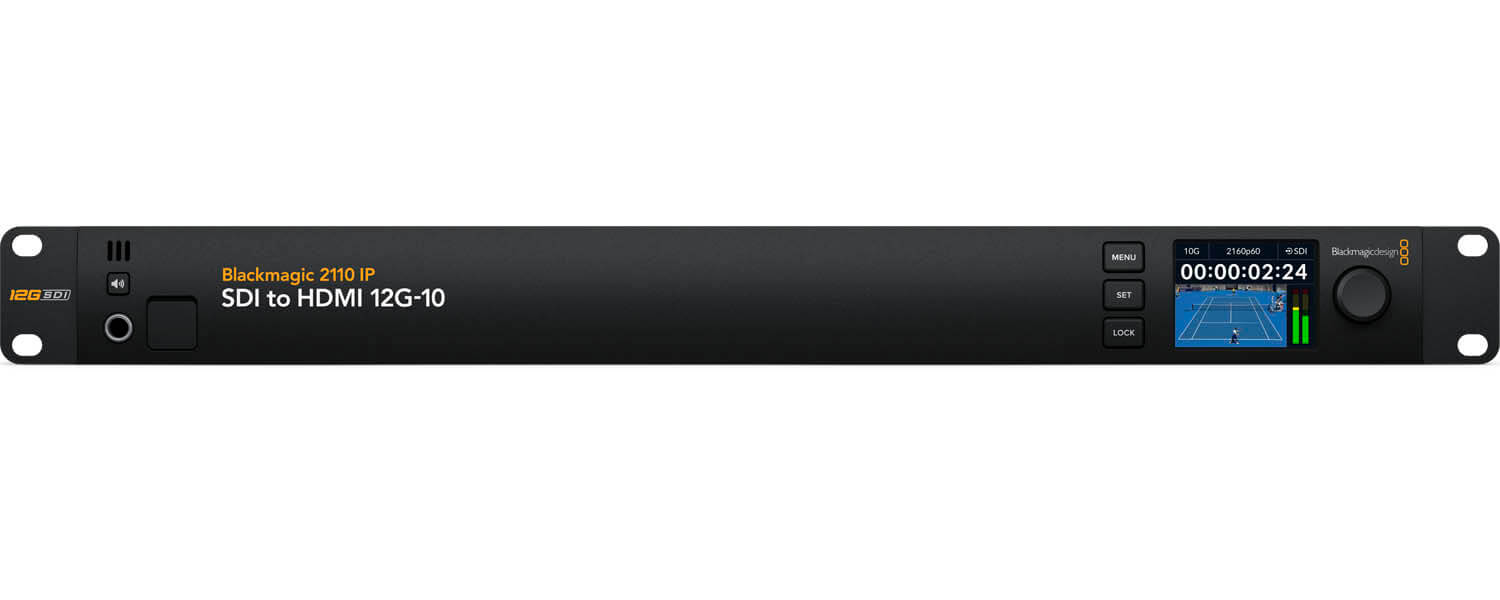

User interaction is straightforward via the built‑in 2.2″ color LCD, four illuminated pushbuttons, and a precision spin knob for menu navigation, on‑screen routing, and status monitoring. Variable audio gain and delay controls keep picture and sound perfectly in sync, while on‑board 3D LUT loading allows accurate color calibration without external equipment. Real‑time video scopes and audio meters provide instant feedback, streamlining setup and troubleshooting in live environments.

Power options include an internal 100–240 VAC supply (IEC C14) and a locking 4‑pin XLR +12 V DC input for battery operation. Drawing just 18W, the converter operates reliably from 0°C to 40°C with up to 90% non‑condensing humidity. Backed by a one‑year limited manufacturer’s warranty and bundled with a welcome wallet QR code for software downloads, the 2110 IP SDI to HDMI 12G‑10 delivers a turnkey, broadcast‑quality monitoring solution for any SDI/IP‑to‑HDMI workflow.

Blackmagic 2110 IP SDI to HDMI 12G-10 Technical Specifications

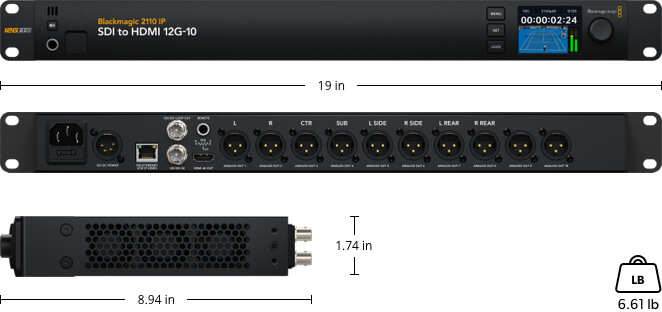

Blackmagic 2110 IP SDI to HDMI 12G-10 - Weight and Dimensions
