Blackmagic PYXIS Monitor EVF Kit
The Blackmagic Design PYXIS Monitor EVF Kit is a versatile high‑brightness viewfinder and control extension engineered for Blackmagic PYXIS and URSA Cine cameras. Built around a 5" capacitive touchscreen LCD with full 1920 x 1080 resolution, it transforms your camera into a precision monitoring and control station—ideal for run‑and‑gun ENG, documentary shoots, and multi‑camera productions. The EVF Kit bundles the monitor with swipe‑on sunshade, swivel and fixed mounts, dovetail shoe, carbon fiber rod mounts, and locking USB‑C cables for rapid deployment on any rig.
At the heart of the kit, the HDR‑capable LCD delivers 1500 nits of brightness and supports up to 60 fps for smooth, clear image review—even in direct sunlight. The touchscreen interface provides on‑screen overlays and status readouts: false color, focus assist, zebras, frame guides, safe area markers, 3D LUTs, and full camera menus including frame rate, shutter angle, iris, ISO, white balance, tint, timecode, record start/stop, media playback, and audio levels. Three assignable function buttons let you recall presets or toggle tools like clean feed, status text, and false color with a single tap.

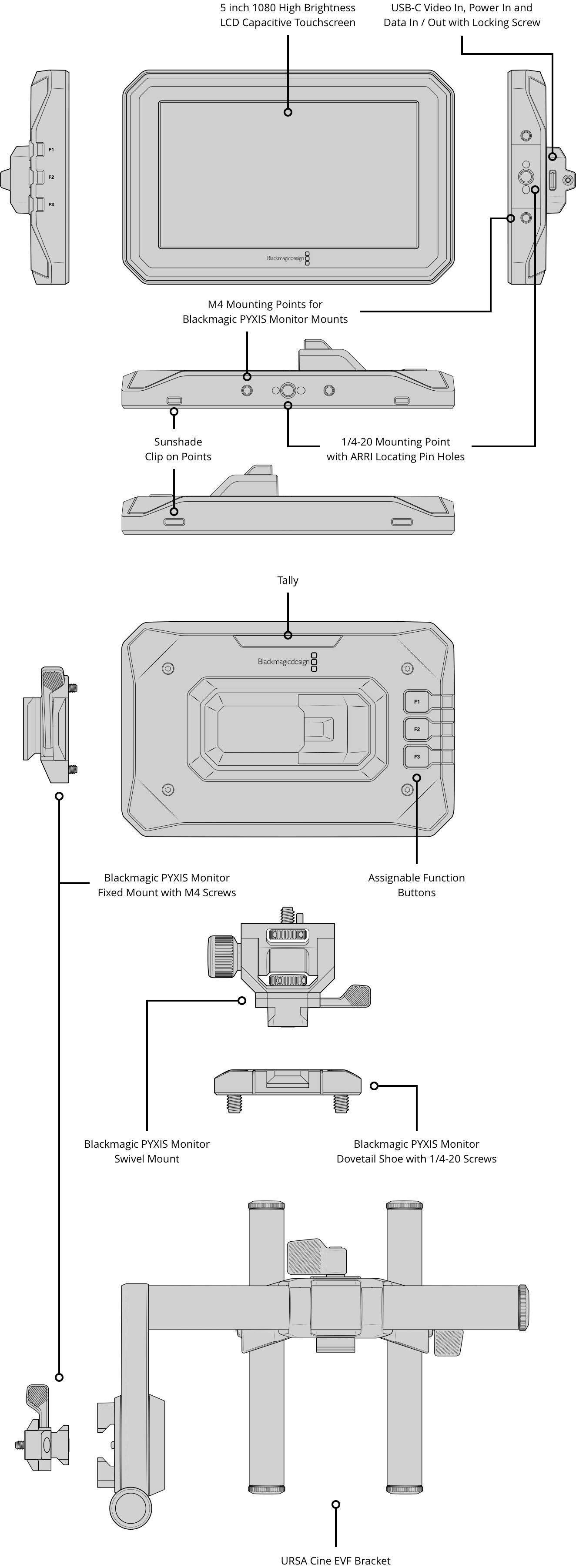

Mounting versatility is built in. The monitor features multiple ARRI anti‑twist 1/4″‑20 and M4 threaded points on both bottom and side for secure attachment to camera cages, gimbals, tripods, or shoulder rigs. The EVF Kit includes the Blackmagic PYXIS Monitor Swivel and Fixed Mounts, a dovetail shoe with screws, URSA Cine EVF bracket, rotating carbon fiber rod mount, and both long and short USB‑C viewfinder cables with locking bolts—ensuring a rock‑solid connection and flexible positioning.
Connectivity is simplified through a single locking USB‑C connector that carries video, power, data, and firmware updates. The built‑in accelerometer automatically rotates the display when mounted upside down, maintaining intuitive controls regardless of orientation. Native support for macOS (Ventura, Sonoma) and Windows 10/11 via the free Blackmagic software enables firmware updates, custom 3D LUT loading, and extended camera control over the same cable.

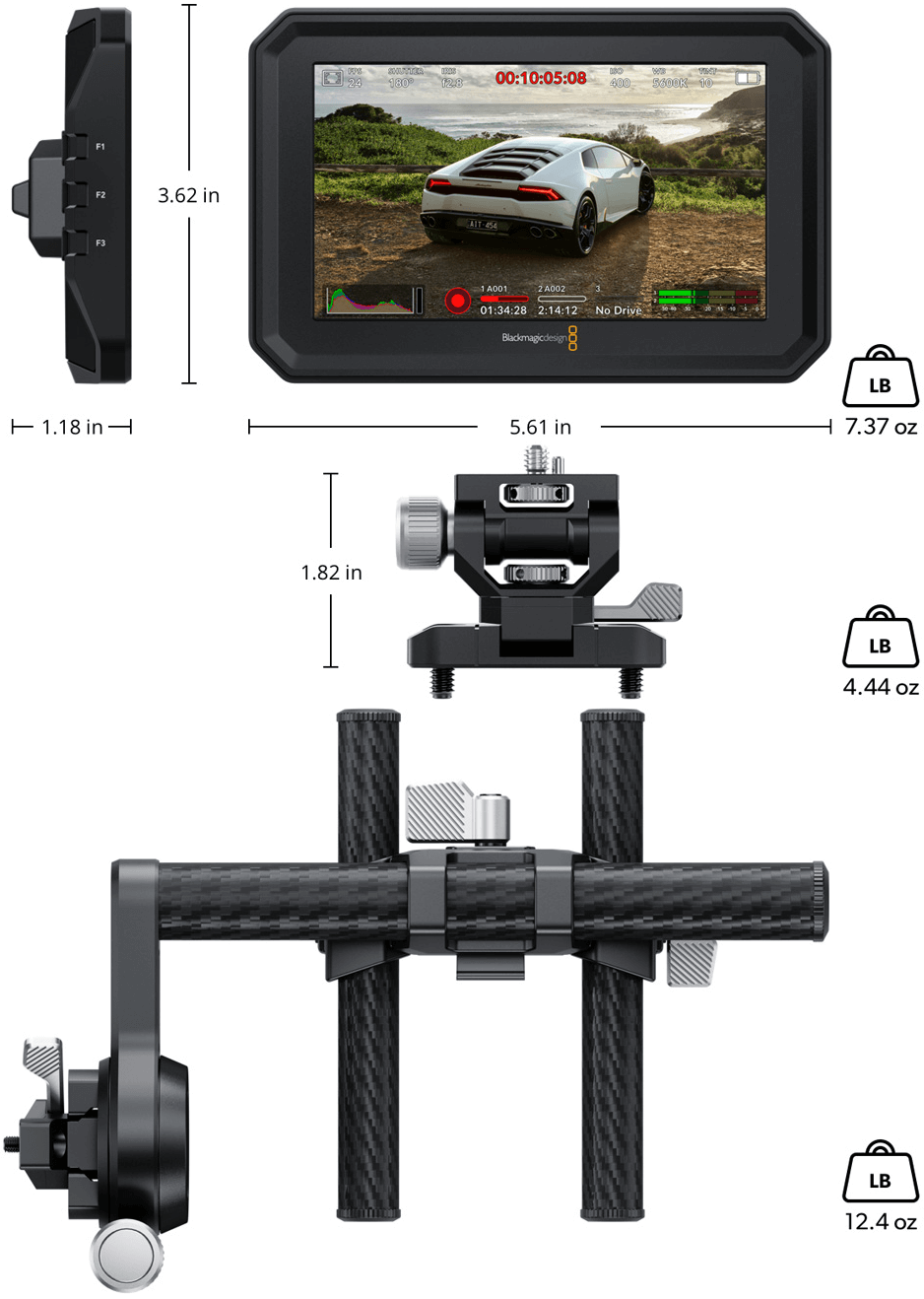

Designed for professional reliability, the PYXIS Monitor EVF Kit operates from 0°C to 40°C at up to 90% non‑condensing humidity, drawing power entirely over USB‑C. Included are the monitor, clip‑on sunshade, swivel and fixed mounts with screws, dovetail shoe, URSA Cine EVF bracket and rotating mount with carbon fiber rods, two USB‑C cables of varying lengths, a welcome wallet with software download QR code, and a one‑year limited warranty—delivering a turnkey HDR monitoring and control solution.
