Blackmagic PYXIS 12K (EF Mount)

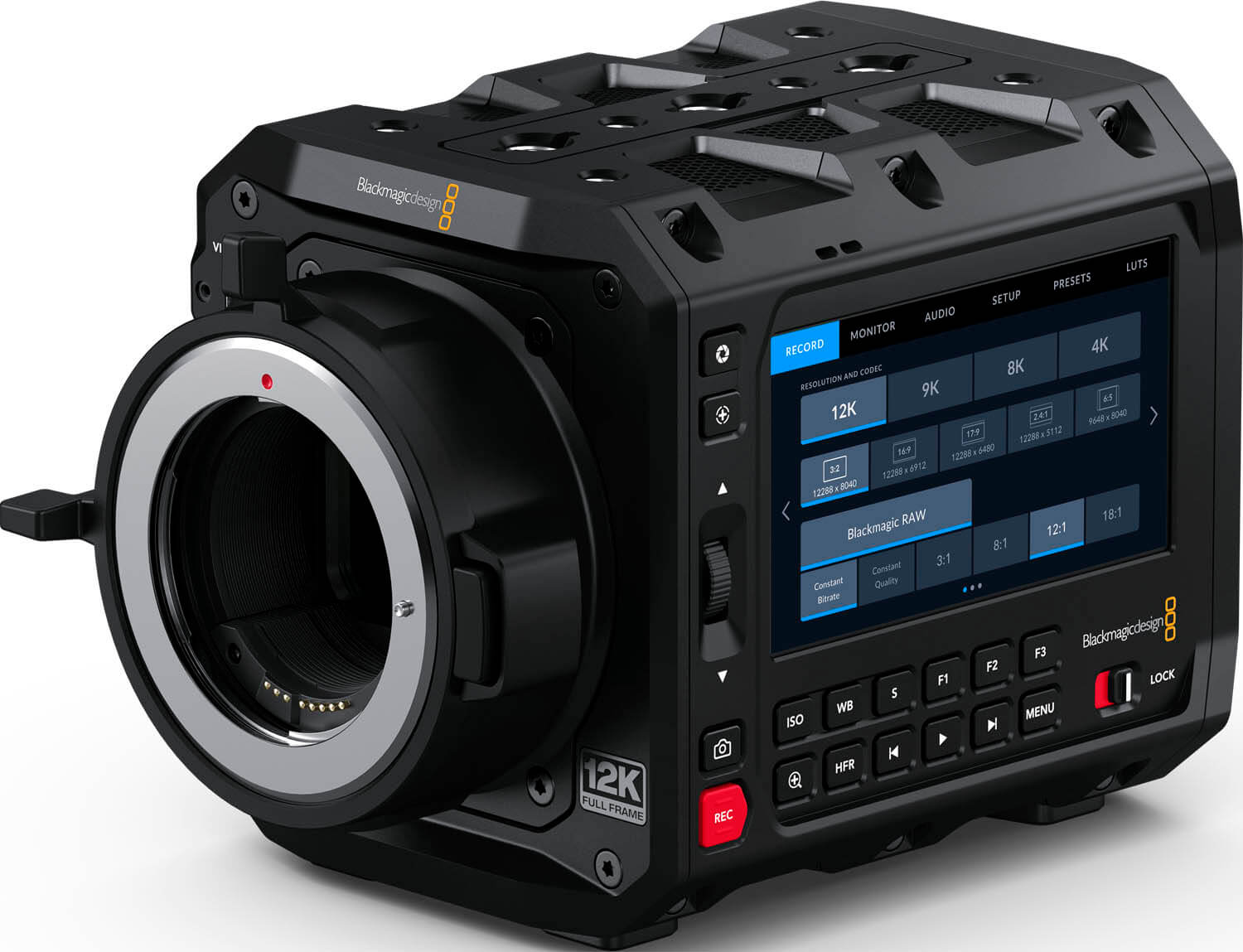

The Blackmagic Design PYXIS 12K EF is a revolutionary large‑format digital film camera that redefines cinematic capture. At its heart lies a massive 36 × 24 mm full‑frame RGBW sensor capable of native 12,288 x 8,040 resolution, delivering unparalleled image fidelity and ultra‑wide dynamic range. The rugged, modular box design offers a locking Canon EF lens mount, making it compatible with an extensive array of cine and stills optics for maximum creative flexibility.
Boasting a staggering 16‑stop dynamic range and dual‑native ISO sensitivity up to 25,600, the PYXIS 12K EF excels in the most challenging lighting conditions. Whether shooting sunlit exteriors or dim interiors, you’ll preserve highlight and shadow detail with minimal noise. An open‑gate mode supports anamorphic and open‑gate aspect ratios, while a Super 35 window lets you instantly switch to a tight close‑up framing without sacrificing quality.
Recording internals include Blackmagic RAW for full‑fidelity masters and H.264 proxy files for rapid sharing and editing. Frame rates range from standard HD up through 12K at 40 fps, 12K 2.4:1 at 60 fps, and high‑speed 8K at up to 112 fps—all selectable via a dedicated HFR button. Dual CFexpress Type‑B card slots plus a USB‑C expansion port ensure uninterrupted capture and flexible media workflows, while metadata tagging streamlines post‑production.

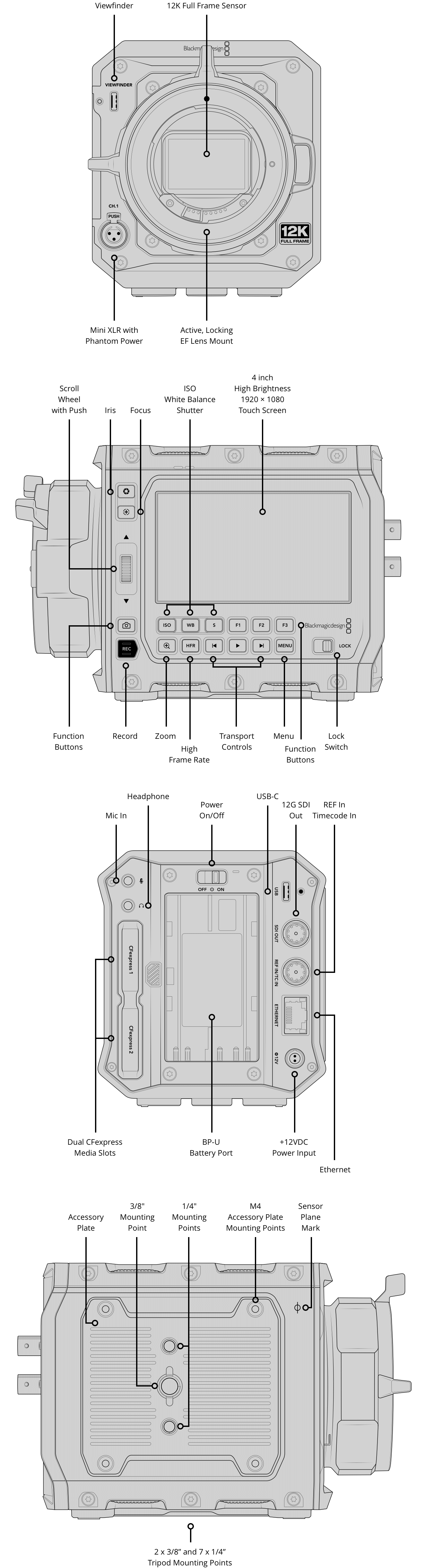

Onboard monitoring and control are equally impressive. A 4" HDR‑capable LCD touchscreen rated at 1,500 nits delivers crisp framing, focus peaking, zebras, and 3D LUT overlays, even in direct sunlight. Three customizable function buttons and a scroll wheel give one‑touch access to key settings like iris, shutter, ISO, and white balance. The robust aluminum chassis includes multiple ¼"‑20 and 3/8"‑16 threads for mounting handles, grips, or external recorders.
Connectivity is comprehensive: 12G‑SDI output feeds secondary monitors, a locking USB‑C port handles viewfinder, power, and camera control, while a mini XLR input with 48V phantom power and a headphone jack deliver professional‑grade audio. A 10 GbE RJ45 port supports direct proxy upload or live SRT/RTMP streaming, and Bluetooth control and timecode/reference BNC inputs round out the facility integration.
Designed for the demands of modern production, the Blackmagic PYXIS 12K EF runs on Sony BP‑U‑series batteries or 12V DC power and operates in temperatures from 0°C to 40°C at up to 90% non‑condensing humidity. Backed by a one‑year limited manufacturer’s warranty, it ships with DaVinci Resolve Studio activation, power supply, caps, mounting plates, and a welcome wallet for software downloads—everything you need for next‑generation 12K cinematography.
